| Year | Make | Model | Engine |
|---|---|---|---|
| 2005-2009 | Ford | F-350 | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2011-2016 | Ford | F-350 | 6.2L 6200CC 378Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2005-2010 | Ford | F-350 Super Duty | 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2005-2007 | Ford | F-350 Super Duty | 6.0L 363Cu. In. V8 DIESEL OHV Turbocharged |
| 2011-2016 | Ford | F-350 Super Duty | 6.2L 6210CC 379Cu. In. V8 FLEX SOHC Naturally Aspirated |
| 2010 | Ford | F-350 Super Duty | 6.2L 6210CC 379Cu. In. V8 GAS SOHC Naturally Aspirated |
| 2008-2010 | Ford | F-350 Super Duty | 6.4L 391Cu. In. V8 DIESEL OHV Turbocharged |
| 2011-2016 | Ford | F-350 Super Duty | 6.7L 6651CC 406Cu. In. V8 DIESEL OHV Turbocharged |
| 2005-2010 | Ford | F-350 Super Duty | 6.8L 415Cu. In. V10 GAS SOHC Naturally Aspirated |
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| RS55043 | 2-3" Lift | Front | Shock Absorber | 2 |
| RS55047 | 2-3" Lift | Rear | Shock Absorber | 2 |
Rancho RS5000X Gas Shocks Set w/2-3" lift - 2005-2016 Ford F-350 Super Duty 4WD w/Single Rear Wheels 2-3" Rear
Rancho RS5000X Gas Shocks Set w/2-3" lift - 2005-2016 Ford F-350 Super Duty 4WD w/Single Rear Wheels 2-3" Rear
SKU:10558027464991_52728264392991
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| RS55043 | 2-3" Lift | Front | Shock Absorber | 2 |
| RS55047 | 2-3" Lift | Rear | Shock Absorber | 2 |

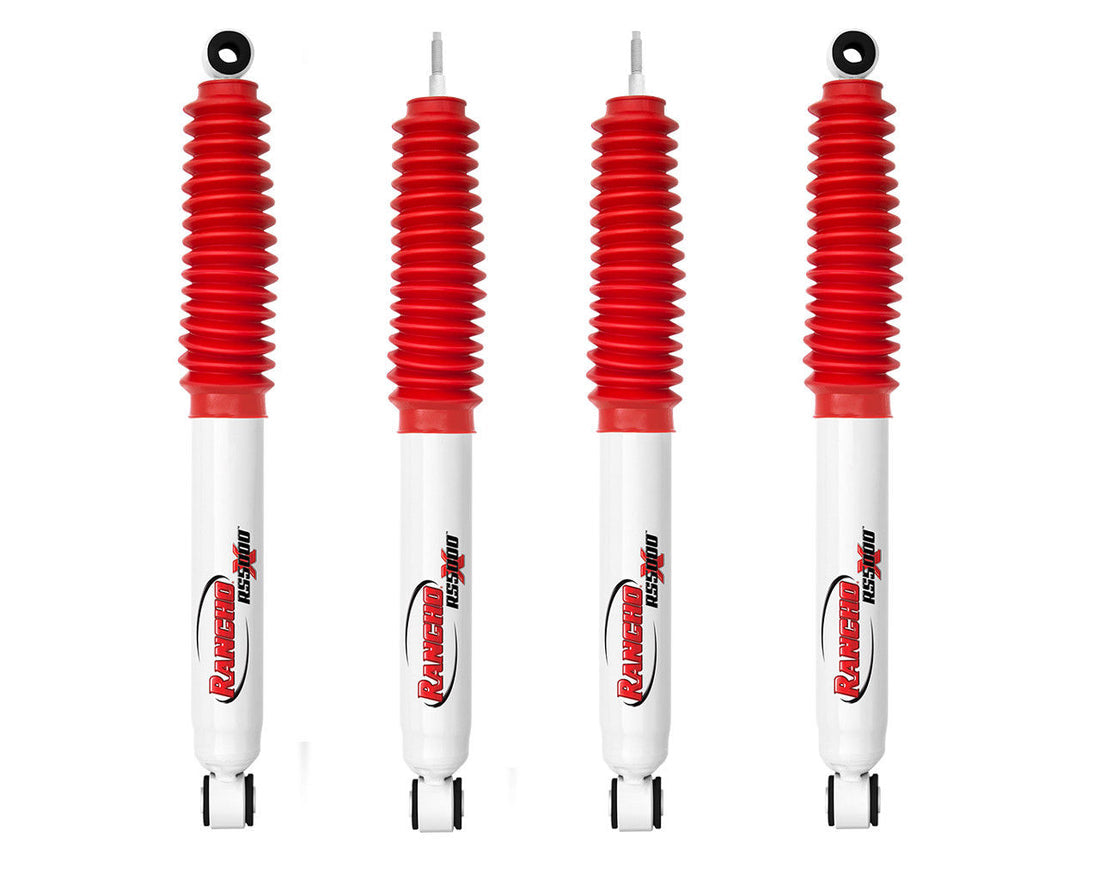

The Rancho RS5000X Gas Shocks Set is a high-performance suspension component designed for 2005-2016 Ford F-350 Super Duty 4WD trucks with a 2-3 inch lift. This set includes four twin-tube gas pressurized shocks, each featuring a 2-1/4-inch diameter shock body for increased fluid capacity and cooler operation across varying terrains. The shocks incorporate patented progressive rebound and compression discs, along with advanced rebound valving and a self-lubricating, low-friction seal. Gas pressurization to 150 PSI enhances vehicle control, reduces shock fade, and provides a mild spring rate boost, resulting in improved handling and ride quality both on and off-road. The shocks are built to withstand all-weather conditions, operating efficiently between -40 and 248 degrees Fahrenheit, and are engineered to minimize harsh impacts through progressive engagement valving.
Designed specifically for 2005-2016 Ford F-350 Super Duty 4WD trucks with single rear wheels and a 2-3 inch lift, this product is compatible with vehicles equipped with Rancho RS6525B or RS6510 systems, excluding chassis cabs. It is a bolt-on, direct replacement upgrade that reuses factory hardware, including washers, bushings, and nuts, for straightforward installation. The kit contains four shocks and four shock boots, providing front and rear suspension upgrades to enhance off-road capability and daily driving comfort. Suitable for use in off-road, trail, and demanding driving conditions, these shocks are ideal for owners seeking reliable performance and durability in their suspension system.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| RS55043 | 2-3" Lift | Front | Shock Absorber | 2 |
| RS55047 | 2-3" Lift | Rear | Shock Absorber | 2 |
Share
Overview
Overview
The Rancho RS5000X Gas Shocks Set is a high-performance suspension component designed for 2005-2016 Ford F-350 Super Duty 4WD trucks with a 2-3 inch lift. This set includes four twin-tube gas pressurized shocks, each featuring a 2-1/4-inch diameter shock body for increased fluid capacity and cooler operation across varying terrains. The shocks incorporate patented progressive rebound and compression discs, along with advanced rebound valving and a self-lubricating, low-friction seal. Gas pressurization to 150 PSI enhances vehicle control, reduces shock fade, and provides a mild spring rate boost, resulting in improved handling and ride quality both on and off-road. The shocks are built to withstand all-weather conditions, operating efficiently between -40 and 248 degrees Fahrenheit, and are engineered to minimize harsh impacts through progressive engagement valving.
Designed specifically for 2005-2016 Ford F-350 Super Duty 4WD trucks with single rear wheels and a 2-3 inch lift, this product is compatible with vehicles equipped with Rancho RS6525B or RS6510 systems, excluding chassis cabs. It is a bolt-on, direct replacement upgrade that reuses factory hardware, including washers, bushings, and nuts, for straightforward installation. The kit contains four shocks and four shock boots, providing front and rear suspension upgrades to enhance off-road capability and daily driving comfort. Suitable for use in off-road, trail, and demanding driving conditions, these shocks are ideal for owners seeking reliable performance and durability in their suspension system.
