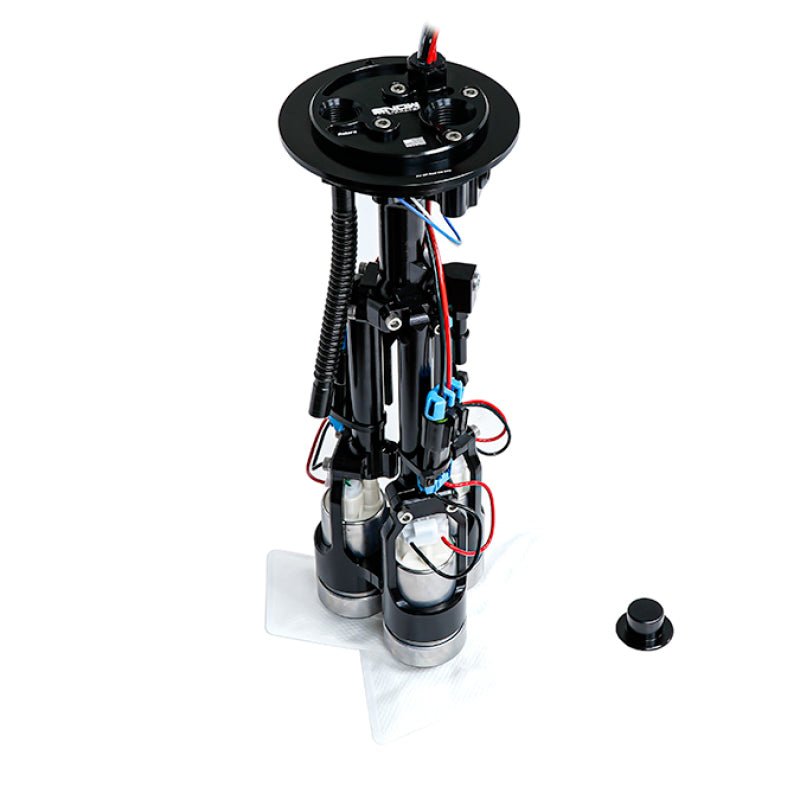

Snow Performance 03-13 Chevrolet Corvette High Output Version Fuel Hat (3 Pump 1-274 & 2-285)
Snow Performance 03-13 Chevrolet Corvette High Output Version Fuel Hat (3 Pump 1-274 & 2-285)
SKU:SNF-52100H
In stock
Regular price
$1,195.43 USD
Regular price
$1,673.60 USD
Sale price
$1,195.43 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The Snow Performance High Output Fuel Hat for Chevrolet Corvettes (2003-2013) is a configurable fuel pump assembly designed to meet high fuel demands. It features genuine TI Automotive (Walbro) fuel pumps available in flow rates of 450LPH or 470LPH, ensuring OE reliability and durability. This setup is intended for return-style fuel systems only and is compatible with 100% gasoline, ethanol, or blends such as E10, E85, and E98. The fuel hat supports multiple configurations, including two or three pump setups, allowing for tailored performance upgrades. The system is optimized for high horsepower applications, supporting over 1000+ rwhp on E85 and up to 2000+ rwhp on gasoline, with options for street or max effort racing.
Designed specifically for Chevrolet Corvettes from 2003 to 2013, this high output fuel hat is a direct replacement for stock fuel systems, providing increased flow and reliability. It is suitable for vehicles with return-style fuel setups and is ideal for high-performance street or racing use. The kit supports various configurations, including a 2-pump setup supporting over 1300+ rwhp and a 3-pump race configuration supporting over 2100+ rwhp. Proper installation requires a return-style fuel system, and it is recommended to use compatible pressure switches and relay modules for activation. This product enhances fuel delivery capacity, ensuring consistent performance under demanding conditions.
Share
Overview
Overview
To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the ?Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.
