| Year | Make | Model |
|---|---|---|
| 1997 - 2013 | Chevrolet | Corvette |
1
/
of
2
Snow Performance 03-13 Chevrolet Corvette Race Version Fuel Hat (3 Pump 3-285)
Snow Performance 03-13 Chevrolet Corvette Race Version Fuel Hat (3 Pump 3-285)
SKU:SNF-52100R
In stock
Regular price
$1,212.75 USD
Regular price
$1,697.85 USD
Sale price
$1,212.75 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments

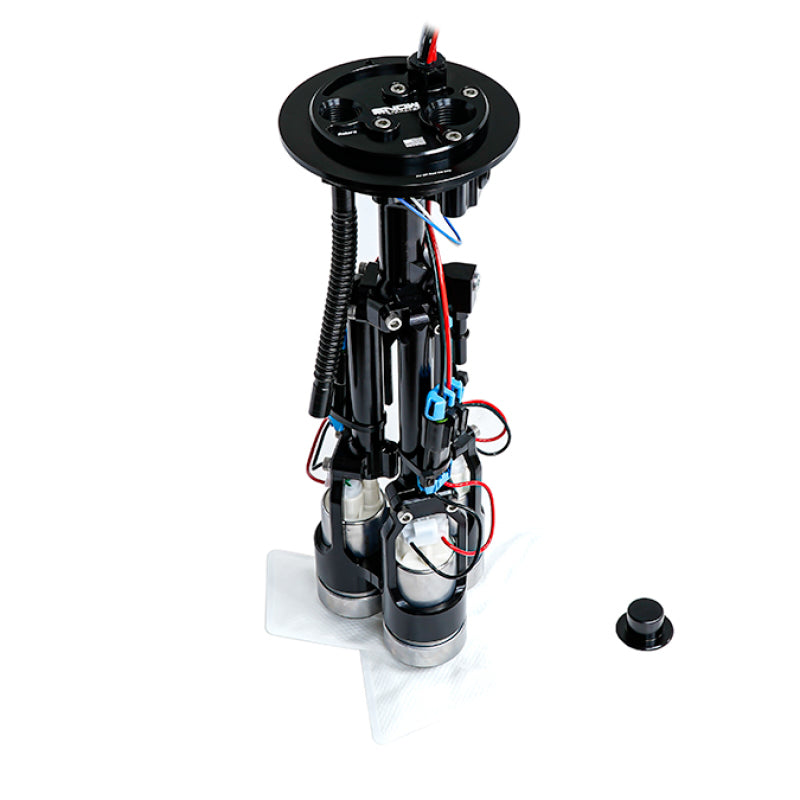

The Snow Performance Race Version Fuel Hat is a high-performance fuel pump assembly designed for Chevrolet Corvettes from 2003 to 2013. It features configurable options with either two or three genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH. Built for return-style installations, this fuel hat ensures OE reliability and durability, supporting high horsepower applications. It is compatible with 100% gasoline, ethanol, or blends such as E10, E85, and E98, but not suitable for methanol. The system allows for flexible configurations, including a 2-pump street setup supporting over 1000 rwhp on E85, a 3-pump street setup supporting over 1500 rwhp, and a 3-pump race setup capable of supporting more than 1600 rwhp, with reduced current draw for efficiency.
Designed specifically for Chevrolet Corvettes between 2003 and 2013, this fuel hat is intended for high-performance street and racing applications. It is a direct replacement for factory fuel systems, supporting return-style fuel delivery. The kit is ideal for vehicles requiring increased fuel flow for boosted or high-horsepower setups, with configurations supporting up to 2100 rwhp on gasoline. Proper installation requires a return-style fuel system, and it is recommended to use compatible pressure switches and relay modules for multi-pump activation. This product provides a reliable, high-capacity fuel delivery solution for serious street and race vehicles.
Share
Overview
Overview
To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the ?Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.
