Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump

Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump

SNF-52700H

In stock

$1,195.43 USD
$1,673.60 USD $1,195.43 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

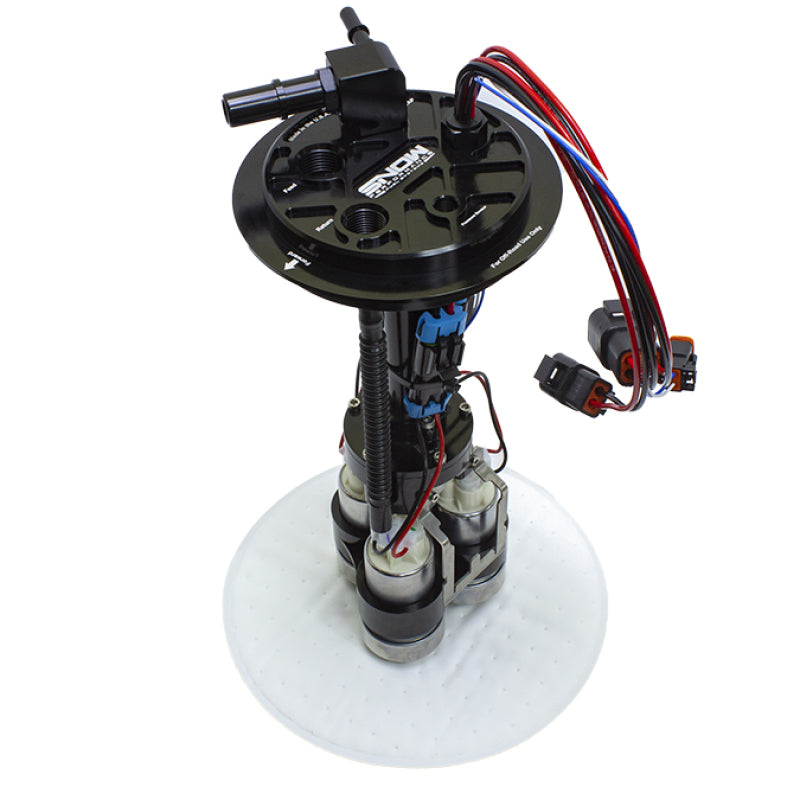

The Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump is a high-performance fuel delivery upgrade designed for GM half-ton trucks from 2005 to 2018. Constructed from CNC-machined 6061 billet aluminum with a black anodized finish, this fuel hat features a billet aluminum manifold with CNC passages that streamline fuel flow and eliminate the need for T-fittings, hoses, and clamps. It securely holds genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH, providing reliable, high-output fuel delivery. The assembly includes Viton chemical-resistant O-rings for a leak-free fit and is compatible with E85 and other harsh fuels, making it suitable for demanding performance applications. Designed to replace the factory fuel hat, it retains factory features such as the fuel level sender, EVAP system, and filler neck, offering a straightforward upgrade for increased fuel capacity and reliability.

This fuel hat is intended for use on GM half-ton trucks from 2005 to 2018, fitting various models with return-style fuel systems. It is compatible with gasoline, ethanol blends (E10, E85, E98), but not with methanol. The assembly features female 10AN ORB feed and 8AN ORB return ports, with optional 90-degree swivel adapters sold separately for line routing customization. Suitable for street, track, or off-road use, this bolt-on upgrade provides a durable, corrosion-resistant solution for high fuel demands. It is designed for easy installation as a direct replacement of the factory unit, supporting configurations with two or three pumps to meet specific performance needs.

Overview

Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH).These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol.
