Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump - Race

Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump - Race

SNF-52700R

In stock

$1,212.75 USD
$1,697.85 USD $1,212.75 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

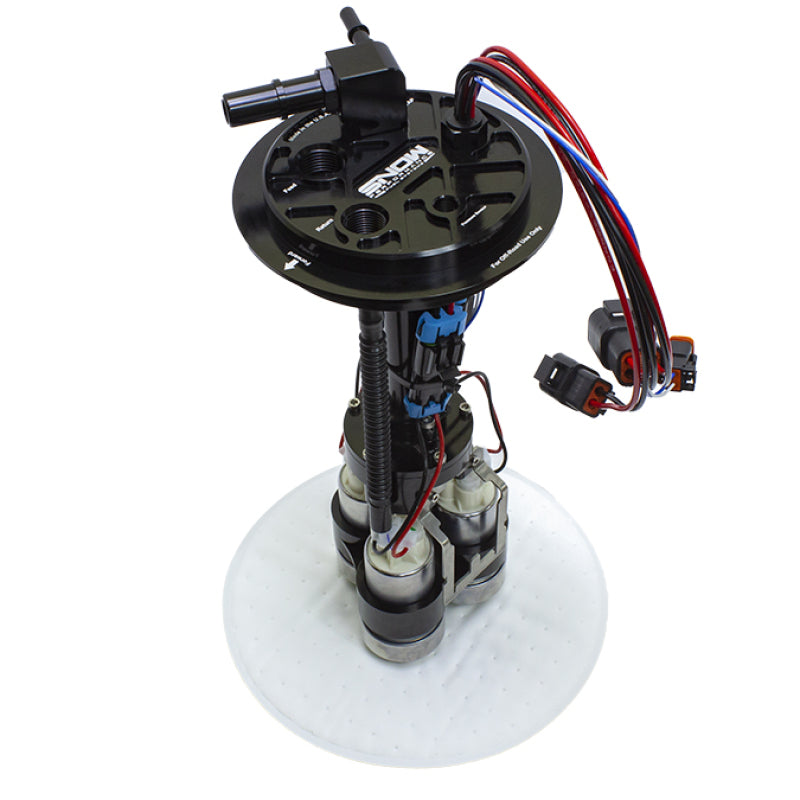

The Snow Performance 05-18 GM Half Ton Truck Fuel Hat - Triple Pump - Race is a high-performance fuel delivery upgrade designed for GM half-ton trucks from 2005 to 2018. Constructed from 6061 billet aluminum with a black anodized finish, this fuel hat features a CNC machined manifold with passages that eliminate the need for T-fittings, hoses, and clamps, reducing potential leak points and deterioration. It securely holds genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH, and is compatible with E85, ethanol blends, and gasoline. Engineered for durability and reliability, the assembly guarantees a leak-free fit with Viton chemical-resistant O-rings and is built in the USA.

Designed as a direct replacement for factory fuel hats, this assembly fits 2005-2018 GM half-ton trucks with factory fuel tanks, including those with saddle-style tanks and transfer pump functionality. It retains factory features such as the fuel level sending unit, EVAP system, and filler neck. The kit supports a configurable setup with two or three pumps and features female 10AN ORB feed and 8AN ORB return ports, with optional 90-degree swivel adapters sold separately. Intended for return-style fuel systems, it is ideal for high-performance street and track applications requiring reliable, high-volume fuel delivery.

Overview

Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH).These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol.

View full details
