Snow Performance 15-21 Ford F150 Truck Xtreme Version Fuel Hat (3 Pump 3-295)

Snow Performance 15-21 Ford F150 Truck Xtreme Version Fuel Hat (3 Pump 3-295)

SNF-52800X

In stock

$1,412.75 USD
$1,977.85 USD $1,412.75 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

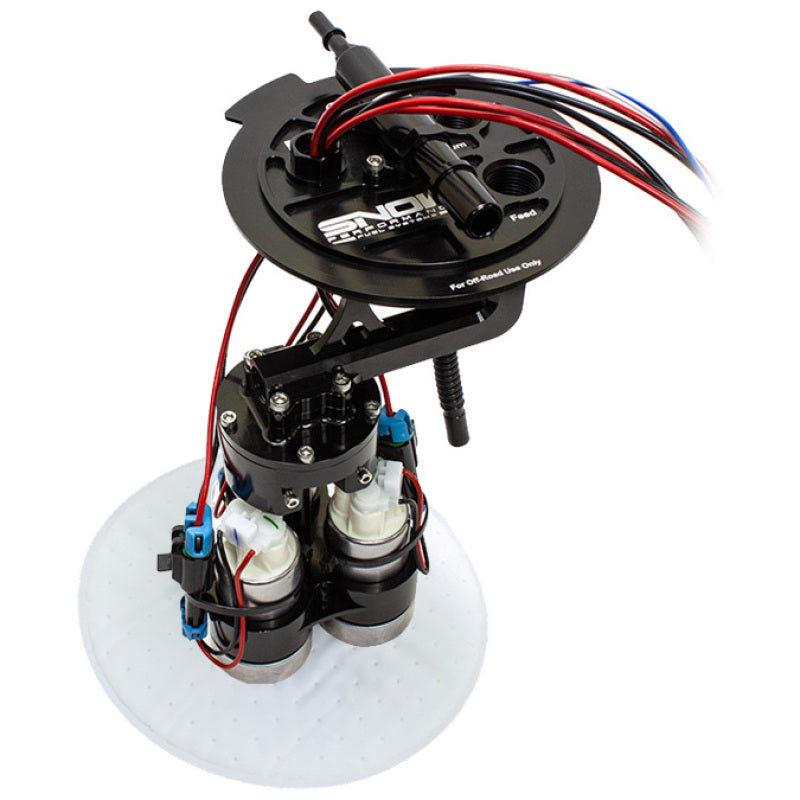

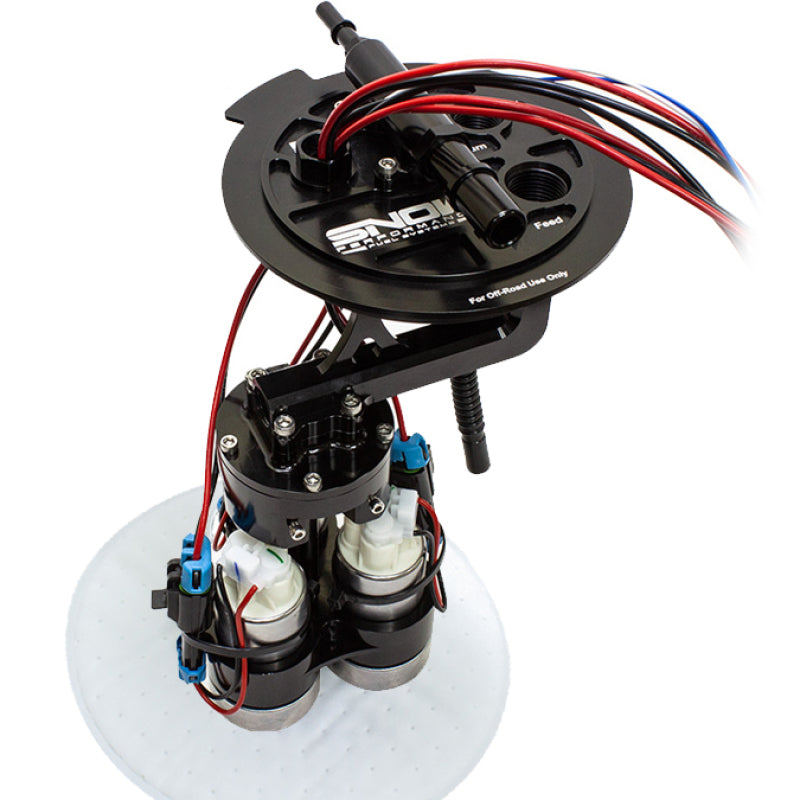

The Snow Performance 15-21 Ford F150 Truck Xtreme Version Fuel Hat is a high-performance fuel pump assembly designed for demanding applications. It features configurable options with 2 or 3 genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH, ensuring OE reliability and durability. Built for return-style installations, these pumps are compatible with 100% gasoline, ethanol, or blends such as E10, E85, and E98, but are not suitable for methanol. The system supports multiple pump configurations, including a 2-pump street setup capable of supporting over 1000+ rwhp on E85 and 1300+ on gasoline, a 3-pump street setup supporting over 1500+ rwhp on E85 and up to 2000+ on gasoline, and a race configuration with three 470LPH pumps supporting over 1600+ rwhp on E85 and 2100+ on gasoline. These assemblies are engineered for high horsepower and performance reliability.

Designed for 2015-2021 Ford F150 trucks, this fuel hat is suitable for vehicles with return-style fuel systems. It is ideal for street, high-performance, and racing applications where precise fuel delivery and reliability are critical. Installation involves replacing the existing fuel hat with this configurable assembly, which includes the necessary pumps and fittings for a direct upgrade. Compatibility notes specify that it should not be used in returnless systems, and it is compatible with various fuel blends, making it versatile for different fueling needs. This product enhances fuel capacity and flow, supporting high horsepower builds and aggressive tuning setups.

Overview

To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the ?Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.
