Snow Performance 2011+ Jeep Grand Cherokee Fuel Hat Race Version (3 Pump 3-285)
Snow Performance 2011+ Jeep Grand Cherokee Fuel Hat Race Version (3 Pump 3-285)
SKU:SNF-52450R
In stock
Regular price
$1,212.75 USD
Regular price
$1,697.85 USD
Sale price
$1,212.75 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments

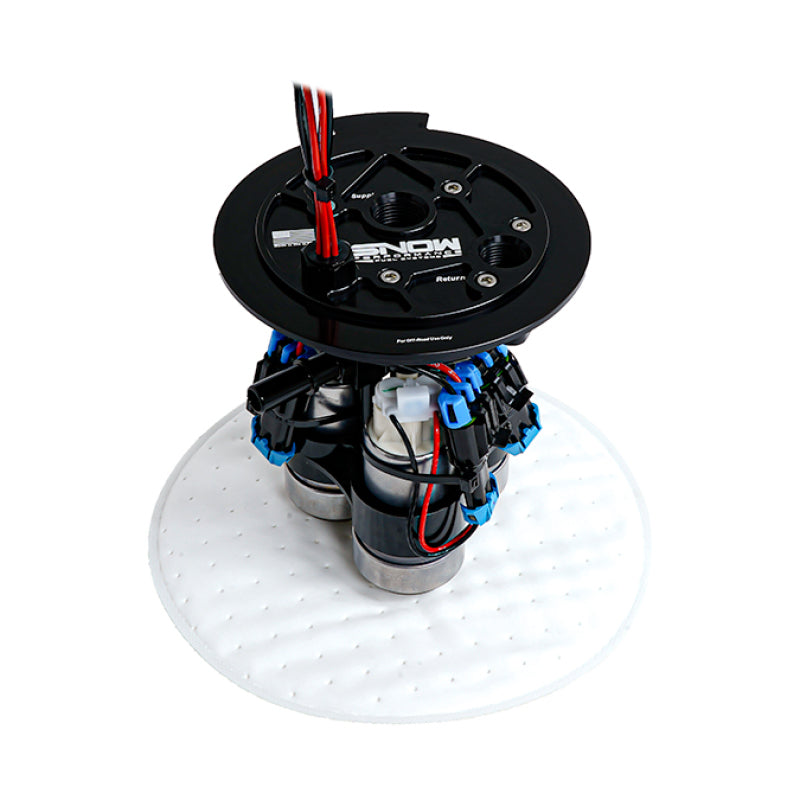

The Snow Performance Fuel Hat Race Version is a high-performance fuel pump assembly designed for 2011+ Jeep Grand Cherokee models. It features a configurable setup with either two or three genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH. Built for return-style installations, this system ensures OE reliability and is compatible with 100% gasoline, ethanol, or blends such as E10, E85, and E98, but not methanol. The kit supports high horsepower applications, with configurations capable of supporting over 1000+ rwhp on E85 and up to 2100+ rwhp on gasoline, depending on the pump setup. It is engineered for maximum flow and durability, making it suitable for demanding performance needs.
Designed for 2011 and newer Jeep Grand Cherokee vehicles, this fuel hat is intended for use in high-performance street and racing applications. It is compatible with return-style fuel systems and requires proper installation for optimal operation. The system can be configured with a combination of smaller and larger pumps to optimize efficiency and heat management during street driving and boost conditions. The kit includes the necessary pump assemblies and is ideal for enthusiasts seeking reliable, high-flow fuel delivery for boosted engines. Proper use of a boost-activated pressure switch and relay module can enhance performance, supporting a wide range of high horsepower builds.
Share
Overview
Overview
To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the ?Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.
