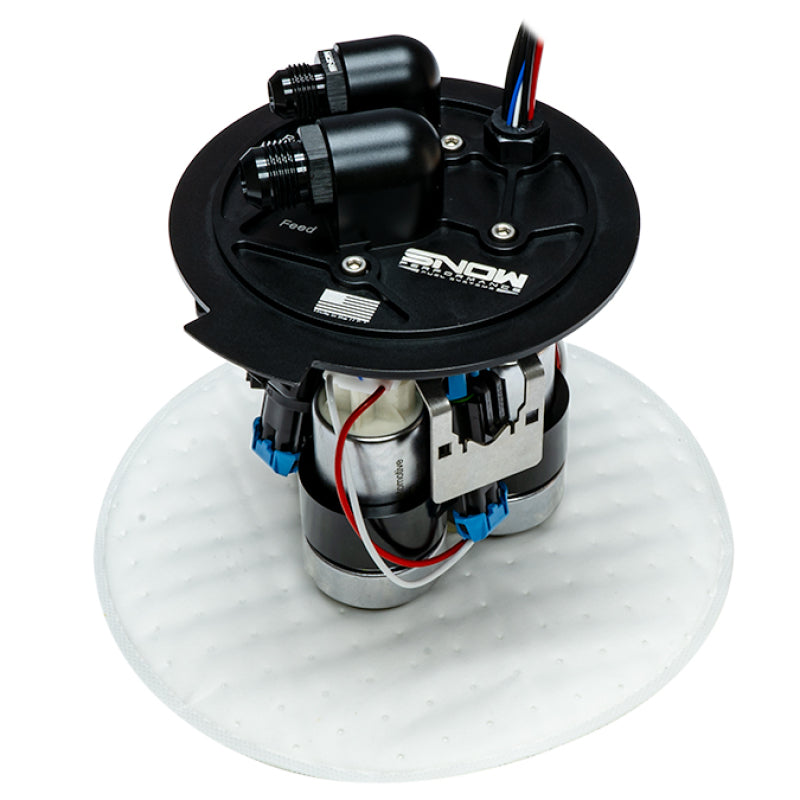

Snow Performance Chevrolet Camaro 5th Gen/Cadillac CTS-V 2nd Gen High Output Fuel Hat (3 Pump)

Snow Performance Chevrolet Camaro 5th Gen/Cadillac CTS-V 2nd Gen High Output Fuel Hat (3 Pump)

SNF-52200H

In stock

$1,195.43 USD
$1,673.60 USD $1,195.43 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Snow Performance Chevrolet Camaro 5th Gen and Cadillac CTS-V 2nd Gen High Output Fuel Hat is a high-capacity fuel pump assembly designed to support demanding performance applications. It features configurable options with either two or three genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH. Built for return-style installations, these pumps provide OE reliability and are compatible with 100% gasoline, ethanol, or blends such as E10, E85, and E98, but are not suitable for methanol. The system allows for flexible configurations, including a 2-pump street setup supporting over 1000+ rwhp on E85 and 1300+ on gasoline, a 3-pump street setup supporting over 1500+ rwhp on E85 and up to 2000+ on gasoline, and a race configuration with three 470LPH pumps supporting over 1600+ rwhp on E85 and 2100+ on gasoline. These assemblies are engineered for high performance and durability, ensuring consistent fuel delivery under demanding conditions.

Designed specifically for 2010–2015 Chevrolet Camaro 5th Gen and Cadillac CTS-V 2nd Gen models, this fuel hat is intended for return-style fuel systems only. It is ideal for high-horsepower street, track, or racing applications where reliable fuel delivery is critical. The kit supports multiple pump configurations, allowing users to tailor their setup for street or maximum effort racing. Installation involves replacing the existing fuel hat with this high-output assembly, which includes the necessary pumps and fittings. Compatibility with various fuel types and the ability to activate larger pumps during boost make this product a versatile upgrade for serious performance enthusiasts seeking OE quality and maximum flow capacity.

Overview

To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the ?Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.
