Snow Performance Chevrolet Camaro 5th Gen/Cadillac CTS-V 2nd Gen Standard Version Fuel Hat (2 Pump)

Snow Performance Chevrolet Camaro 5th Gen/Cadillac CTS-V 2nd Gen Standard Version Fuel Hat (2 Pump)

SNF-52200

In stock

$981.75 USD
$1,374.45 USD $981.75 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

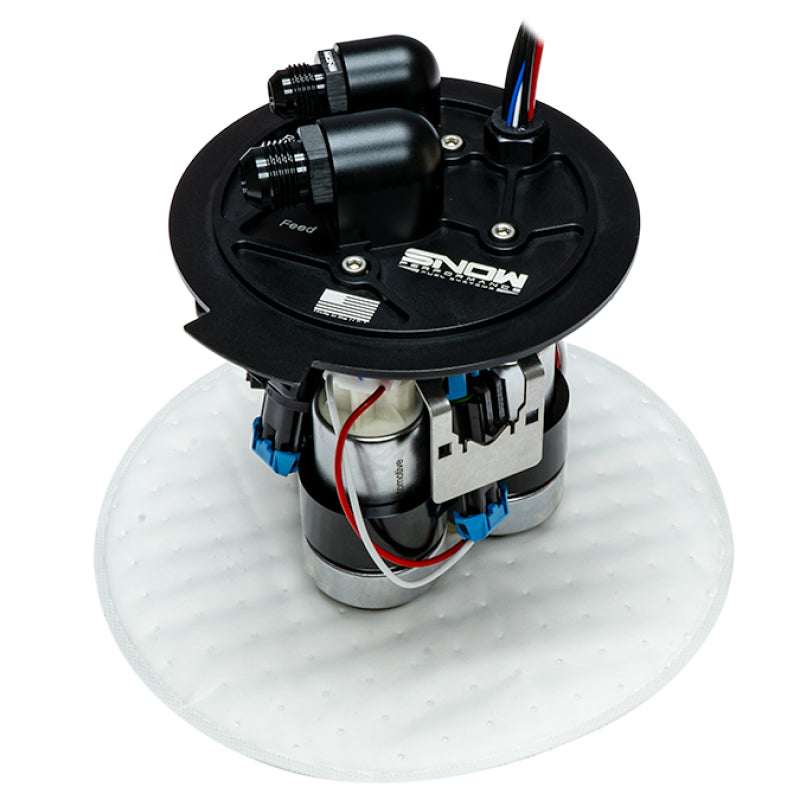

The Snow Performance Chevrolet Camaro 5th Gen and Cadillac CTS-V 2nd Gen Standard Version Fuel Hat is a high-performance fuel pump assembly designed to meet demanding fuel delivery requirements. It features configurable options with 2 or 3 genuine TI Automotive (Walbro) fuel pumps, available in flow rates of 450LPH or 470LPH. Built for return-style installations, these pumps provide OE reliability and are compatible with 100% gasoline, ethanol, or blends such as E10, E85, and E98, but are not suitable for methanol. The system allows for flexible configurations, including supporting over 1000 horsepower on E85 and up to 2000 horsepower on gasoline when using multiple pumps. The design emphasizes durability and efficiency, supporting high horsepower applications with proven quality components.

This fuel hat is specifically designed for 2010–2015 Chevrolet Camaro 5th Gen and 2009–2015 Cadillac CTS-V 2nd Gen models, ensuring a precise fit for these vehicles. It is intended for use in street-driven applications, supporting high-performance setups with multiple pump configurations. The kit is compatible with return-style fuel systems and requires proper installation for optimal operation. The available configurations include a 2-pump setup supporting over 1300 rwhp on gasoline, a 3-pump setup supporting over 2000 rwhp, and a race configuration with three pumps supporting over 2100 rwhp. This product is ideal for enthusiasts seeking reliable, high-flow fuel delivery for street or track use.

Overview

To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the ?Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.

View full details
