Snow Universal 15-20 Gal 9.72in Tank Depth Multi Pump Fuel Hat - Dual Pump
Snow Universal 15-20 Gal 9.72in Tank Depth Multi Pump Fuel Hat - Dual Pump
SKU:SNF-52910
In stock
Couldn't load pickup availability

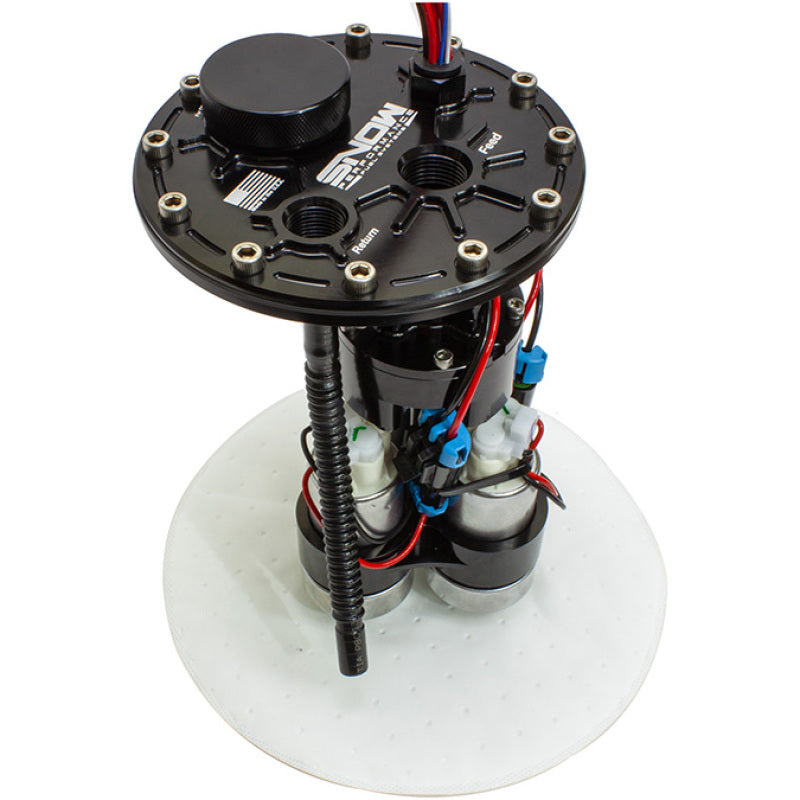

The Snow Performance Universal Multi-Pump Fuel Hat is a high-performance fuel delivery upgrade designed for vehicles requiring 15-20 gallon tanks with a 9.72-inch depth. Constructed from CNC-machined 6061 billet aluminum with a black anodized finish, this assembly features a billet aluminum manifold with passages that eliminate the need for T-fittings, hoses, and clamps. It securely holds genuine TI Automotive (Walbro) fuel pumps with flow rates of 450LPH or 470LPH, offering OE reliability and compatibility with E85 and other harsh fuels. The design includes Viton chemical-resistant O-rings for a leak-free fit, making it a durable, corrosion-resistant solution for high-output fuel systems.
This fuel hat replaces the factory unit and retains essential features such as the OE fuel level sending unit, EVAP system, filler neck, and fuel transfer pump functionality in saddle tanks. Compatible with return-style fuel systems, it features female 10AN ORB feed and 8AN ORB return ports, with optional 90-degree swivel adapters sold separately. Suitable for vehicles with a return-style fuel system, it is ideal for performance applications including street, track, and racing setups. Installation involves replacing the factory fuel hat with a direct bolt-on upgrade, with configurations available for 2 or 3 pump setups to meet specific fuel demands.
Share
Overview
Overview
Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH).These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol.
