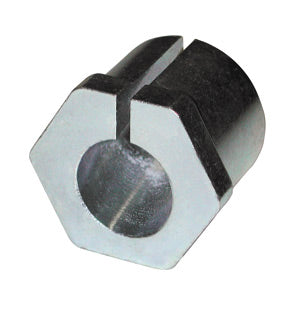

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23199

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23199

23199

In stock

$10.24 USD
$12.68 USD $10.24 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPC Performance Specialty Camber/Caster Adjustment Sleeve Kit 23199 is a high-quality suspension component designed to fine-tune camber and caster angles on various Ford and Mazda 2/4WD trucks. Constructed from durable materials, these sleeves allow for precise alignment adjustments to improve handling, stability, and tire wear. The kit includes a factory-style front upper camber/caster adjustment sleeve, enabling straightforward installation and reliable performance. Its design ensures compatibility with factory suspension components, making it an effective upgrade for enthusiasts seeking improved suspension geometry.

This adjustment sleeve kit is suitable for a wide range of Ford and Mazda trucks, with specific fitment for models requiring front upper camber and caster modifications. Installation involves loosening and removing the upper ball joint pinch bolt, removing any top snap ring, and using a sleeve puller such as 77880 or 88830 for removal. Ideal for street, performance, or off-road applications, this kit allows for easy, bolt-on adjustments to optimize vehicle alignment. It provides a cost-effective solution for suspension tuning and alignment correction on compatible trucks.

Overview

Part Numbers & Details
Specifications
Part Number Lift/Lowered Position Item Quantity
23199 Factory Front Upper Camber/Caster Adjustment Sleeve 1

23199 - 0° CAMBER/CASTER SLEEVE

---------------------------------------------------------------------------
These popular sleeves are widely used to adjust caster and/or camber on many Ford and Mazda 2/4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks. Series     2WD Adjust        4WD Adjust Part #     Total Change     Total Change 23181 .25 degree        .20 degree 23182 .50 degree        .40 degree 23183 .75 degree        .60 degree 23184 1.00 degree      .75 degree 23185 1.25 degree      .90 degree 23186 1.50 degree      1.10 degree 23187 1.75 degree      1.25 degree 23188 2.00 degree      1.40 degree 23189 2.25 degree      1.60 degree 23190 2.50 degree      1.80 degree 23191 2.75 degree      2.00 degree 23192 3.00 degree      2.25 degree 23193 3.25 degree      2.50 degree 23194 3.50 degree      2.75 degree 23199     0.00 degree To save time during alignment, use the 23199 zero sleeve to determine initial readings. Adjustment range: Cam./Cas. ±.25 degree to ±3.50 degree Installation time: .5 hr/side Required: 1 per wheel Recommended Tools 77880 - Sleeve Puller, 88830 - Sleeve Puller, 87175 - Special Socket ________________________ Check out our installation video for this part
