• Specialty SPC Camber/Caster Adjustment Sleeve Kit 23184
1 1

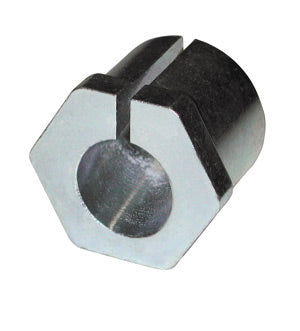

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23184

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23184

23184

In stock

$8.43 USD
$10.44 USD $8.43 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPC Performance 23184 Camber/Caster Adjustment Sleeve Kit is a high-quality upgrade designed to fine-tune alignment angles on various Ford and Mazda 2WD and 4WD trucks. Constructed from durable materials, these sleeves allow for precise camber and caster adjustments, improving handling, tire wear, and overall vehicle stability. The kit includes a factory-style front upper camber/caster adjustment sleeve, which simplifies alignment modifications. Its straightforward installation process involves loosening the upper ball joint pinch bolt and removing the top snap ring if present, making it suitable for both professional and DIY enthusiasts seeking reliable suspension tuning components.

This adjustment sleeve kit is compatible with a wide range of Ford and Mazda trucks, primarily targeting models with specific front suspension configurations. It is ideal for street driving, performance tuning, or off-road applications where precise alignment is critical. Designed as a direct replacement for factory components, the kit ensures a secure fit and long-lasting performance. The included sleeves enable users to achieve optimal camber and caster settings, enhancing vehicle handling and tire longevity during everyday driving or spirited performance use.

Overview

Part Numbers & Details
Specifications
Part Number Lift/Lowered Position Item Quantity
23184 Factory Front Upper Camber/Caster Adjustment Sleeve 1

23184 - 1° CAMBER/CASTER SLEEVE

---------------------------------------------------------------------------
These popular sleeves are widely used to adjust caster and/or camber on many Ford and Mazda 2/4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks. Series     2WD Adjust        4WD Adjust Part #     Total Change     Total Change 23181 .25 degree        .20 degree 23182 .50 degree        .40 degree 23183 .75 degree        .60 degree 23184     1.00 degree      .75 degree 23185 1.25 degree      .90 degree 23186 1.50 degree      1.10 degree 23187 1.75 degree      1.25 degree 23188 2.00 degree      1.40 degree 23189 2.25 degree      1.60 degree 23190 2.50 degree      1.80 degree 23191 2.75 degree      2.00 degree 23192 3.00 degree      2.25 degree 23193 3.25 degree      2.50 degree 23194 3.50 degree      2.75 degree 23199 0.00 degree To save time during alignment, use the 23199 zero sleeve to determine initial readings. Adjustment range: Cam./Cas. ±.25 degree to ±3.50 degree Installation time: .5 hr/side Required: 1 per wheel Recommended Tools 77880 - Sleeve Puller, 88830 - Sleeve Puller, 87175 - Special Socket ________________________ Check out our installation video for this part
