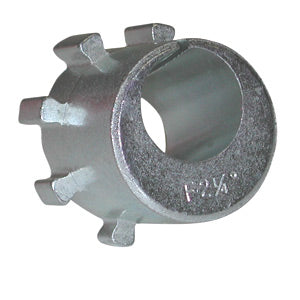

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23113

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23113

SKU:23113

In stock

Regular price $18.46 USD
Regular price $22.85 USD Sale price $18.46 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPC Performance Specialty Camber/Caster Adjustment Sleeve Kit 23113 is a high-quality suspension component designed to provide precise camber and caster adjustments for Ford vehicles. Constructed with durable materials, these sleeves allow for easy modification of suspension geometry, enabling users to fine-tune handling and alignment. The kit includes factory-style front upper camber/caster adjustment sleeves that facilitate quick installation and reliable performance. By enabling adjustments of 2-3/4°, these sleeves help optimize tire contact, improve steering response, and enhance overall vehicle stability. They are ideal for enthusiasts seeking to improve cornering, reduce tire wear, or customize their vehicle's alignment settings for specific driving conditions.

Designed for Ford Cam/Cas models, these sleeves are suitable for vehicles requiring front upper camber and caster adjustments. The installation process involves removing the tire, cotter pin, and upper ball joint stud nut, then breaking the taper between the stud and sleeve. Using a sleeve puller, the existing sleeve can be removed and replaced with the new SPC sleeves. This kit is intended for use on factory suspension setups and is suitable for street or track applications where precise alignment is desired. It provides a straightforward, bolt-on upgrade to enhance handling characteristics without requiring extensive modifications.

Overview

Part Numbers & Details
Specifications
Part Number Lift/Lowered Position Item Quantity
23113 Factory Front Upper Camber/Caster Adjustment Sleeve 1

23113 - 2-3/4° FORD CAM/CAS SLEEVE

---------------------------------------------------------------------------
Change camber, caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install zero degree sleeve 23109 or 23139 or to determine the change needed, then install the correct sleeve. To adjust, the sleeve may be lifted and rotated 1/8 turn. 23100 Set - Contains 1 each: 23101, 23102, 23103, 23104, 23105, 23106, 23107, 23108, 23109 Part No.Total Change 23101 .25 degree (1/4 degree) 23102 .50 degree (1/2 degree) 23103 .75 degree (3/4 degree) 23104 1.00 degree (1 degree) 23105 1.25 degree (1-1/4 degree) 23106 1.50 degree (1-1/2 degree) 23107 1.75 degree (1-3/4 degree) 23108 2.00 degree (2 degree) 23109 0.00 degree (0 degree) 23111 2.25 degree (2-1/4 degree) 23112 2.50 degree (2-1/2 degree) 231132.75 degree (2-3/4 degree) Adjustment range: Camber/Caster +/-.25 degree to +/-2.75 degree Installation time: .5 hr/side Required: 1 per wheel Recommended Tools: 77880 - Sleeve Puller, 88830 - Sleeve Puller NOTE: To save time during alignment, use the #23109 or #23129 zero sleeve to determine initial readings. ________________________ Check out our installation video for this part
