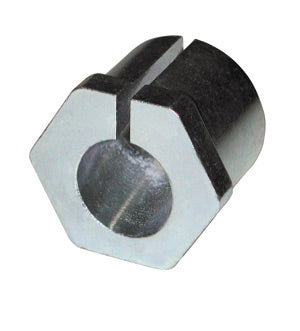

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23183

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23183

23183

In stock

$8.43 USD
$10.44 USD $8.43 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPC Performance 23183 Camber/Caster Adjustment Sleeve Kit is a high-quality upgrade designed to fine-tune suspension geometry on various Ford and Mazda 2/4WD trucks. These factory-style sleeves allow for precise adjustment of camber and caster angles, enhancing handling, stability, and tire wear. Constructed from durable materials, the sleeves are engineered to provide reliable performance and long-lasting durability. Their straightforward design simplifies installation, making them a popular choice for enthusiasts seeking to optimize their vehicle's alignment settings.

This kit is compatible with a wide range of Ford and Mazda trucks, primarily for models with front upper control arms requiring camber and caster adjustments. Suitable for street and performance applications, these sleeves are intended for use during suspension alignment or upgrade projects. Installation involves removing the upper ball joint pinch bolt and top snap ring, then using a sleeve puller for removal if necessary. The kit includes one adjustment sleeve, providing an effective solution for improving vehicle handling and alignment precision.

Overview

Part Numbers & Details
Specifications
Part Number Lift/Lowered Position Item Quantity
23183 Factory Front Upper Camber/Caster Adjustment Sleeve 1

23183 - 3/4° CAMBER/CASTER SLEEVE

---------------------------------------------------------------------------
These popular sleeves are widely used to adjust caster and/or camber on many Ford and Mazda 2/4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks. Series     2WD Adjust        4WD Adjust Part #     Total Change     Total Change 23181 .25 degree        .20 degree 23182 .50 degree        .40 degree 23183     .75 degree        .60 degree 23184 1.00 degree      .75 degree 23185 1.25 degree      .90 degree 23186 1.50 degree      1.10 degree 23187 1.75 degree      1.25 degree 23188 2.00 degree      1.40 degree 23189 2.25 degree      1.60 degree 23190 2.50 degree      1.80 degree 23191 2.75 degree      2.00 degree 23192 3.00 degree      2.25 degree 23193 3.25 degree      2.50 degree 23194 3.50 degree      2.75 degree 23199 0.00 degree To save time during alignment, use the 23199 zero sleeve to determine initial readings. Adjustment range: Cam./Cas. ±.25 degree to ±3.50 degree Installation time: .5 hr/side Required: 1 per wheel Recommended Tools 77880 - Sleeve Puller, 88830 - Sleeve Puller, 87175 - Special Socket ________________________ Check out our installation video for this part
