SPC Performance .75 Flared Hole Die | Universal (15835)
SPC Performance .75 Flared Hole Die | Universal (15835)
SKU:15835
In stock
Couldn't load pickup availability
The SPC Performance .75 Flared Hole Die is a specialized tool designed for sheet-metal fabrication, commonly referred to as "dimple dies." This die is engineered to create flared holes that enhance the rigidity and strength of flat, unsupported panels. By employing this technique, the die contributes to high strength-to-weight ratios, making it suitable for applications in aerospace and racing vehicle construction. Constructed with precision through finite element analysis and extensive prototype testing, the die ensures consistent, high-quality results. Its use promotes structural integrity and durability in critical components, supporting performance and safety in demanding environments.
This flared hole die is a universal fit, compatible with various sheet-metal fabrication setups. It is ideal for use in automotive race builds, custom fabrications, and aircraft panel reinforcement. Designed for professional and enthusiast applications, it allows for precise, bolt-on installation to create reinforced, high-strength panels. The die is suitable for use with materials such as aluminum and steel, and it is intended for projects requiring enhanced panel support and durability. Its versatile design makes it a valuable tool for fabricators seeking reliable, repeatable results in structural reinforcement tasks.
Share
Overview
Overview

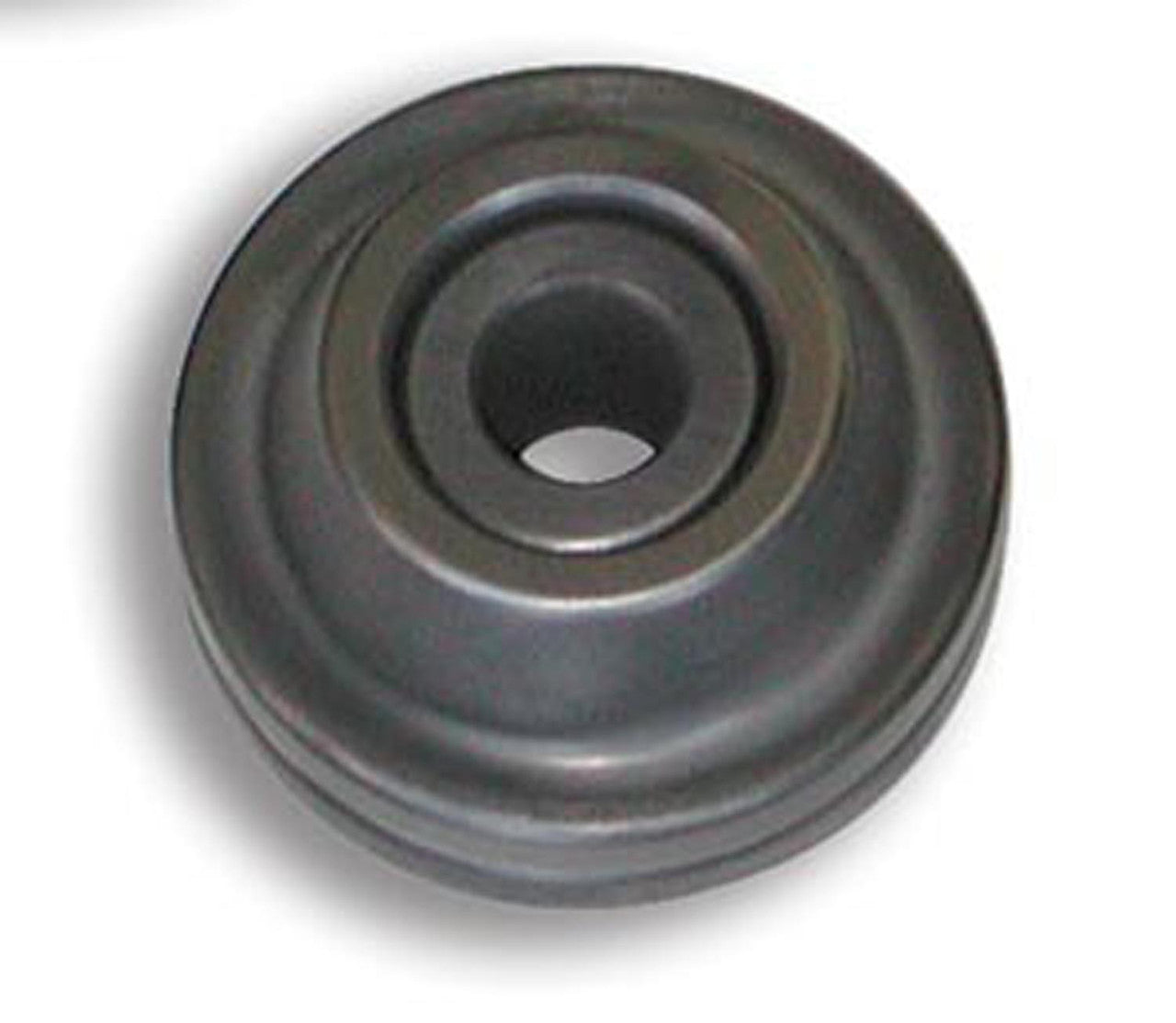

.75 Flared Hole Die by SPC Performance
Often called "dimple dies", flared hole dies are used in sheet-metal fabrications to provide rigidity and strength to flat, unsupported panels. Due to the resulting high strength -to-weight ratio applications promoted by the use of this technique, flared holes are found in many aircraft and race vehicles designs. Beginning with comprehensive finite element analysis supported by extensive prototype testing, our Flared Hole Dies are engineered to provide the optimum combination of performance attributes: Designed to eliminate edge tearing even when used on high strength 4130 chromoly sheet (normalized condition), with laser cut holes (hardened edges). Optimized form (flare angle, bend radius and length of run) provides maximum stiffness and strength. Manufactured from premium hardened high carbon steel for maximum tool life. Unique shape for ease of handling. Up to max sheet thickness of .090 for chromoly and .125 for mild steel.
Features
- SPC Performance .75 Flared Hole Die
Benefits
- Designed to eliminate edge tearing even when used on high strength 4130 chromoly sheet (normalized condition), with laser cut holes (hardened edges)
- Optimized form (flare angle, bend radius and length of run) provides maximum stiffness and strength
- Manufactured from premium hardened high carbon steel for maximum tool life
- Unique shape for ease of handling
- Up to max sheet thickness of .090 for chromoly and .125 for mild steel.
Applications
- Universal
What's In The Box?
- 1 - .75 Flared Hole Die
Warranty
- Lifetime Warranty
