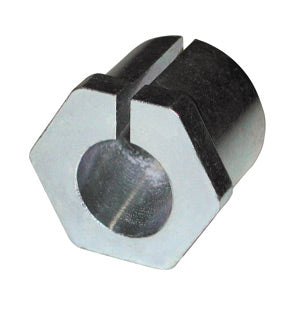

Specialty SPC Camber/Caster Adjustment Sleeve Kit 23180

These popular sleeves are widely used to adjust caster and/or camber on many Ford and Mazda 2/4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks. 23180 Set Contains 1 each: 23181, 23182, 23183, 23184, 23185, 23186, 23187, 23188, 23199 Series     2WD Adjust        4WD Adjust Part #     Total Change     Total Change 23181 .25 degree        .20 degree 23182 .50 degree        .40 degree 23183 .75 degree        .60 degree 23184 1.00 degree      .75 degree 23185 1.25 degree      .90 degree 23186 1.50 degree      1.10 degree 23187 1.75 degree      1.25 degree 23188 2.00 degree      1.40 degree 23189 2.25 degree      1.60 degree 23190 2.50 degree      1.80 degree 23191 2.75 degree      2.00 degree 23192 3.00 degree      2.25 degree 23193 3.25 degree      2.50 degree 23194 3.50 degree      2.75 degree 23199 0.00 degree To save time during alignment, use the 23199 zero sleeve to determine initial readings. Adjustment range: Cam./Cas. ±.25 degree to ±3.50 degree Installation time: .5 hr/side Required: 1 per wheel Recommended Tools 77880 - Sleeve Puller, 88830 - Sleeve Puller, 87175 - Special Socket ________________________ Check out our installation video for this part
