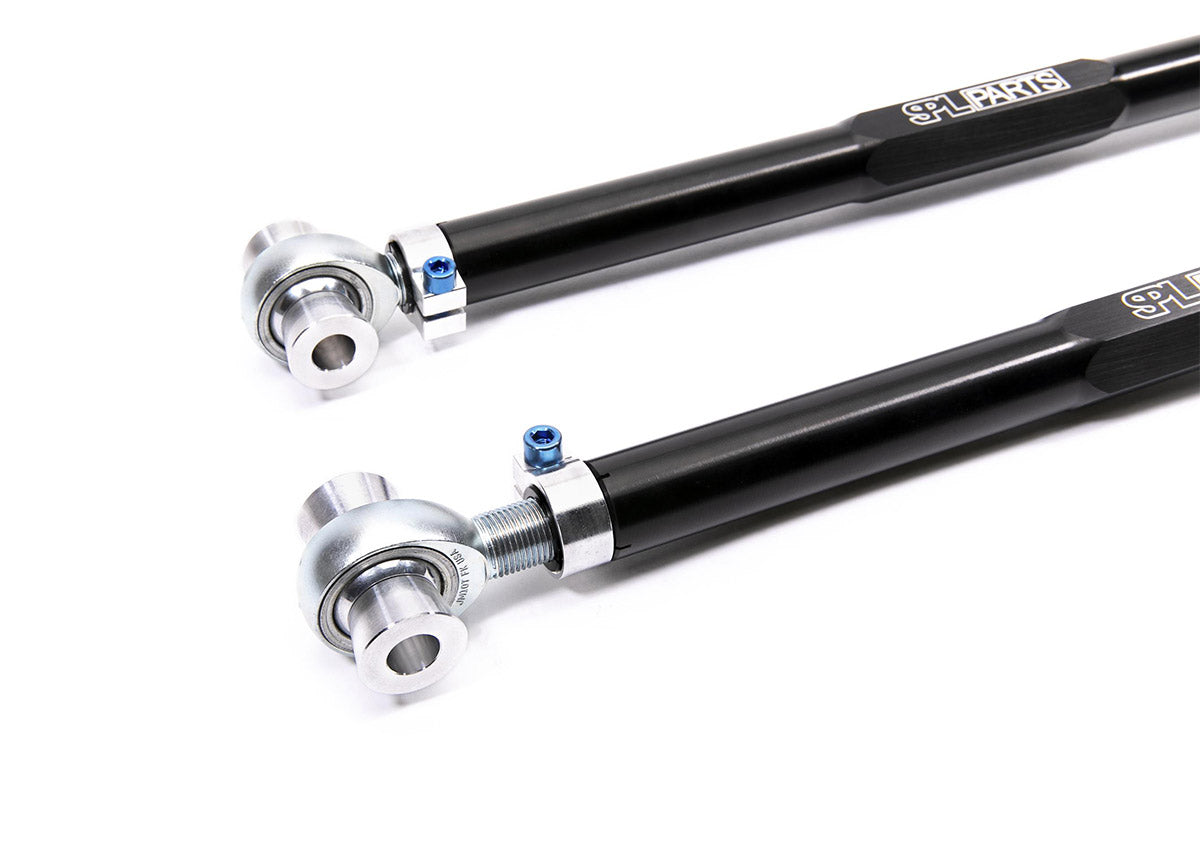

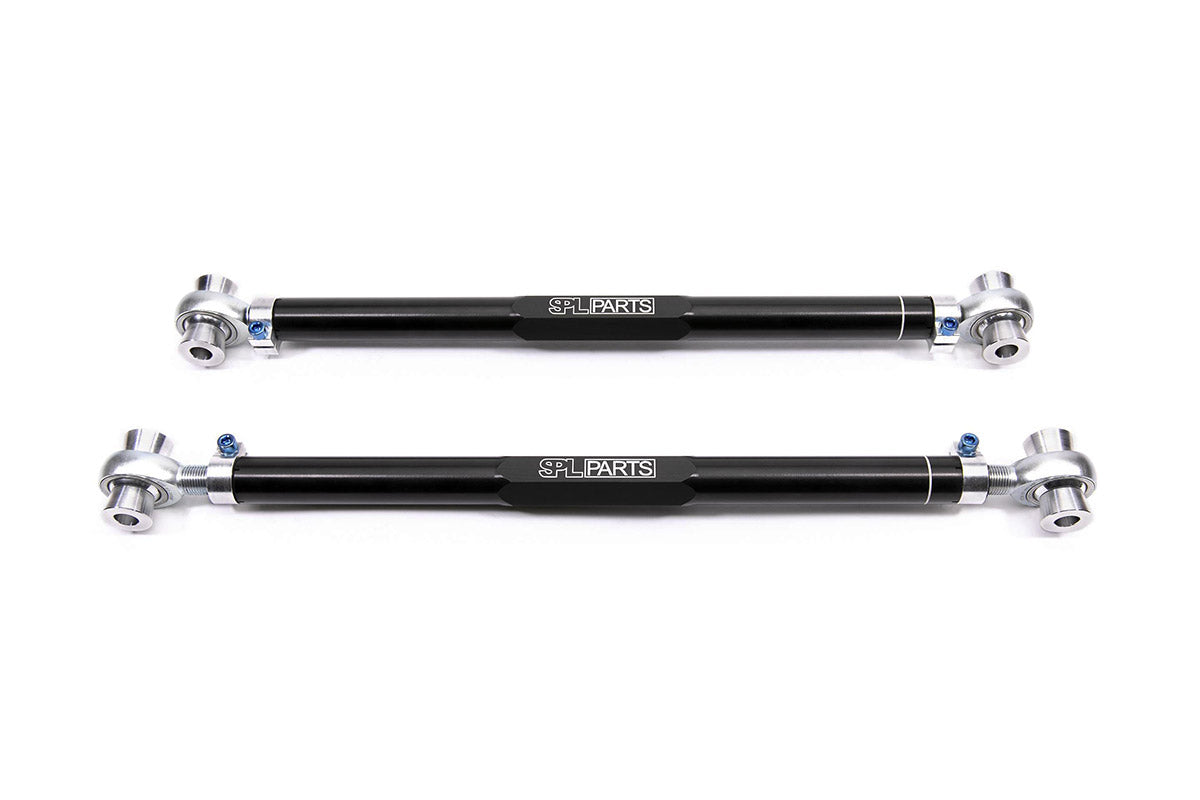

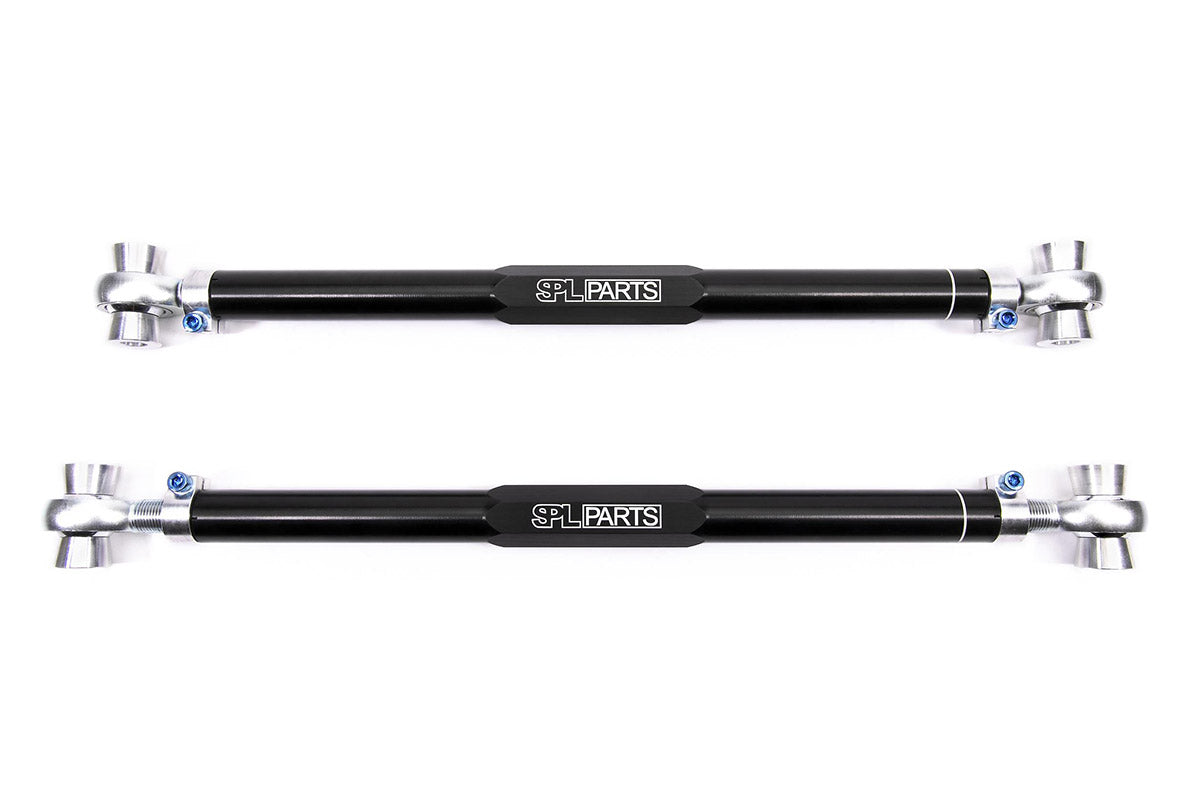

SPL Parts Adjustable Rear Toe Arm Set - 2016-2019 Cadillac ATS (Alpha)

SPL Parts Adjustable Rear Toe Arm Set - 2016-2019 Cadillac ATS (Alpha)

SPL RTA ATS

Out of stock

$404.10 USD
$449.00 USD $404.10 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPL Parts Adjustable Rear Toe Arm Set is a high-performance suspension component designed specifically for the 2016-2019 Cadillac ATS (Alpha). These rear toe arms are engineered to enhance vehicle stability and response by eliminating bushing deflection, which can negatively impact handling. Constructed to provide an increased range of rear toe adjustment, they are essential for vehicles that are lowered or require precise alignment for optimal grip. The design features adjustable components that allow for fine-tuning of toe settings, helping to maximize tire contact patch and improve overall driving dynamics. Whether for track use or street performance, these toe arms deliver improved handling characteristics and extended tire life through better alignment control.

Designed for 2016-2019 Cadillac ATS (Alpha) models, these rear toe arms are a direct upgrade over factory components. They utilize an eccentric bolt and washer system for easy, precise adjustments, accommodating changes in ride height and camber that can affect toe settings. The kit is ideal for enthusiasts seeking to optimize their vehicle’s handling on the track or improve stability during spirited driving. Installation is straightforward as a bolt-on replacement, and the set includes all necessary hardware for a secure fit. Suitable for performance-oriented street driving or track days, these adjustable toe arms help achieve the desired alignment and handling balance.

Overview

Rear Toe Arms (RTA) for the 2016-2019 Cadillac ATS (Alpha) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an Eccentric Bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength. FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65 to 325 F, offering robust reliability.

Made in the USA.

Standard Features

  • Gun drilled
  • 2024 Aluminum Links to reduce unsprung weight
  • Blue Anodized Titanium Socket Head Cap Screws
  • 6061-T6 Aluminum Rotating Clamp design
  • Teflon lined FK Heim Joints and Rod Ends
Specifications
Part Number SPL RTA ATS
Part Name Adjustable Rear Toe Arm Set
UPC 887753910158
Vehicle 2016-2019 Cadillac ATS (Alpha)
Quantity Pair of 2
Vehicle Fitment
  • 2016 Cadillac ATS (Alpha)
  • 2017 Cadillac ATS (Alpha)
  • 2018 Cadillac ATS (Alpha)
  • 2019 Cadillac ATS (Alpha)
