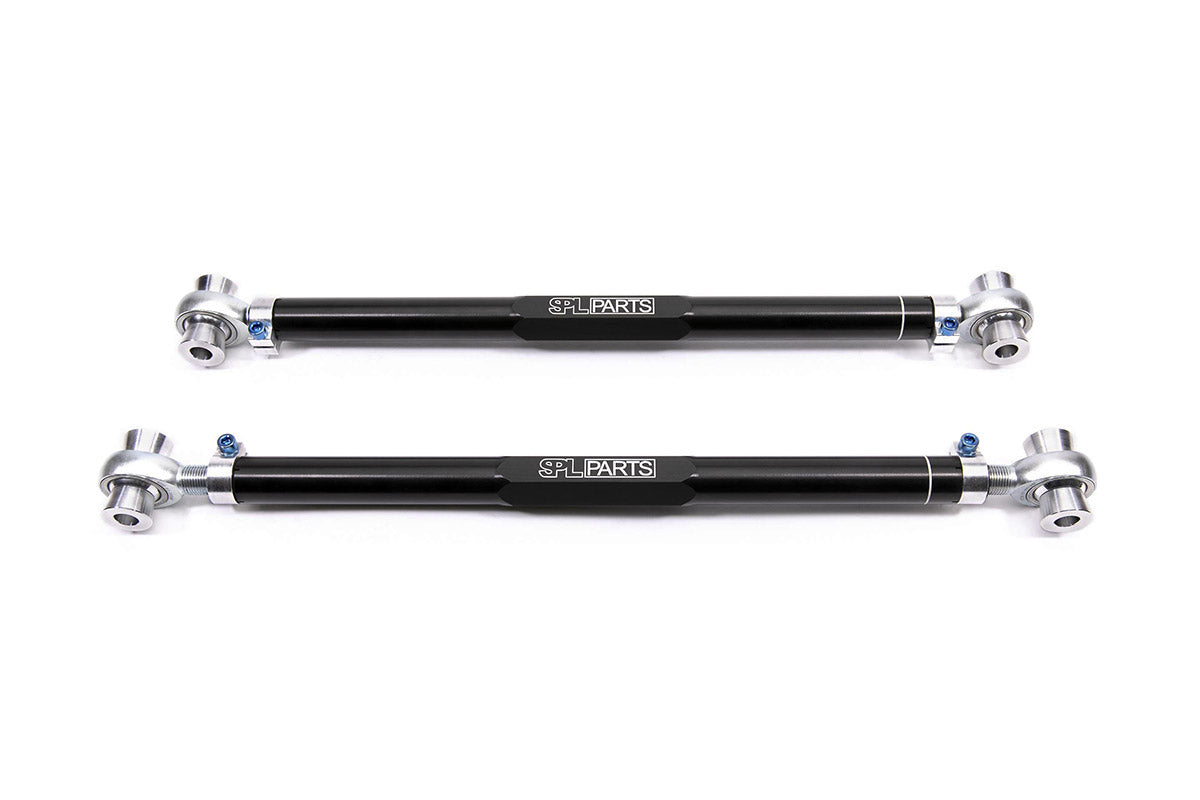

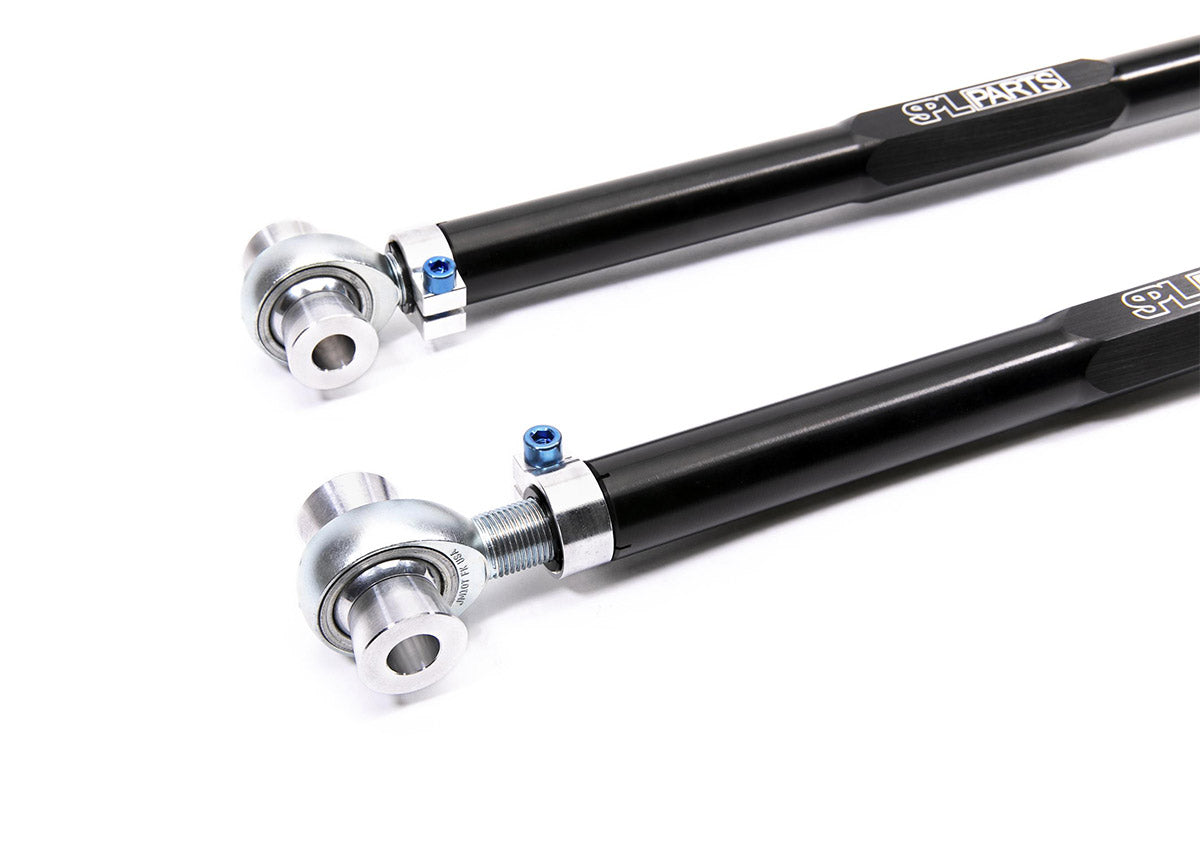

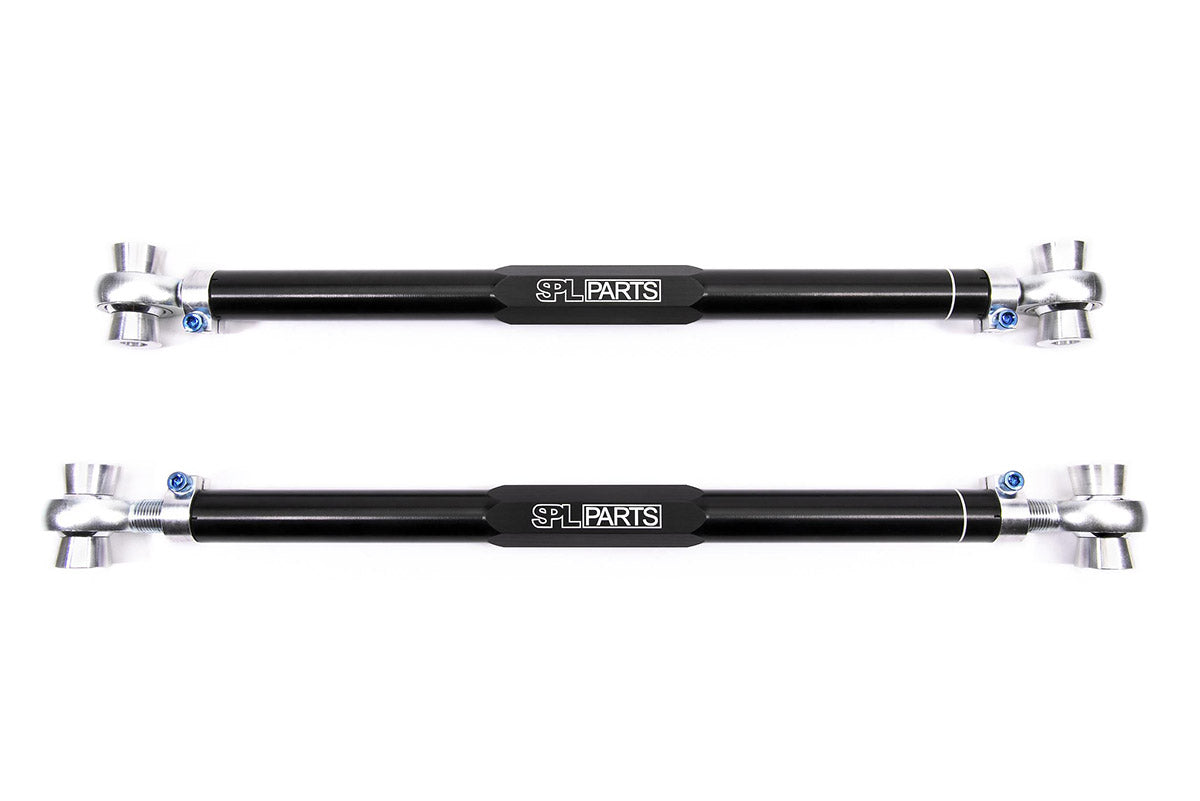

SPL Parts Adjustable Rear Toe Arm Set - 2016-2019 Cadillac CTS (A1SL)

SPL Parts Adjustable Rear Toe Arm Set - 2016-2019 Cadillac CTS (A1SL)

SPL RTA ATS

Out of stock

$384.86 USD
$449.00 USD $384.86 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPL Parts Adjustable Rear Toe Arm Set is a performance upgrade designed for the 2016-2019 Cadillac CTS (A1SL). These rear toe arms are engineered to enhance vehicle stability and response by eliminating bushing deflection, which improves handling precision. Constructed with durable materials, they provide an increased range of rear toe adjustment, making them ideal for lowered vehicles or performance alignments. The design allows for fine-tuning of toe settings, which can be affected by ride height and camber changes, helping to maximize grip on the track and extend tire life on the street. The adjustable arms replace the factory units that use eccentric bolts and washers, offering a more reliable and precise adjustment mechanism for serious enthusiasts.

These adjustable rear toe arms are specifically designed for the 2016-2019 Cadillac ATS (Alpha platform) and are a direct replacement for the factory components. They are suitable for use in both street and track applications, providing improved handling and tire wear characteristics. Installation involves replacing the stock toe arms with these upgraded units, which are built to withstand high-performance driving conditions. The kit includes the necessary components for installation, ensuring a secure fit and optimal alignment adjustments. These arms are ideal for enthusiasts seeking to improve their vehicle’s handling dynamics and alignment precision.

Overview

Rear Toe Arms (RTA) for the 2016-2019 Cadillac ATS (Alpha) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an Eccentric Bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength. FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65 to 325 F, offering robust reliability.

Made in the USA.

Standard Features

  • Gun drilled
  • 2024 Aluminum Links to reduce unsprung weight
  • Blue Anodized Titanium Socket Head Cap Screws
  • 6061-T6 Aluminum Rotating Clamp design
  • Teflon lined FK Heim Joints and Rod Ends
Specifications
Part Number SPL RTA ATS
Part Name Adjustable Rear Toe Arm Set
UPC 887753910158
Vehicle 2016-2019 Cadillac ATS (Alpha)
Quantity Pair of 2
Vehicle Fitment
  • 2016 Cadillac ATS (Alpha)
  • 2017 Cadillac ATS (Alpha)
  • 2018 Cadillac ATS (Alpha)
  • 2019 Cadillac ATS (Alpha)
