SPL Parts Adjustable Rear Upper Arm Set - 2015-2023 Ford Mustang (S550)

SPL Parts Adjustable Rear Upper Arm Set - 2015-2023 Ford Mustang (S550)

SKU:SPL RUA S550

Regular price $598.50 USD
Regular price $665.00 USD Sale price $598.50 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

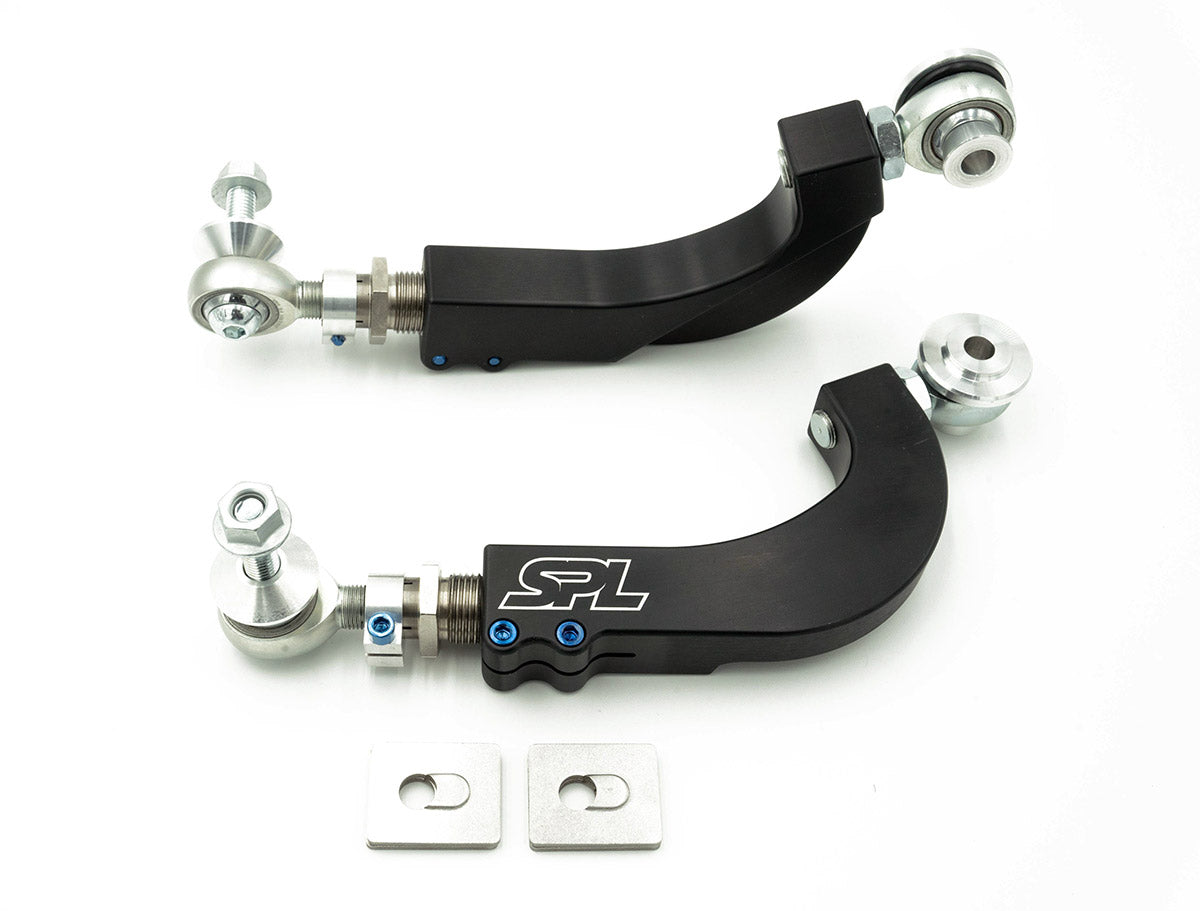

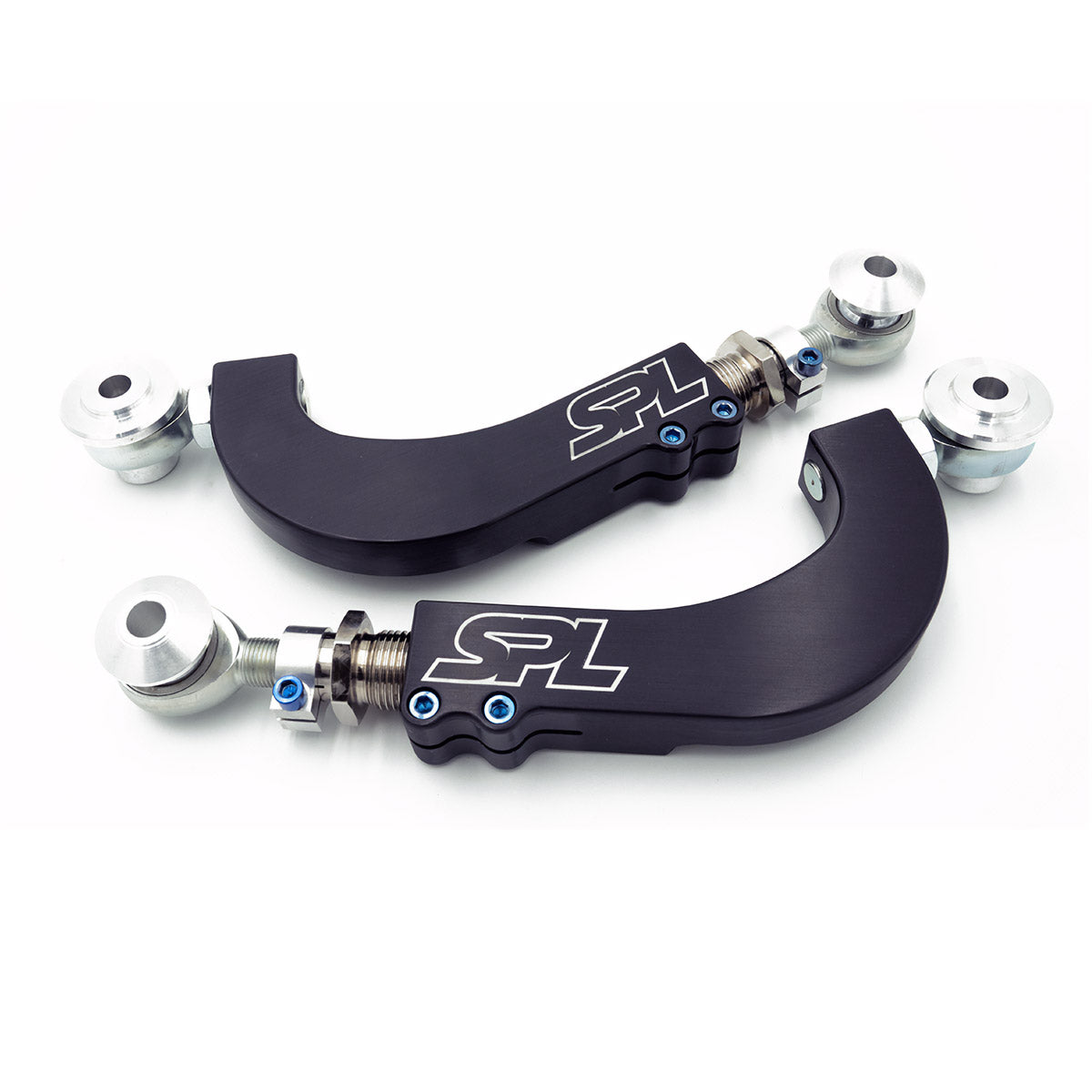

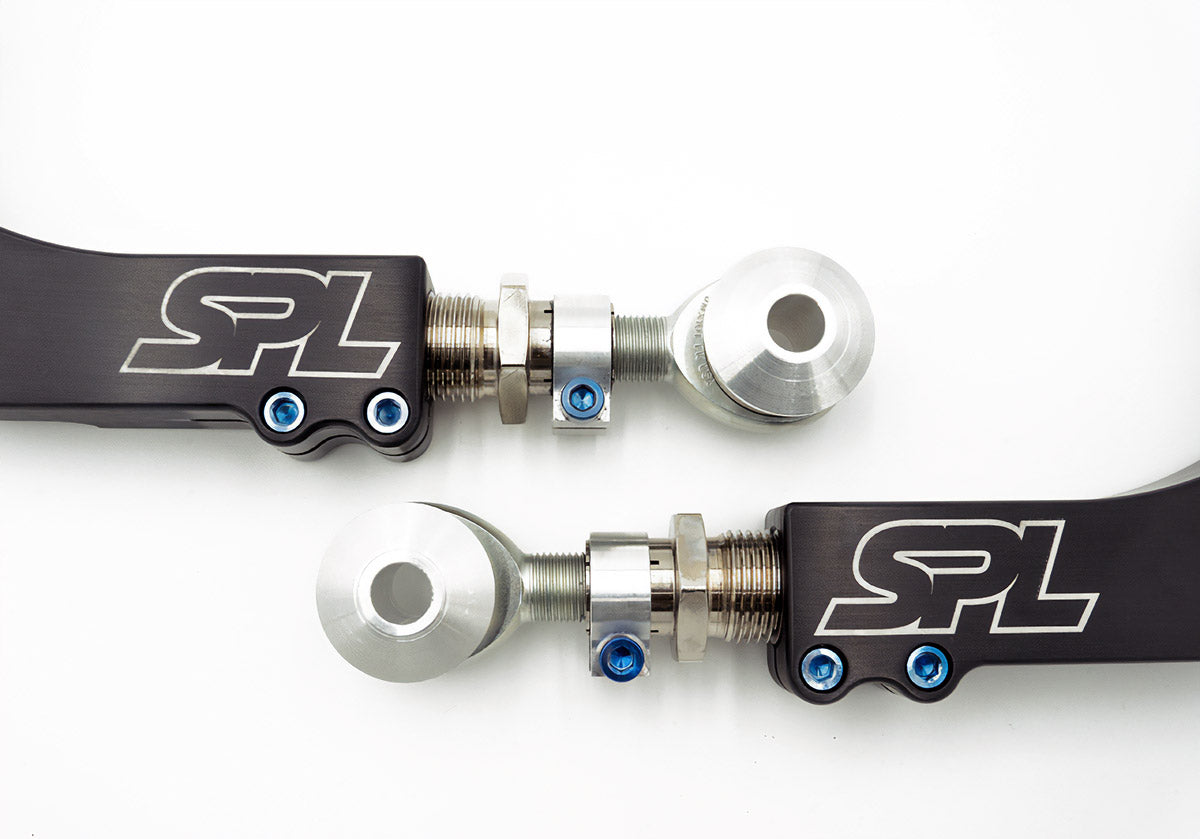

Rear Upper Arms (RUA) for the 2015-2023 Ford Mustang (S550) were carefully designed to provide strength, clearance to axle and frame, while allowing for huge range of adjustment. The rear upper arm eliminates the need to adjust from the far inboard side of the arm, which is incredibly hard to reach, and moves all adjustment to the knuckle side, easing alignments. The inner bolt is locked out to a single position, so all adjustments will be done using our double adjustment mechanism, making fine-tuning the rear camber far easier. The assembly uses a 6061-T6 Billet Aluminum body, hardened SPL Double Adjuster specifically designed for the application, as well as hardened rod ends, making this part exceptionally strong to be able to hold any and all loads that are put through it by the stickiest tires you can put on your Mustang. The arm was designed with FEA to ensure it could hold the loads, then destructively tested to confirm the FEA. All the wear components (rod ends) are easily replaceable in this assembly.

Standard Features

  • 6061-T6 Billet Aluminum Arm Assembly
  • Blue Anodized Titanium Socket Head Cap Screws
  • Hardened Double Adjuster
  • Teflon Lined Rod Ends
  • Steel Lockout washers
  • Grade 10.9 Hex Cap Bolts with Lock Nuts
  • Sold as a Pair
  • Made in the USA
Specifications
Part Number SPL RUA S550
Part Name Adjustable Rear Upper Arm Set
UPC 887753910837
Vehicle 2015-2023 Ford Mustang (S550)
Vehicle Fitment
  • 2015 Ford Mustang (S550)
  • 2016 Ford Mustang (S550)
  • 2017 Ford Mustang (S550)
  • 2018 Ford Mustang (S550)
  • 2019 Ford Mustang (S550)
  • 2020 Ford Mustang (S550)
  • 2021 Ford Mustang (S550)
  • 2022 Ford Mustang (S550)
  • 2023 Ford Mustang (S550)
