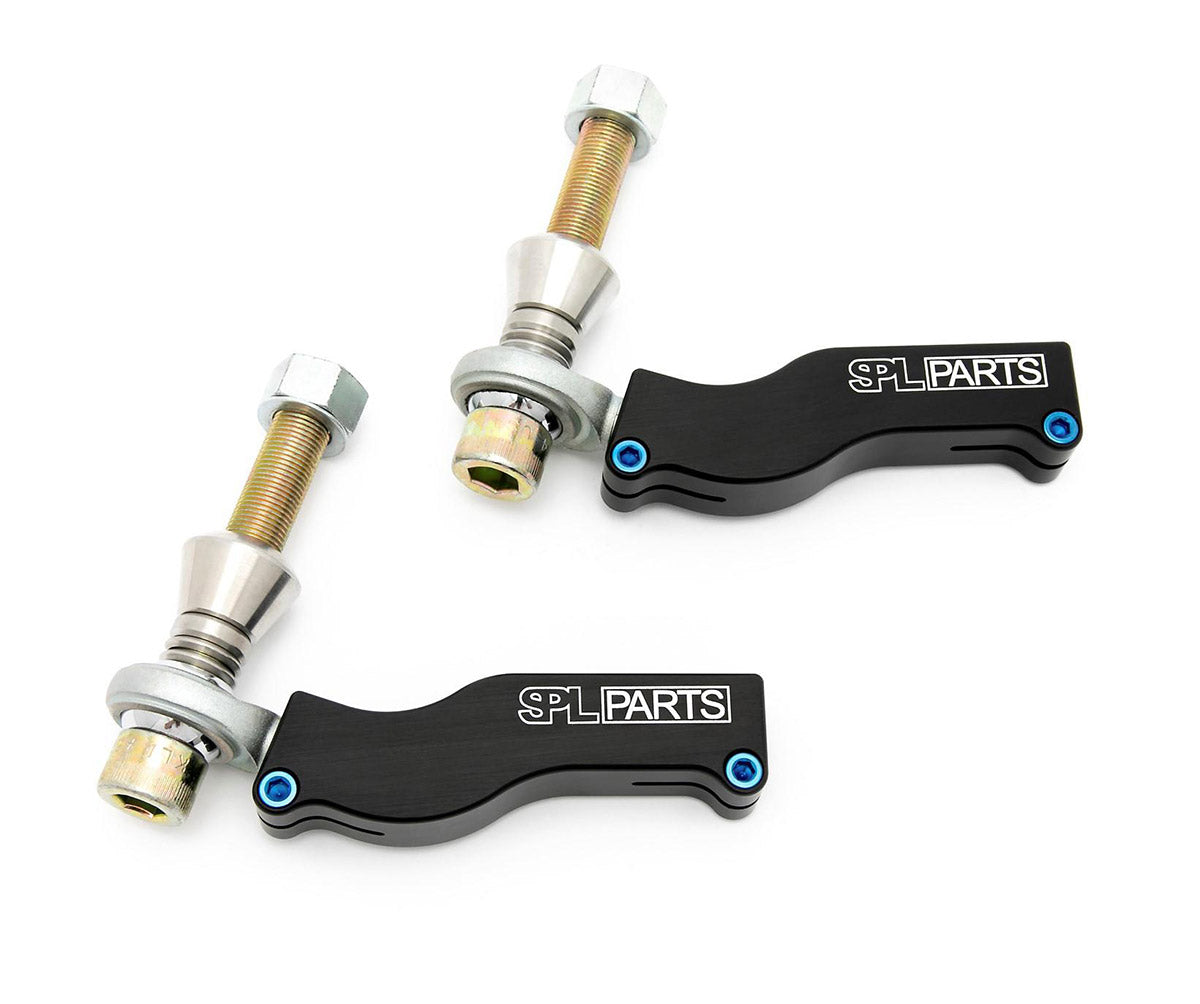

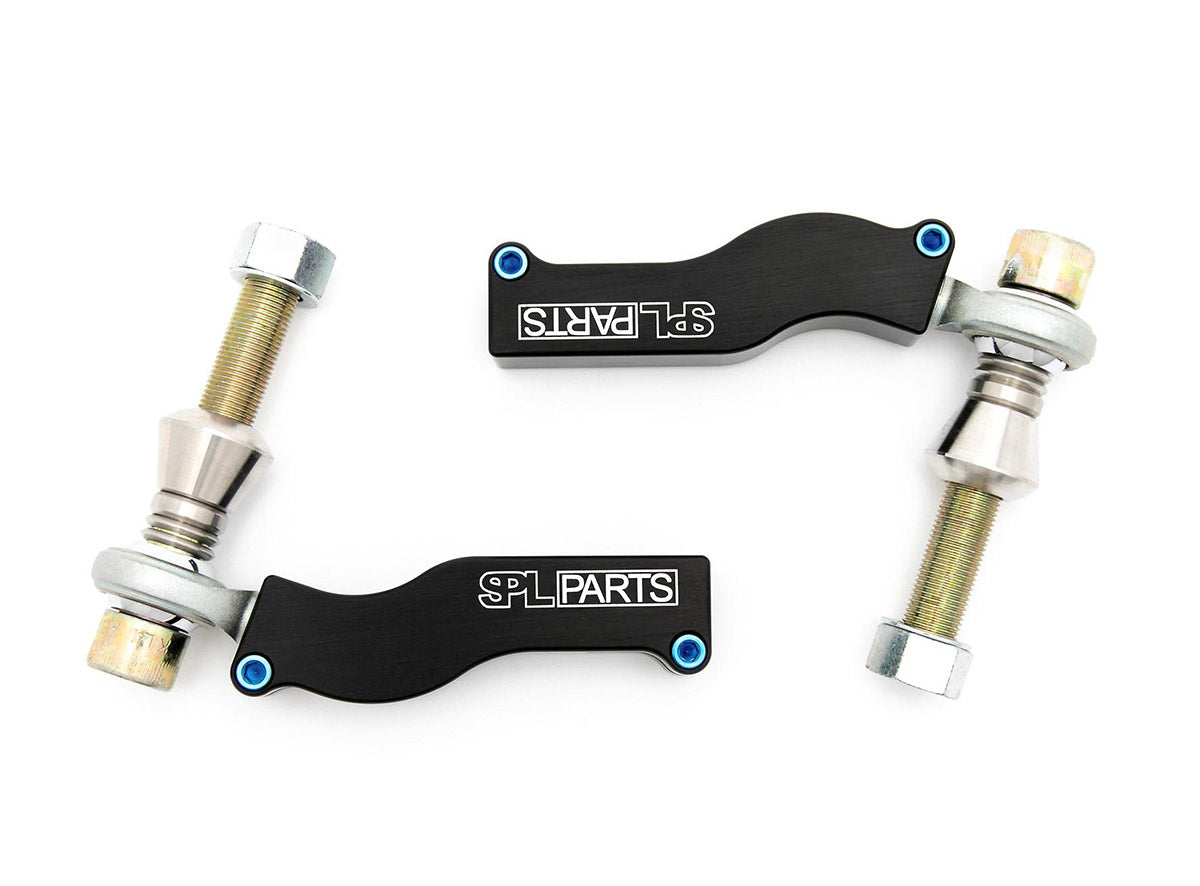

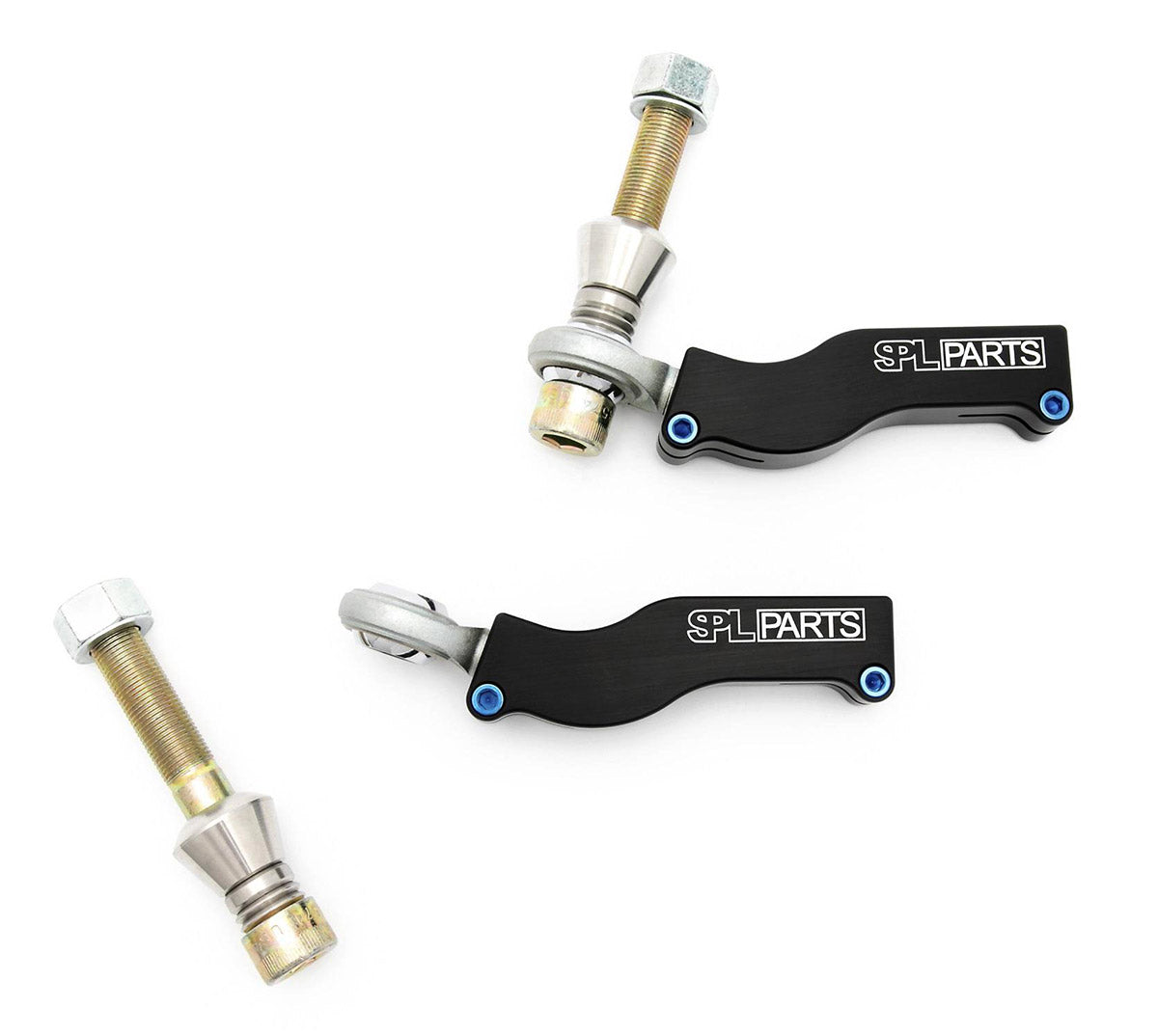

SPL Parts Front Outer Tie Rod Ends - 2006-2013 BMW 3 Series (E9X)

SPL Parts Front Outer Tie Rod Ends - 2006-2013 BMW 3 Series (E9X)

SKU:SPL TRE E9X

In stock

Regular price $341.10 USD
Regular price $379.00 USD Sale price $341.10 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPL Parts Front Outer Tie Rod Ends for the 2006-2013 BMW 3 Series (E9X) are high-performance suspension components designed to improve steering precision and handling. These tie rod ends allow for the relocation of the pivot point, effectively correcting bump steer caused by modified caster or lower arm geometry. Constructed with durable materials and featuring ASTM A574 socket head cap bolts, they are engineered to withstand the stresses of aggressive driving and racing conditions. By maintaining proper steering geometry, these tie rod ends help reduce lap times and enhance overall vehicle responsiveness. Their design also prevents binding issues in lowered vehicles, protecting inner tie rods from bending or breaking during high-performance use.

Suitable for 2006-2013 BMW 3 Series models, these tie rod ends are a direct upgrade for stock components, ensuring precise fitment and reliable performance. They are ideal for track days, racing, or aggressive street driving where steering accuracy is critical. Installation involves replacing the existing outer tie rods with these upgraded units, which are manufactured in the USA for quality assurance. The kit includes the necessary socket head cap bolts and hardware for a straightforward installation. These tie rod ends are compatible with vehicles that have been lowered significantly, providing a solution to common handling issues and enhancing the vehicle’s overall steering response.

Overview

SPL Parts Front Tie Rod Ends (TRE) for the 2006-2013 BMW 3 Series (E9X) allow the tie rod end pivot to be relocated, which will correct bump steer resulting from modified caster or lower arm geometry, thus reducing lap times. On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing the inner tie rods from breaking or bending when racing.

Made in the USA!

Standard Features

  • ASTM A574 socket head cap bolts used for maximum articulation with minimum tensile strength of 170,000 psi
  • Custom CNC machined 6061-T6 Billet Aluminum curved turnbuckles to maximize articulation and allow full droop travel
  • Low friction Teflon lined FK Heim joints/rod ends
  • 1/4" and 1/8" thick Stainless Steel bump steer spacers for precise adjustment, with tapered ends to provide more misalignment
  • Blue Anodized Titanium socket head cap screws for lightweight and robust clamp force

Installation Instructions

Specifications
Part Number SPL TRE E9X
Part Name Front Outer Tie Rod Ends
UPC 887753911278
Vehicle 2006-2013 BMW 3 Series (E9X)
Quantity Pair of 2
Vehicle Fitment
  • 2006 BMW 3 Series (E9X)
  • 2007 BMW 3 Series (E9X)
  • 2008 BMW 3 Series (E9X)
  • 2009 BMW 3 Series (E9X)
  • 2010 BMW 3 Series (E9X)
  • 2011 BMW 3 Series (E9X)
  • 2012 BMW 3 Series (E9X)
  • 2013 BMW 3 Series (E9X)
