• SPL Parts Front Sway Bar End Links - 2016-2023 Mazda Miata (ND)
  • SPL Parts Front Sway Bar End Links - 2016-2023 Mazda Miata (ND)
1 2

SPL Parts Front Sway Bar End Links - 2016-2023 Mazda Miata (ND)

SPL Parts Front Sway Bar End Links - 2016-2023 Mazda Miata (ND)

SPL FE ND

Out of stock

$202.06 USD
$229.00 USD $202.06 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

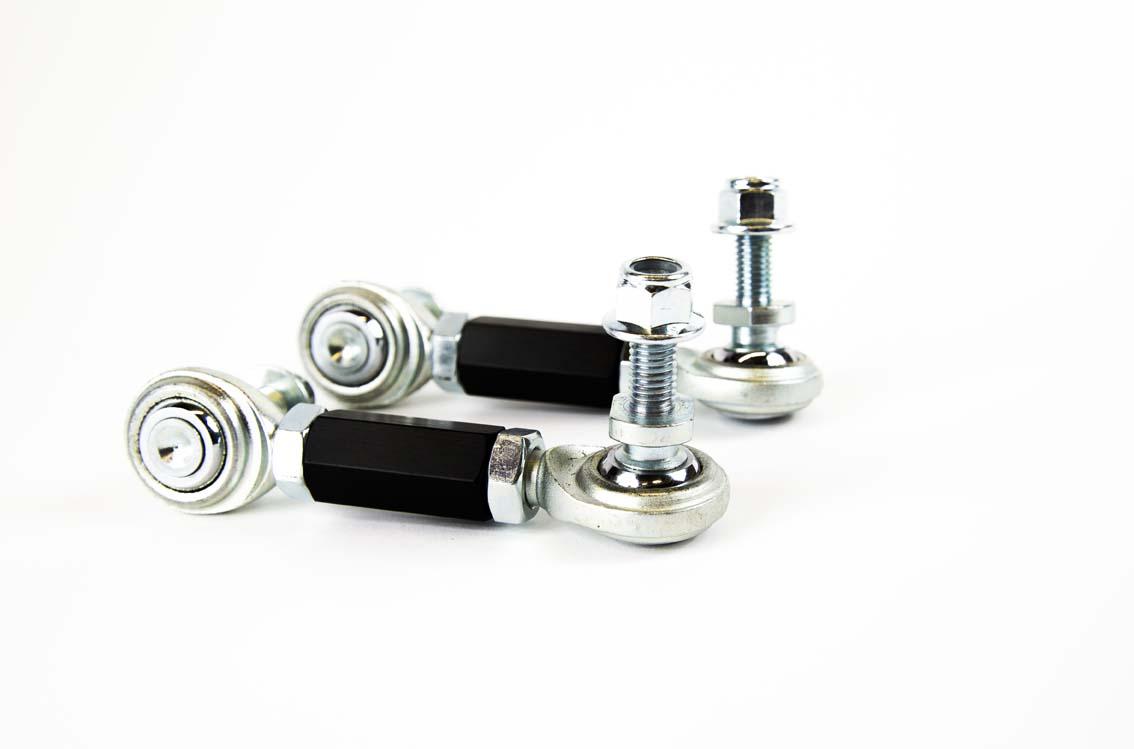

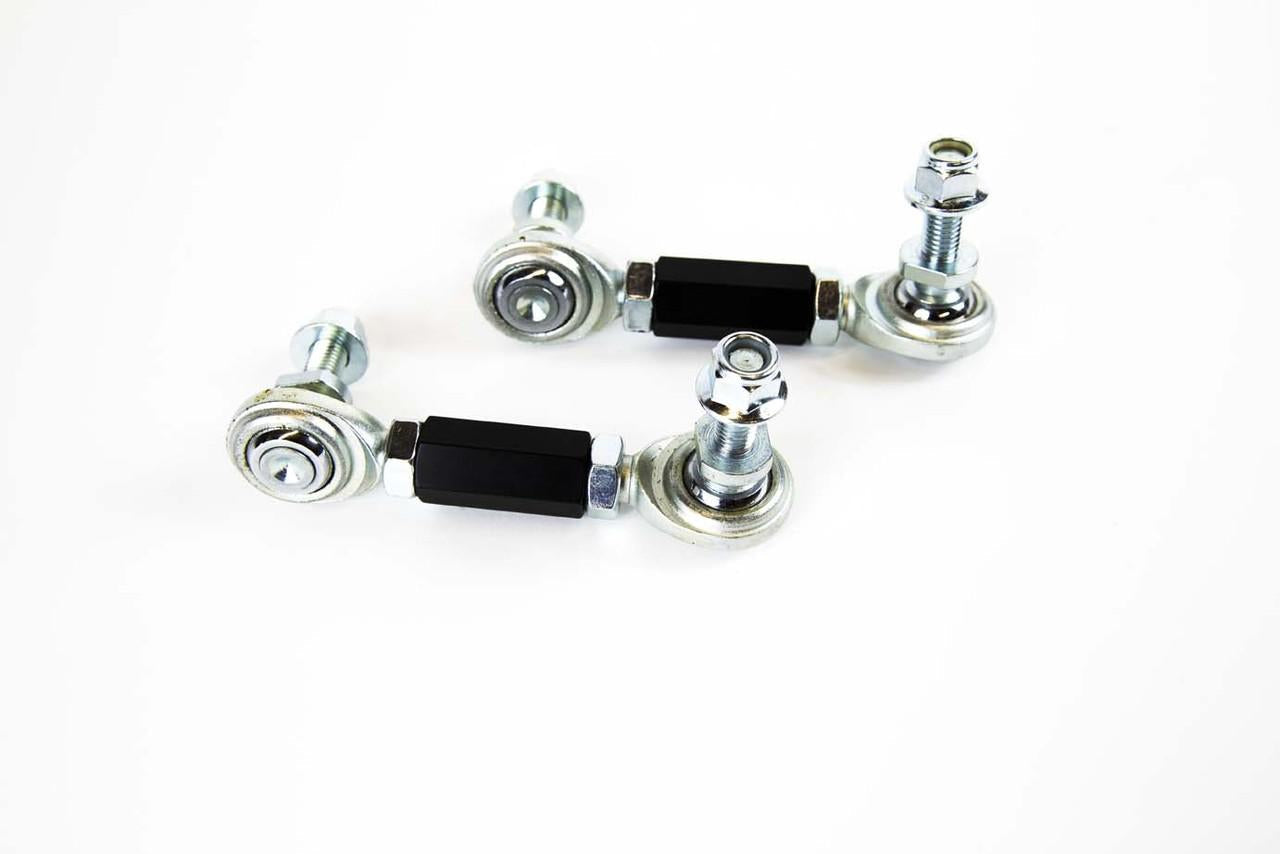

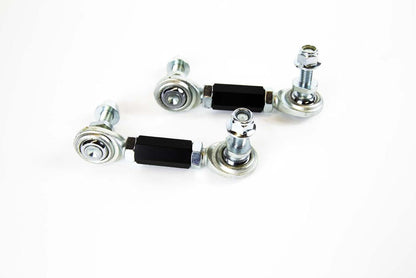

The SPL Parts Front Sway Bar End Links for the 2016-2023 Mazda Miata (ND) are high-performance adjustable end links designed to enhance suspension responsiveness and stability. Constructed with massive FK 1/2" rod ends, these end links provide exceptional load capacity, making them suitable for use with OEM or upgraded, stiffer aftermarket sway bars. The design incorporates high misalignment studs that allow for up to 65 degrees of articulation, preventing binding when adjusting for different sway bar hole positions. Their adjustable length feature helps eliminate preload on the sway bars, ensuring optimal suspension geometry and improved handling characteristics. These components are engineered for durability and precise performance, making them ideal for enthusiasts seeking improved cornering and ride quality.

Designed specifically for the ND Mazda Miata from 2016 to 2023, these end links are a direct upgrade or replacement for stock components. They are suitable for street, track, or spirited driving where enhanced suspension articulation and load capacity are desired. Installation is straightforward, with bolt-on compatibility that requires no additional modifications. The kit includes the adjustable end links with high misalignment studs, ensuring reliable performance under demanding conditions. These end links are perfect for drivers looking to improve suspension response and stability during aggressive driving or track days, providing a robust solution for enhanced vehicle control.

Overview

SPL Parts Adjustable Rear Endlinks (RE) for the 2016-2023 Mazda Miata (ND) feature massive FK 1/2" Rod Ends to provide the highest load capacity for use with OEM or stiffer aftermarket sway bars, and custom made High Misalignment studs that offer extreme articulation capability (65deg) to prevent the endlink from binding when used with different adjustment holes on aftermarket sway bars.

Our Endlinks are also length adjustable to eliminate preload on the sway bars, which can result from uneven settling of springs or uneven suspension heights from corner weighting. Black Anodized 6061-T6 Aluminum turnbuckles work in conjunction with the left and right hand threaded rod ends for simple and precise adjustment.

Made in the USA.

Standard Features

  • Enhanced Handling: Engineered to provide superior stiffness, these sway bars significantly improve cornering performance and reduce body roll, delivering a more responsive driving experience.
  • Custom Fit: Designed specifically for the 991 chassis, ensuring precise compatibility and easy installation without the need for extensive modifications.
  • Adjustable Settings: Features multiple adjustment points, allowing you to fine-tune the sway bar stiffness to match your driving style, whether for daily driving or track use.
  • High-Quality Materials: Constructed from durable materials, including heat-treated steel for the sway bars and robust aluminum for the end links, ensuring long-lasting performance under demanding conditions.
  • Lightweight Design: The lightweight construction minimizes added weight while maximizing

Installation Instructions

Specifications
Part Number SPL FE ND
Part Name Front Sway Bar End Links
UPC 887753909213
Vehicle 2016-2023 Mazda Miata (ND)
Quantity Pair of 2
Vehicle Fitment
  • 2016 Mazda Miata (ND)
  • 2017 Mazda Miata (ND)
  • 2018 Mazda Miata (ND)
  • 2019 Mazda Miata (ND)
  • 2020 Mazda Miata (ND)
  • 2021 Mazda Miata (ND)
  • 2022 Mazda Miata (ND)
  • 2023 Mazda Miata (ND)
