SPL Parts PRO Rear End Links - 1989-1997 Mazda Miata (NA)

SPL Parts PRO Rear End Links - 1989-1997 Mazda Miata (NA)

SPL RE NC

In stock

$202.06 USD
$229.00 USD $202.06 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The SPL Parts PRO Rear End Links for the 1989-1997 Mazda Miata (NA) are high-performance suspension components designed to enhance handling and stability. Constructed with massive Teflon-lined FK 1/2" bearings, these endlinks provide exceptional load capacity, making them suitable for use with stiffer aftermarket sway bars. The custom-made high misalignment studs allow for up to 65 degrees of articulation, preventing binding when adjusting different holes on aftermarket sway bars. Their length-adjustable design helps eliminate preload caused by uneven settling, ensuring consistent performance and improved suspension response. These endlinks are engineered for durability and precise articulation, making them ideal for enthusiasts seeking a reliable upgrade to their Miata's suspension system.

Designed specifically for the 1989-1997 Mazda Miata (NA), these endlinks are a direct upgrade for the rear suspension. They are compatible with various aftermarket sway bars and are suitable for street, track, or spirited driving. Installation involves replacing the stock endlinks with these adjustable units, which include high misalignment studs for enhanced articulation. The kit provides a robust solution for reducing sway bar preload and improving handling dynamics. Suitable for vehicles with aftermarket sway bars, these endlinks are an excellent choice for drivers aiming to optimize suspension performance and articulation on their Miata.

Overview

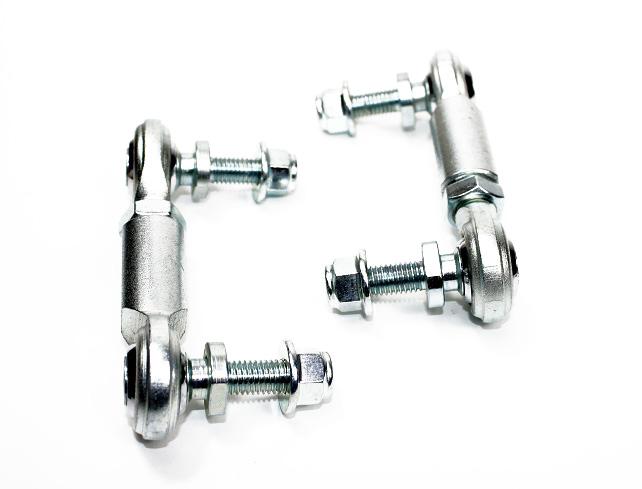

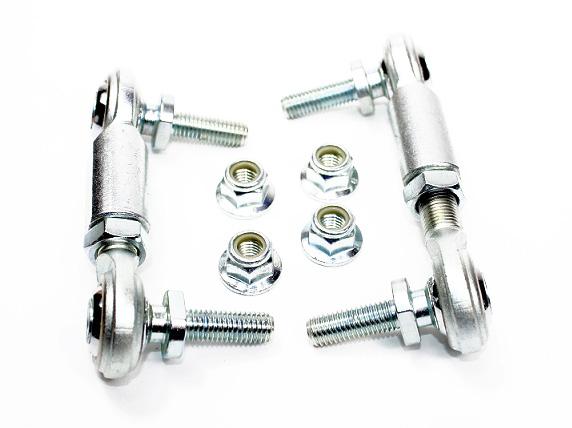

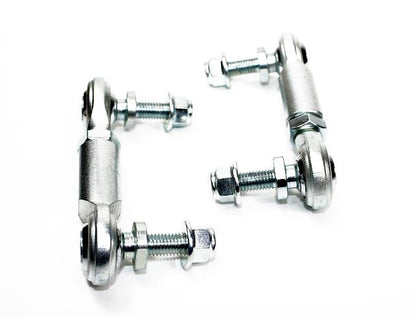

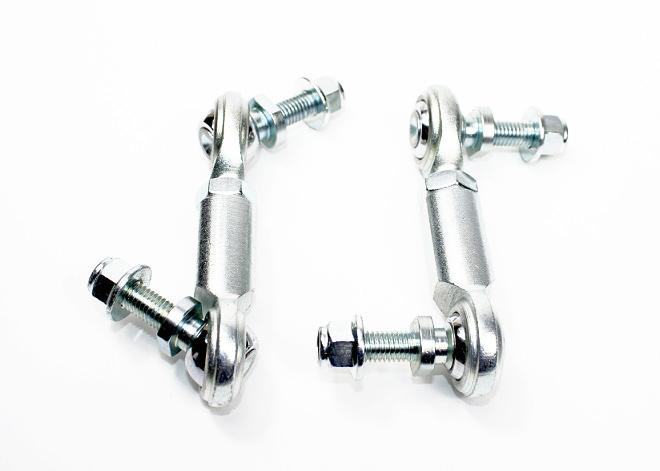

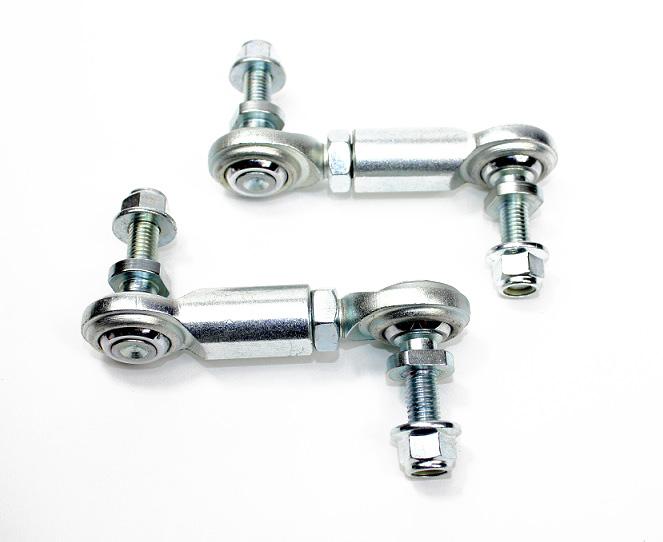

Our sway bar Endlinks for the 1989-1997 Mazda Miata (NA) feature massive Teflon lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars, and custom made high misalignment studs that offer extreme articulation capability (65deg) to prevent the endlink from binding when used with different adjustment holes on aftermarket sway bars.

Our endlinks are also length adjustable to eliminate preload on the sway bars, which can result from uneven settling of springs or uneven suspension heights from corner weighting. Black anodized 6061 aluminum turnbuckles work in conjunction with the left and right hand threaded rod ends for simple and precise adjustment.

Made in the USA

Standard Features

  • Enhanced Handling: Engineered to provide superior stiffness, these sway bars significantly improve cornering performance and reduce body roll, delivering a more responsive driving experience.
  • Custom Fit: Designed specifically for the 991 chassis, ensuring precise compatibility and easy installation without the need for extensive modifications.
  • Adjustable Settings: Features multiple adjustment points, allowing you to fine-tune the sway bar stiffness to match your driving style, whether for daily driving or track use.
  • High-Quality Materials: Constructed from durable materials, including heat-treated steel for the sway bars and robust aluminum for the end links, ensuring long-lasting performance under demanding conditions.
  • Lightweight Design: The lightweight construction minimizes added weight while maximizing

Installation Instructions

Specifications
Part Number SPL RE NC
Part Name Rear End Links
UPC 887753909640
Vehicle 1989-1997 Mazda Miata (NA)
Quantity Pair of 2
Vehicle Fitment
  • 1989 Mazda Miata (NA)
  • 1990 Mazda Miata (NA)
  • 1991 Mazda Miata (NA)
  • 1992 Mazda Miata (NA)
  • 1993 Mazda Miata (NA)
  • 1994 Mazda Miata (NA)
  • 1995 Mazda Miata (NA)
  • 1996 Mazda Miata (NA)
  • 1997 Mazda Miata (NA)
