| Year | Make | Model |
|---|---|---|
| 2011 | BMW | 1 Series M Base |
| 2008 - 2013 | BMW | 128i Base |
| 2008 - 2013 | BMW | 135i Base |
| 2013 | BMW | 135is Base |
| 2006 | BMW | 325i Base |
| 2006 | BMW | 325xi Base |
| 2007 - 2013 | BMW | 328i Base |
| 2009 - 2013 | BMW | 328i xDrive Base |
| 2007 - 2008 | BMW | 328xi Base |
| 2006 | BMW | 330i Base |
| 2006 | BMW | 330xi Base |
| 2009 - 2011 | BMW | 335d Base |
| 2007 - 2013 | BMW | 335i Base |
| 2009 - 2013 | BMW | 335i xDrive Base |
| 2011 - 2013 | BMW | 335is Base |
| 2007 - 2008 | BMW | 335xi Base |
| 2016 - 2018 | BMW | M2 Base |
| 2019 - 2021 | BMW | M2 Competition |
| 2020 | BMW | M2 CS |
| 2008 - 2013 | BMW | M3 Base |
| 2015 - 2018 | BMW | M3 Base |
| 2015 - 2020 | BMW | M4 Base |
| 2019 - 2020 | BMW | M4 CS |
| 2016 | BMW | M4 GTS |
SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2006 BMW 330xi (E90)
SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2006 BMW 330xi (E90)
SKU:SPL RLBI E9X
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
The SPL Parts Rear Lower Control Arm Inner Bushing Kit is a high-performance upgrade designed for the 2006-2011 BMW 323i (E90). This kit replaces the original rubber bushings that connect the lower control arm to the subframe with PTFE-lined spherical bearings, significantly reducing deflection and binding during heavy loads. The spherical bearings enhance handling precision by maintaining consistent camber and toe geometry under various driving conditions. Constructed with durable materials, these bushings minimize friction and NVH, resulting in improved ride quality and responsiveness. They are engineered to withstand demanding driving environments, making them ideal for enthusiasts seeking enhanced control and stability.
Designed specifically for the E90 chassis, these bushings are a direct replacement for the OEM components, ensuring a straightforward installation process. They are suitable for street and track use, providing increased durability and performance under aggressive driving. The kit includes all necessary components for installation, offering a complete upgrade solution. Compatible with 2006-2011 BMW 323i models, these bushings are ideal for drivers aiming to improve handling, reduce unwanted movement, and achieve a more precise steering feel. Proper installation ensures optimal performance and longevity of the suspension system.
Share
Overview
Overview

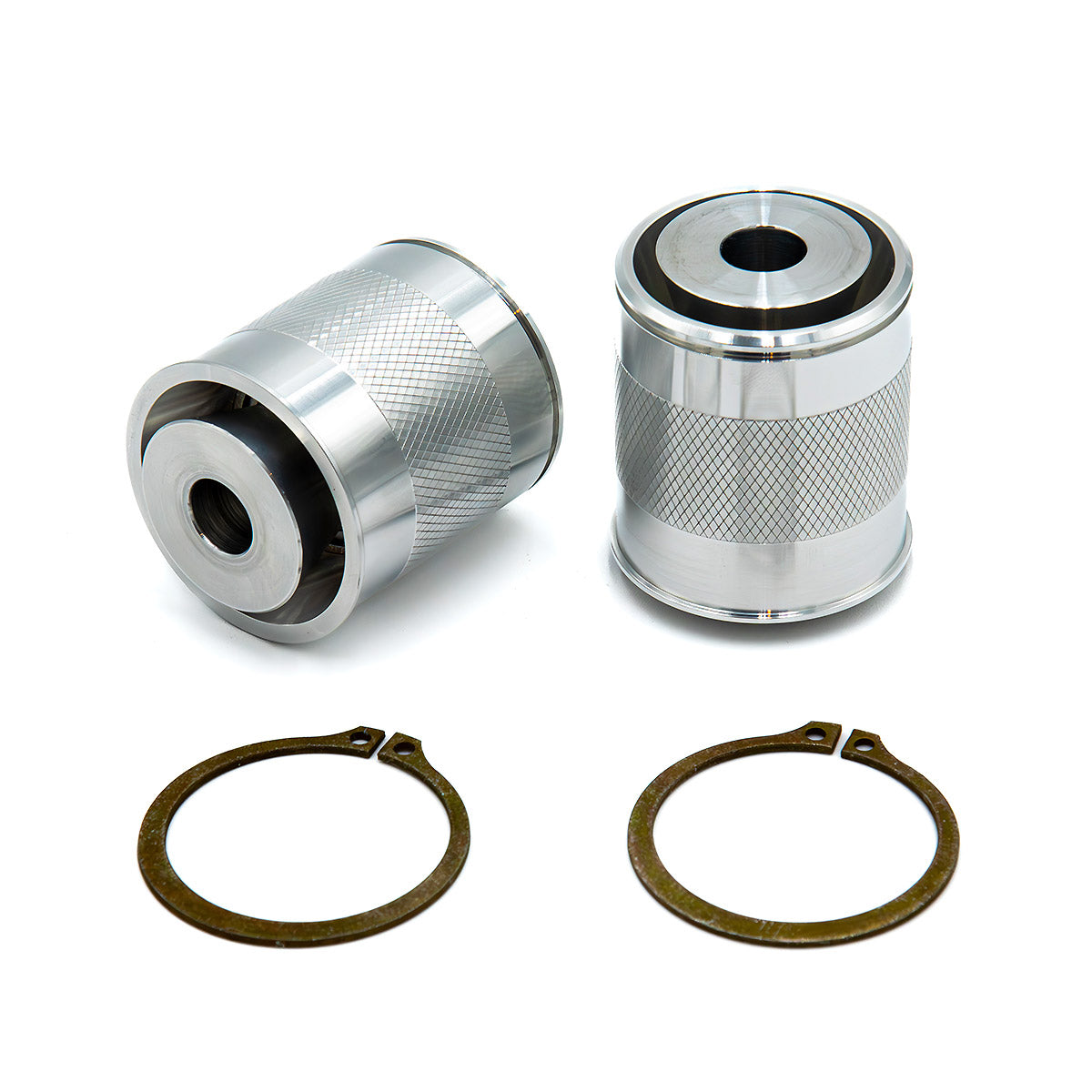

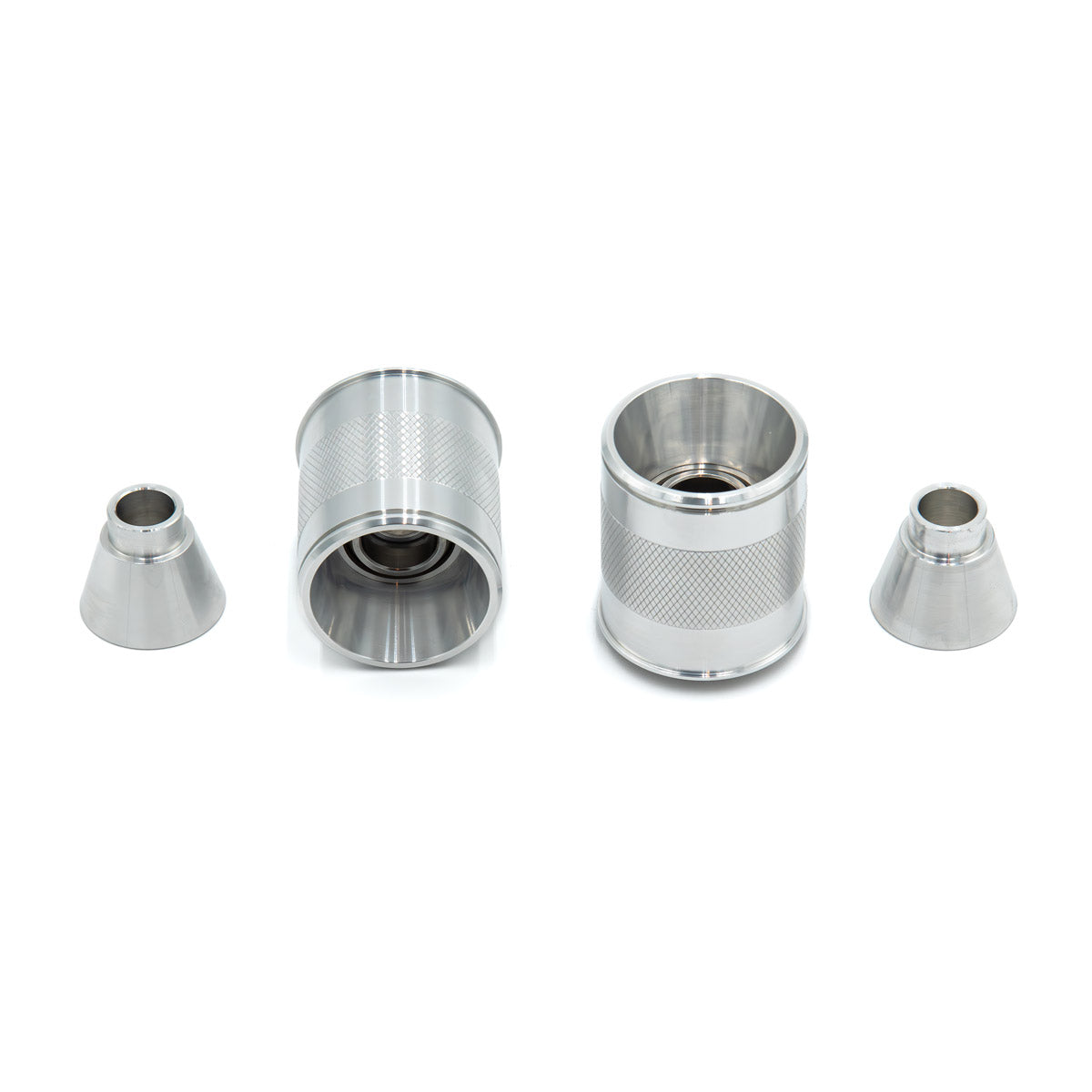

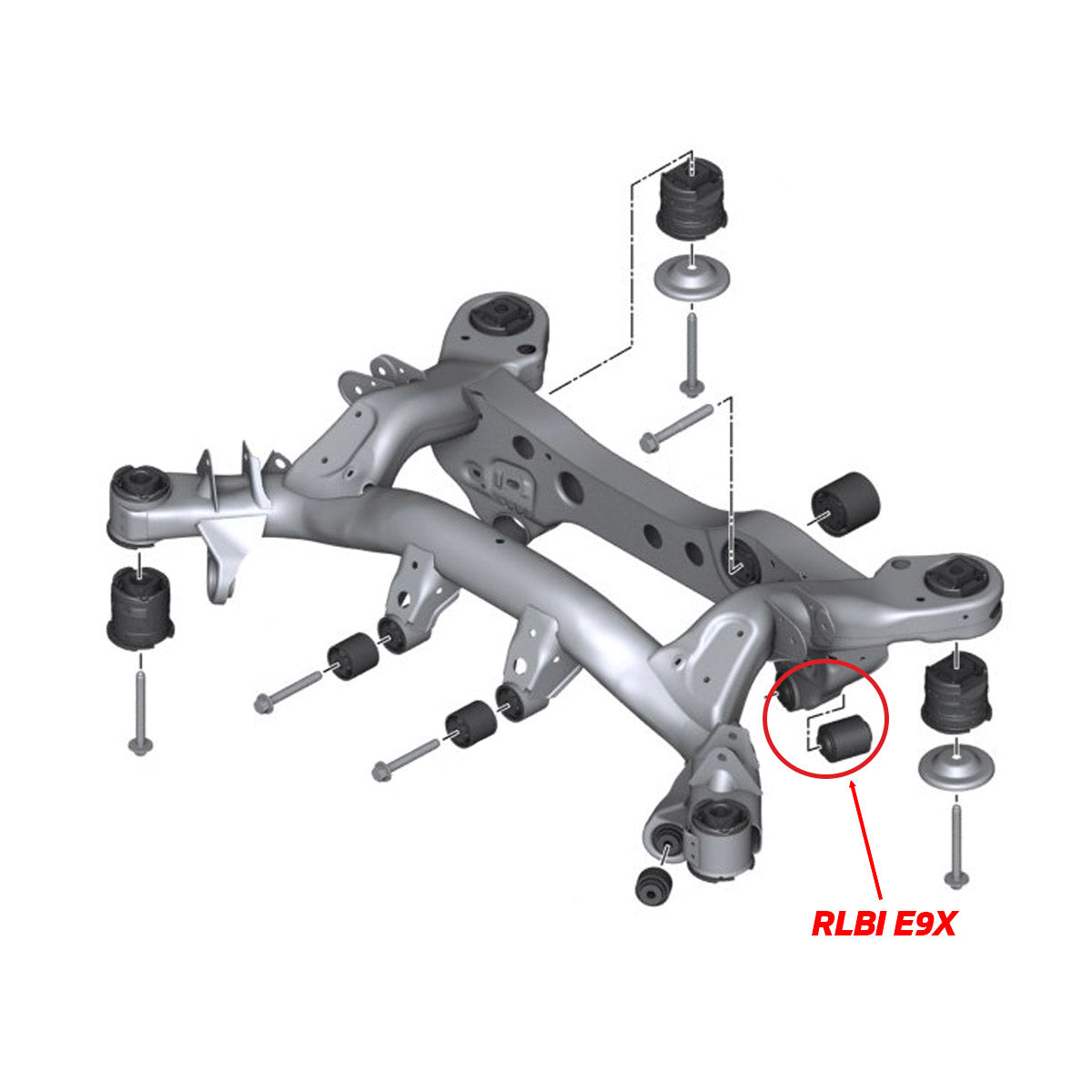

These Rear Lower Control Arm Inner Bushings for the 2006-2011 BMW 323i (E90) replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.
Standard Features
- Improved Rear Cornering Grip
- Eliminates OEM Bushing Deflection and Binding
- Precise Dynamic Geometry, Stability, and Handling
- Maintenance-Free, US Made, PTFE-Lined FK Bearings
- 6061-T6 aluminum bearing shells and spacers
- FK PTFE-lined spherical bearings (F1 spec, self-cleaning)
- Sold as a pair.
Specifications
| Part Number | SPL RLBI E9X |
| Part Name | Rear Lower Control Arm Inner Bushing Kit |
| UPC | 887753915436 |
| Vehicle | 2006-2011 BMW 323i (E90) |
Vehicle Fitment
- 2006 BMW 323i (E90)
- 2007 BMW 323i (E90)
- 2008 BMW 323i (E90)
- 2009 BMW 323i (E90)
- 2010 BMW 323i (E90)
- 2011 BMW 323i (E90)
