| Year | Make | Model |
|---|---|---|
| 2011 | BMW | 1 Series M Base |
| 2008 - 2013 | BMW | 128i Base |
| 2008 - 2013 | BMW | 135i Base |
| 2013 | BMW | 135is Base |
| 2006 | BMW | 325i Base |
| 2006 | BMW | 325xi Base |
| 2007 - 2013 | BMW | 328i Base |
| 2009 - 2013 | BMW | 328i xDrive Base |
| 2007 - 2008 | BMW | 328xi Base |
| 2006 | BMW | 330i Base |
| 2006 | BMW | 330xi Base |
| 2009 - 2011 | BMW | 335d Base |
| 2007 - 2013 | BMW | 335i Base |
| 2009 - 2013 | BMW | 335i xDrive Base |
| 2011 - 2013 | BMW | 335is Base |
| 2007 - 2008 | BMW | 335xi Base |
| 2016 - 2018 | BMW | M2 Base |
| 2019 - 2021 | BMW | M2 Competition |
| 2020 | BMW | M2 CS |
| 2008 - 2013 | BMW | M3 Base |
| 2015 - 2018 | BMW | M3 Base |
| 2015 - 2020 | BMW | M4 Base |
| 2019 - 2020 | BMW | M4 CS |
| 2016 | BMW | M4 GTS |

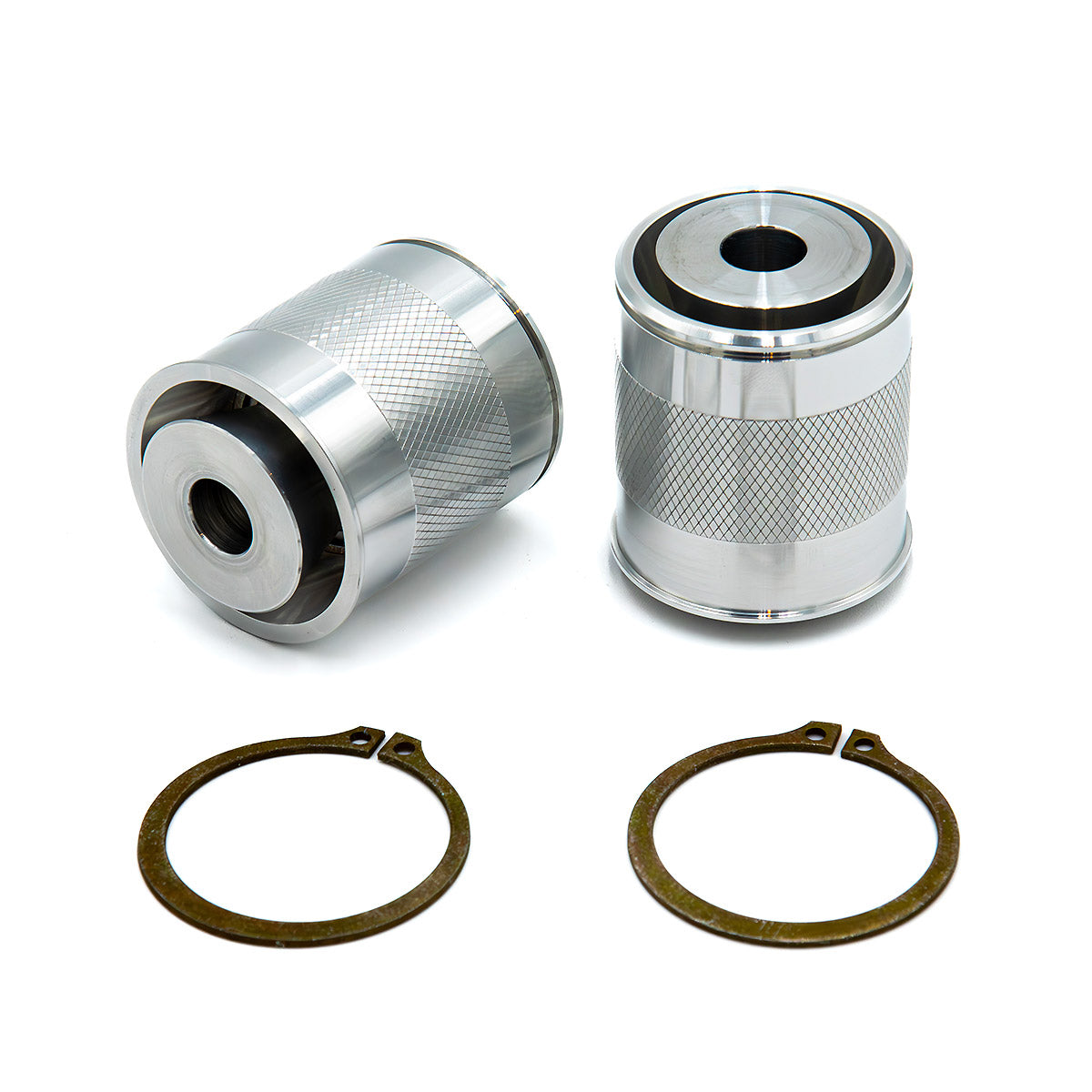

SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2011 BMW 328i (E90)
SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2011 BMW 328i (E90)
SKU:SPL RLBI E9X
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The SPL Parts Rear Lower Control Arm Inner Bushing Kit is a high-performance upgrade designed for the 2009-2011 BMW 328i (E90). This kit replaces the original rubber bushings that connect the lower control arm to the subframe with PTFE-lined spherical bearings, significantly enhancing suspension response. The spherical bearings eliminate deflection and binding under heavy loads, maintaining precise camber and toe settings during dynamic driving conditions. Constructed with durable materials, these bushings reduce friction and NVH, resulting in improved handling, stability, and ride quality. They are engineered to withstand demanding driving environments, making them ideal for enthusiasts seeking a more responsive suspension setup.
Designed specifically for the 2006-2011 BMW 3 Series E90 models, including the 328i, these bushings are a direct replacement for OEM components. They are suitable for street and track use, providing a noticeable upgrade in suspension performance. Installation involves replacing the factory bushings with these spherical bearing units, offering a bolt-on upgrade that enhances control and reduces unwanted movement. The kit includes the necessary bushings for both sides, ensuring a straightforward installation process. These components are ideal for drivers aiming to improve handling characteristics and suspension durability on their BMW E90.
Share
Overview
Overview

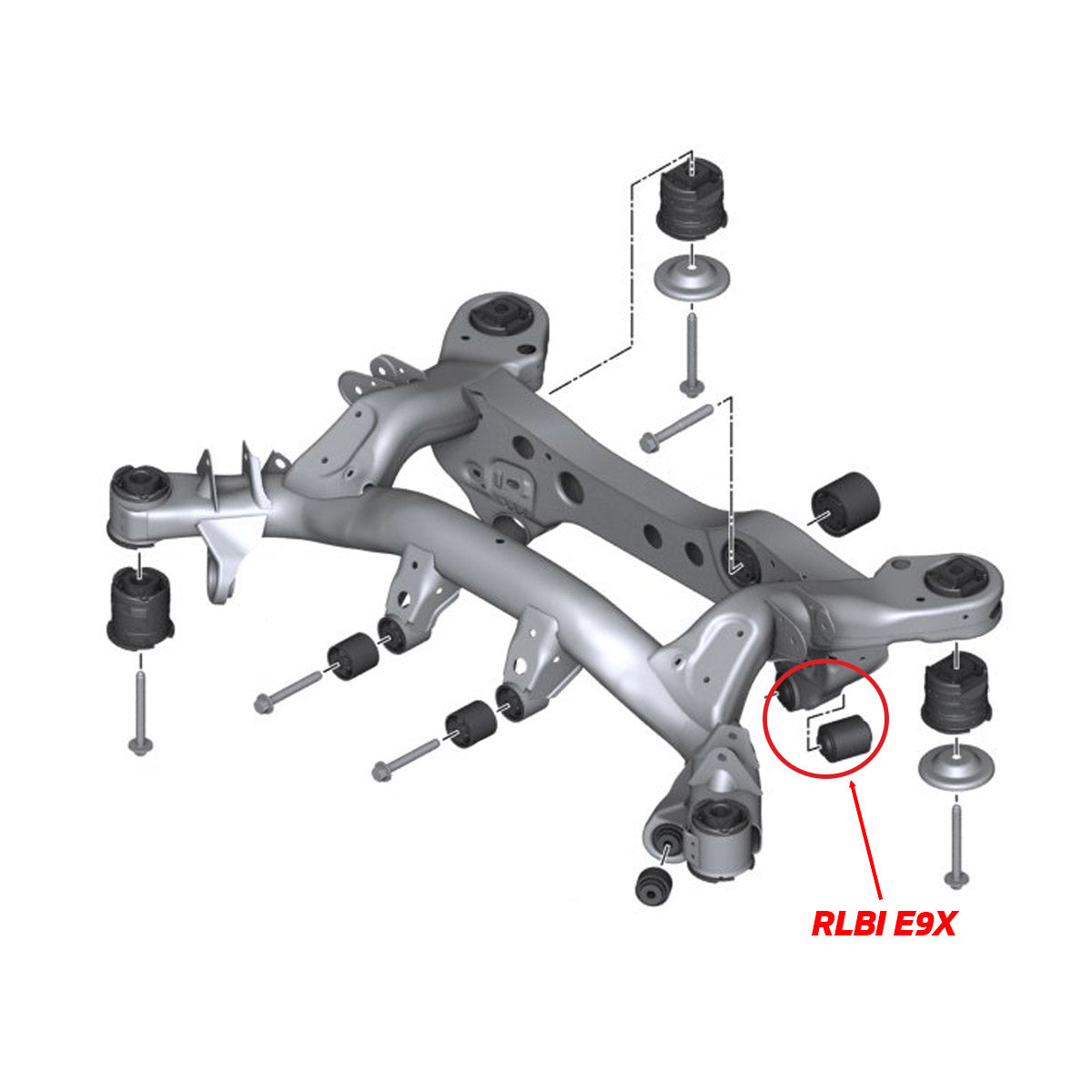

These Rear Lower Control Arm Inner Bushings for the 2006-2011 BMW 323i (E90) replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.
Standard Features
- Improved Rear Cornering Grip
- Eliminates OEM Bushing Deflection and Binding
- Precise Dynamic Geometry, Stability, and Handling
- Maintenance-Free, US Made, PTFE-Lined FK Bearings

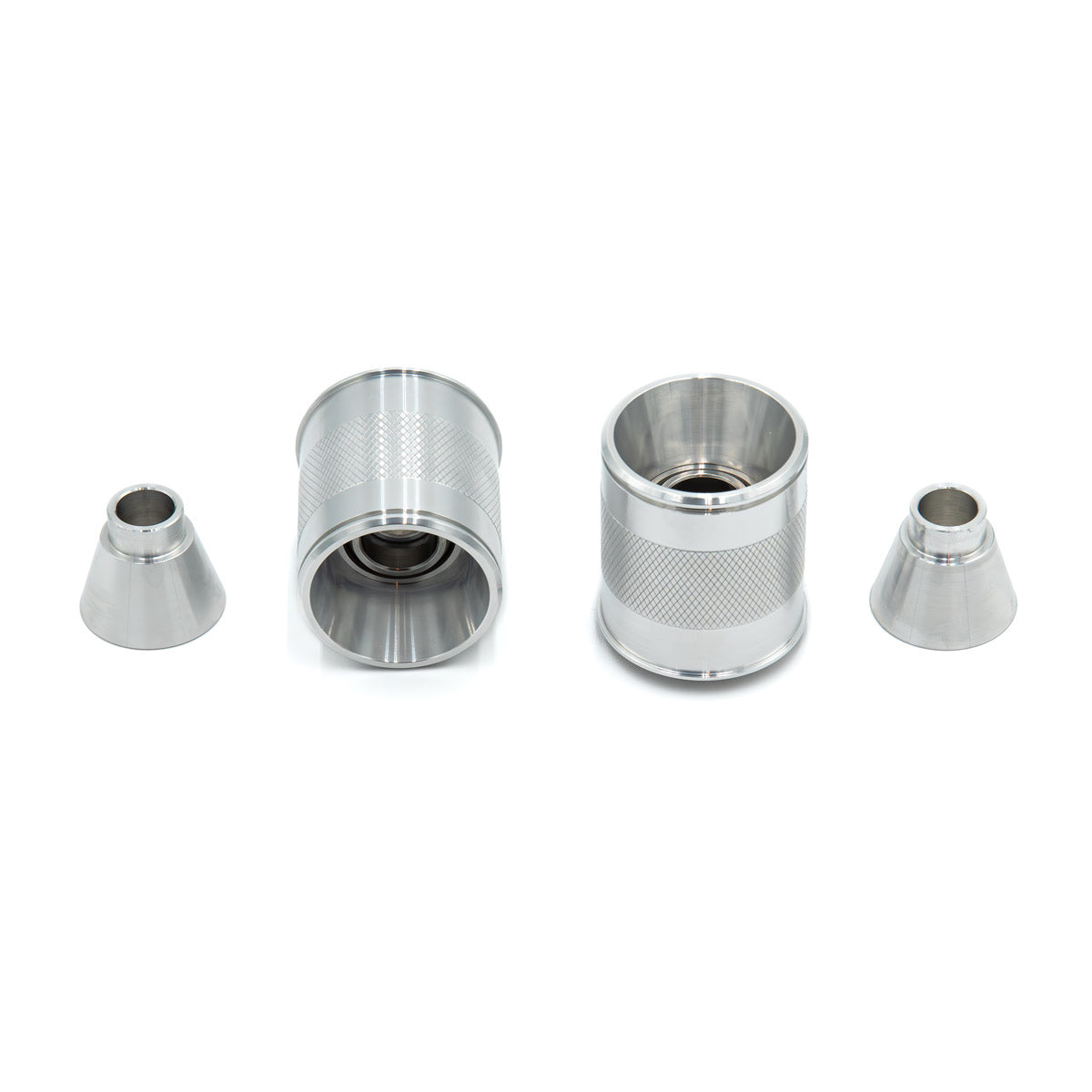

- 6061-T6 aluminum bearing shells and spacers
- FK PTFE-lined spherical bearings (F1 spec, self-cleaning)
- Sold as a pair.
Specifications
| Part Number | SPL RLBI E9X |
| Part Name | Rear Lower Control Arm Inner Bushing Kit |
| UPC | 887753915436 |
| Vehicle | 2006-2011 BMW 323i (E90) |
Vehicle Fitment
- 2006 BMW 323i (E90)
- 2007 BMW 323i (E90)
- 2008 BMW 323i (E90)
- 2009 BMW 323i (E90)
- 2010 BMW 323i (E90)
- 2011 BMW 323i (E90)
