| Year | Make | Model |
|---|---|---|
| 2011 | BMW | 1 Series M Base |
| 2008 - 2013 | BMW | 128i Base |
| 2008 - 2013 | BMW | 135i Base |
| 2013 | BMW | 135is Base |
| 2006 | BMW | 325i Base |
| 2006 | BMW | 325xi Base |
| 2007 - 2013 | BMW | 328i Base |
| 2009 - 2013 | BMW | 328i xDrive Base |
| 2007 - 2008 | BMW | 328xi Base |
| 2006 | BMW | 330i Base |
| 2006 | BMW | 330xi Base |
| 2009 - 2011 | BMW | 335d Base |
| 2007 - 2013 | BMW | 335i Base |
| 2009 - 2013 | BMW | 335i xDrive Base |
| 2011 - 2013 | BMW | 335is Base |
| 2007 - 2008 | BMW | 335xi Base |
| 2016 - 2018 | BMW | M2 Base |
| 2019 - 2021 | BMW | M2 Competition |
| 2020 | BMW | M2 CS |
| 2008 - 2013 | BMW | M3 Base |
| 2015 - 2018 | BMW | M3 Base |
| 2015 - 2020 | BMW | M4 Base |
| 2019 - 2020 | BMW | M4 CS |
| 2016 | BMW | M4 GTS |
SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2011 BMW 328i xDrive (E90)
SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2011 BMW 328i xDrive (E90)
SKU:SPL RLBI E9X
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments

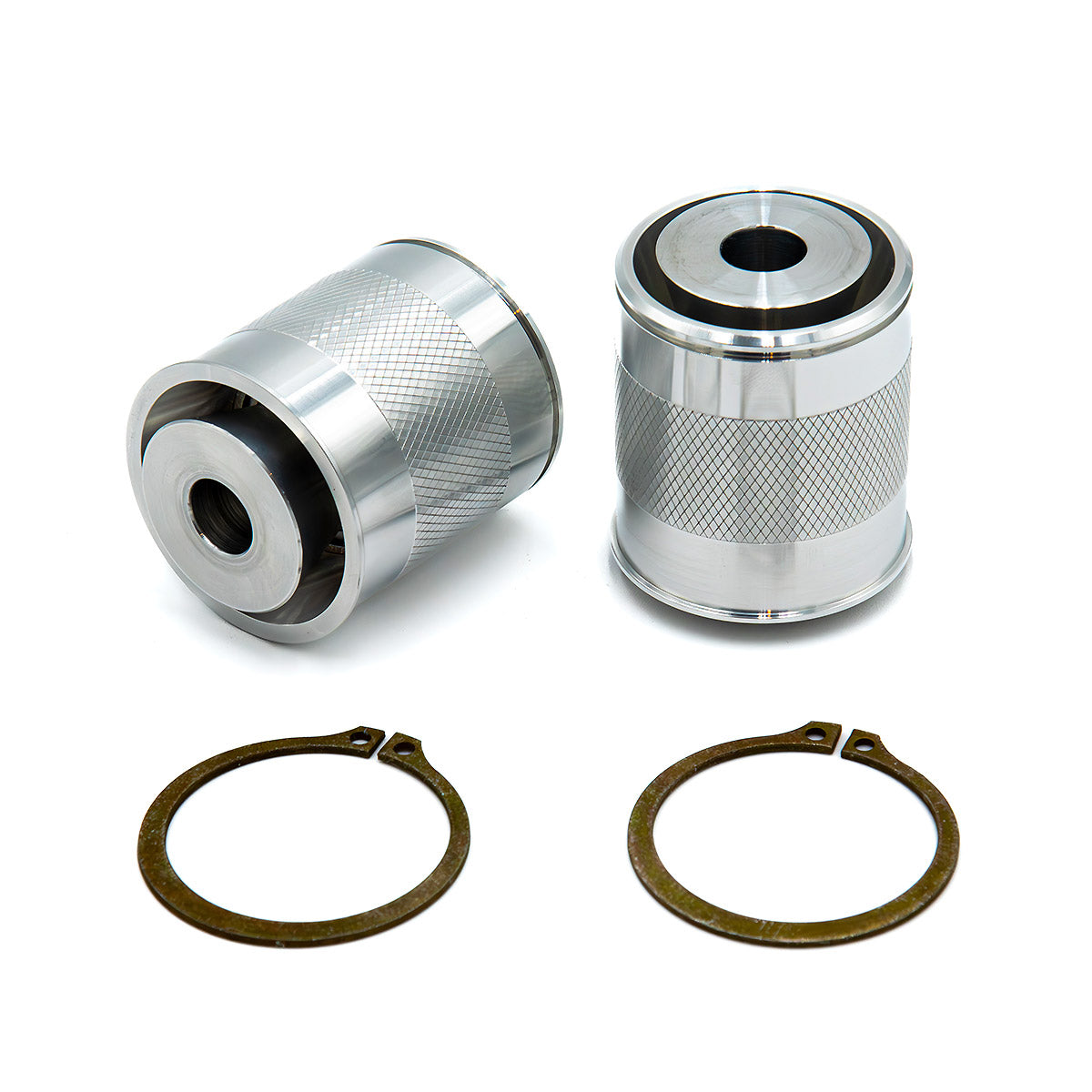

The SPL Parts Rear Lower Control Arm Inner Bushing Kit is a high-performance upgrade designed for the 2009-2011 BMW 328i xDrive (E90). This kit replaces the original rubber bushings with low-friction, PTFE-lined spherical bearings, significantly improving suspension response and reducing deflection and binding under heavy loads. Constructed with durable materials, these bushings help maintain proper camber and toe geometry during dynamic driving conditions, enhancing handling precision. The design minimizes friction within the suspension movement, leading to a smoother ride and improved overall stability, especially during aggressive driving or track use.
Specifically engineered for the 2009-2011 BMW 328i xDrive (E90), these inner bushings are a direct replacement for the OEM components, ensuring compatibility and straightforward installation. They are suitable for street and track applications, providing increased durability and performance over stock bushings. The kit includes the necessary spherical bearings for both sides, offering a comprehensive solution to improve suspension articulation and responsiveness. Ideal for enthusiasts seeking to optimize their vehicle’s handling, these bushings are a reliable upgrade for maintaining precise suspension geometry under demanding conditions.
Share
Overview
Overview

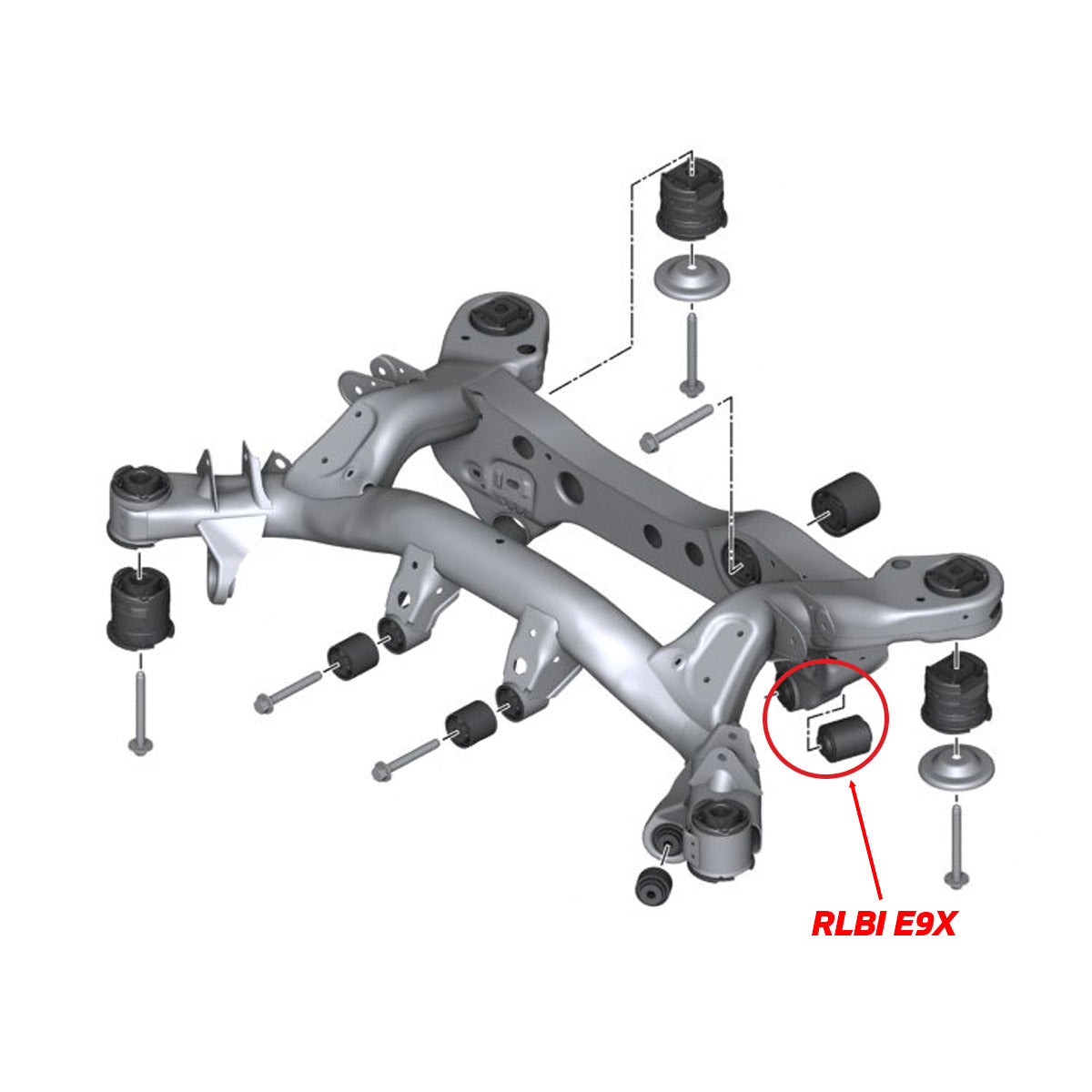

These Rear Lower Control Arm Inner Bushings for the 2006-2011 BMW 323i (E90) replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.
Standard Features
- Improved Rear Cornering Grip
- Eliminates OEM Bushing Deflection and Binding
- Precise Dynamic Geometry, Stability, and Handling
- Maintenance-Free, US Made, PTFE-Lined FK Bearings

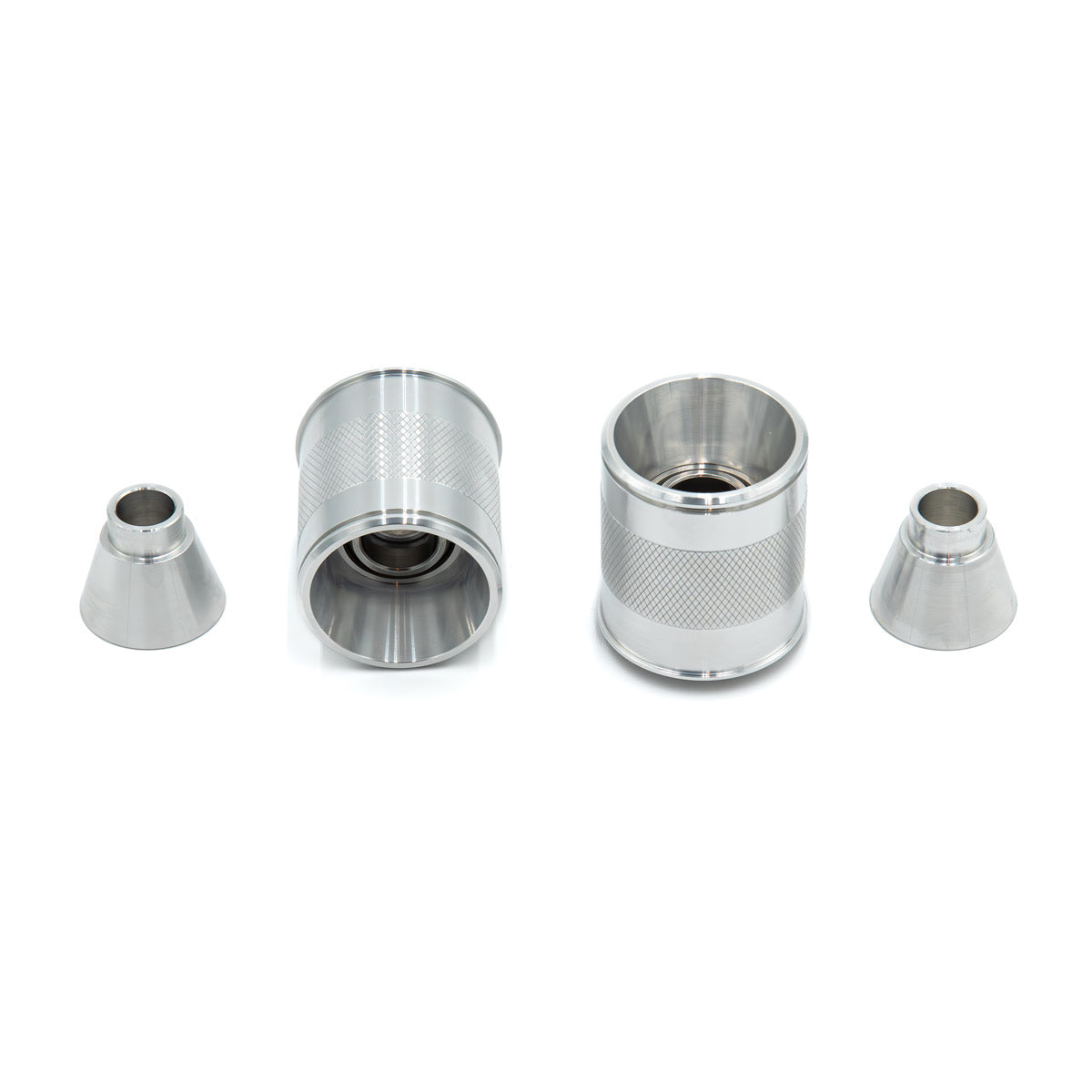

- 6061-T6 aluminum bearing shells and spacers
- FK PTFE-lined spherical bearings (F1 spec, self-cleaning)
- Sold as a pair.
Specifications
| Part Number | SPL RLBI E9X |
| Part Name | Rear Lower Control Arm Inner Bushing Kit |
| UPC | 887753915436 |
| Vehicle | 2006-2011 BMW 323i (E90) |
Vehicle Fitment
- 2006 BMW 323i (E90)
- 2007 BMW 323i (E90)
- 2008 BMW 323i (E90)
- 2009 BMW 323i (E90)
- 2010 BMW 323i (E90)
- 2011 BMW 323i (E90)
