| Year | Make | Model |
|---|---|---|
| 2011 | BMW | 1 Series M Base |
| 2008 - 2013 | BMW | 128i Base |
| 2008 - 2013 | BMW | 135i Base |
| 2013 | BMW | 135is Base |
| 2006 | BMW | 325i Base |
| 2006 | BMW | 325xi Base |
| 2007 - 2013 | BMW | 328i Base |
| 2009 - 2013 | BMW | 328i xDrive Base |
| 2007 - 2008 | BMW | 328xi Base |
| 2006 | BMW | 330i Base |
| 2006 | BMW | 330xi Base |
| 2009 - 2011 | BMW | 335d Base |
| 2007 - 2013 | BMW | 335i Base |
| 2009 - 2013 | BMW | 335i xDrive Base |
| 2011 - 2013 | BMW | 335is Base |
| 2007 - 2008 | BMW | 335xi Base |
| 2016 - 2018 | BMW | M2 Base |
| 2019 - 2021 | BMW | M2 Competition |
| 2020 | BMW | M2 CS |
| 2008 - 2013 | BMW | M3 Base |
| 2015 - 2018 | BMW | M3 Base |
| 2015 - 2020 | BMW | M4 Base |
| 2019 - 2020 | BMW | M4 CS |
| 2016 | BMW | M4 GTS |

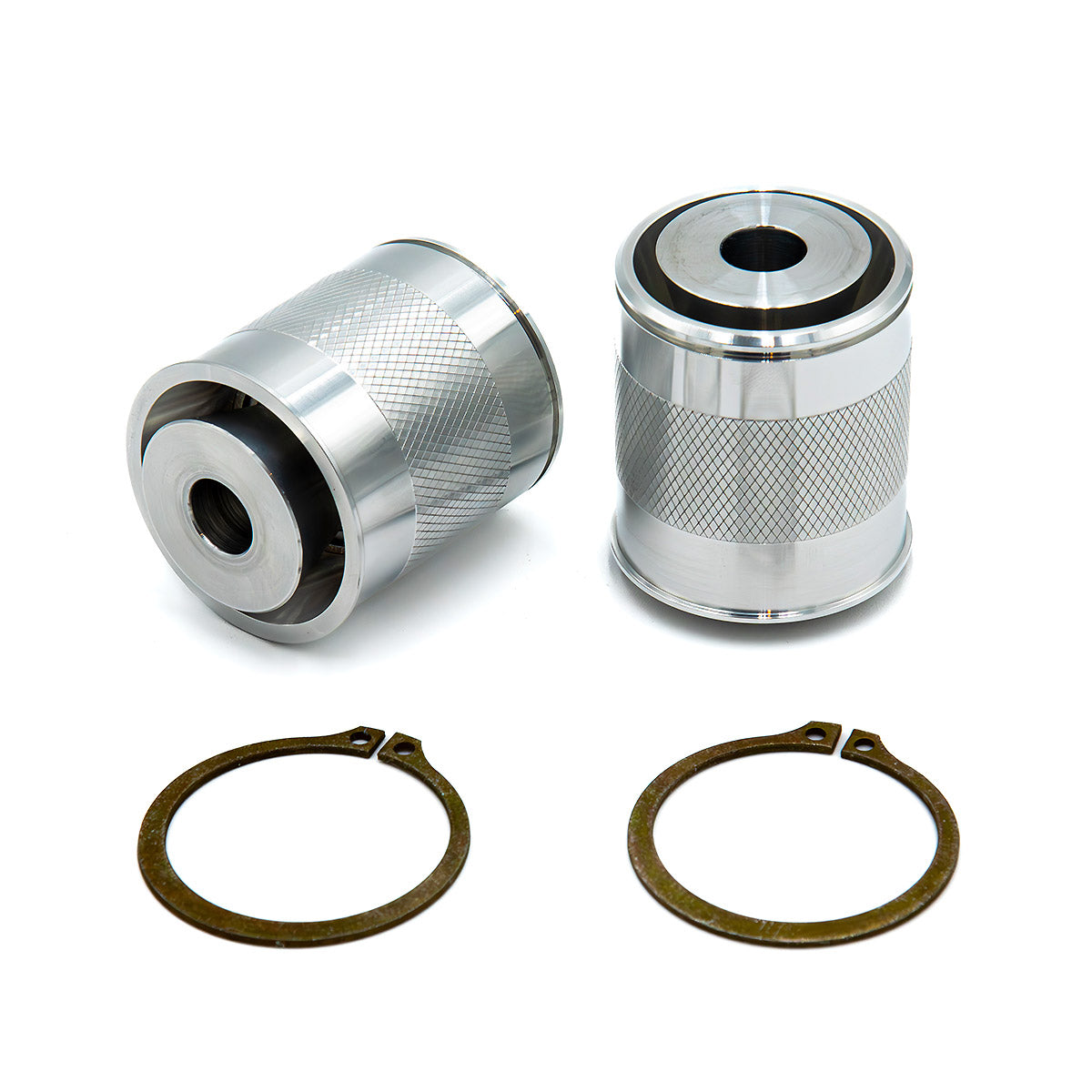

SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2011 BMW 335d (E90)
SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2011 BMW 335d (E90)
SKU:SPL RLBI E9X
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The SPL Parts Rear Lower Control Arm Inner Bushing Kit is designed for the 2009-2011 BMW 335d (E90) to enhance suspension performance and handling precision. This kit replaces the OEM rubber bushings with PTFE-lined spherical bearings, which significantly reduce deflection and binding under heavy loads. The upgraded bushings help maintain proper camber and toe geometry during dynamic driving conditions, resulting in improved stability and steering response. Constructed with durable materials, these bushings minimize friction and NVH, providing a smoother, more controlled ride while increasing component longevity.
Specifically engineered for the BMW E90 chassis from 2006 to 2011, these inner bushings are a direct replacement for the factory components. They are suitable for street and track use, offering a performance upgrade that enhances suspension articulation and responsiveness. Installation involves replacing the original rubber bushings with these spherical bearings, ensuring a secure fit and reliable operation. The kit includes all necessary components for a straightforward upgrade, making it ideal for enthusiasts seeking improved handling and durability in their BMW 3 Series.
Share
Overview
Overview

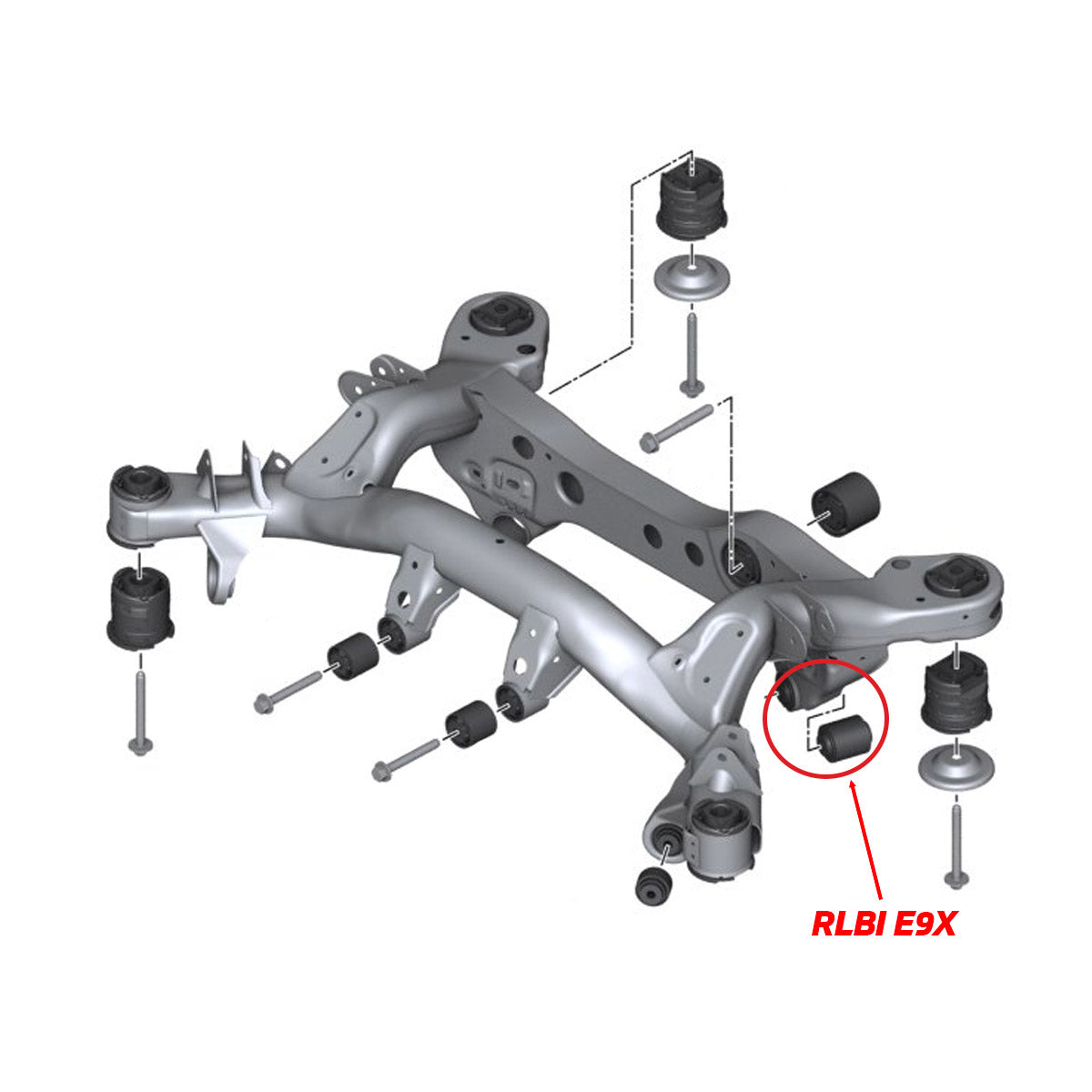

These Rear Lower Control Arm Inner Bushings for the 2006-2011 BMW 323i (E90) replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.
Standard Features
- Improved Rear Cornering Grip
- Eliminates OEM Bushing Deflection and Binding
- Precise Dynamic Geometry, Stability, and Handling
- Maintenance-Free, US Made, PTFE-Lined FK Bearings

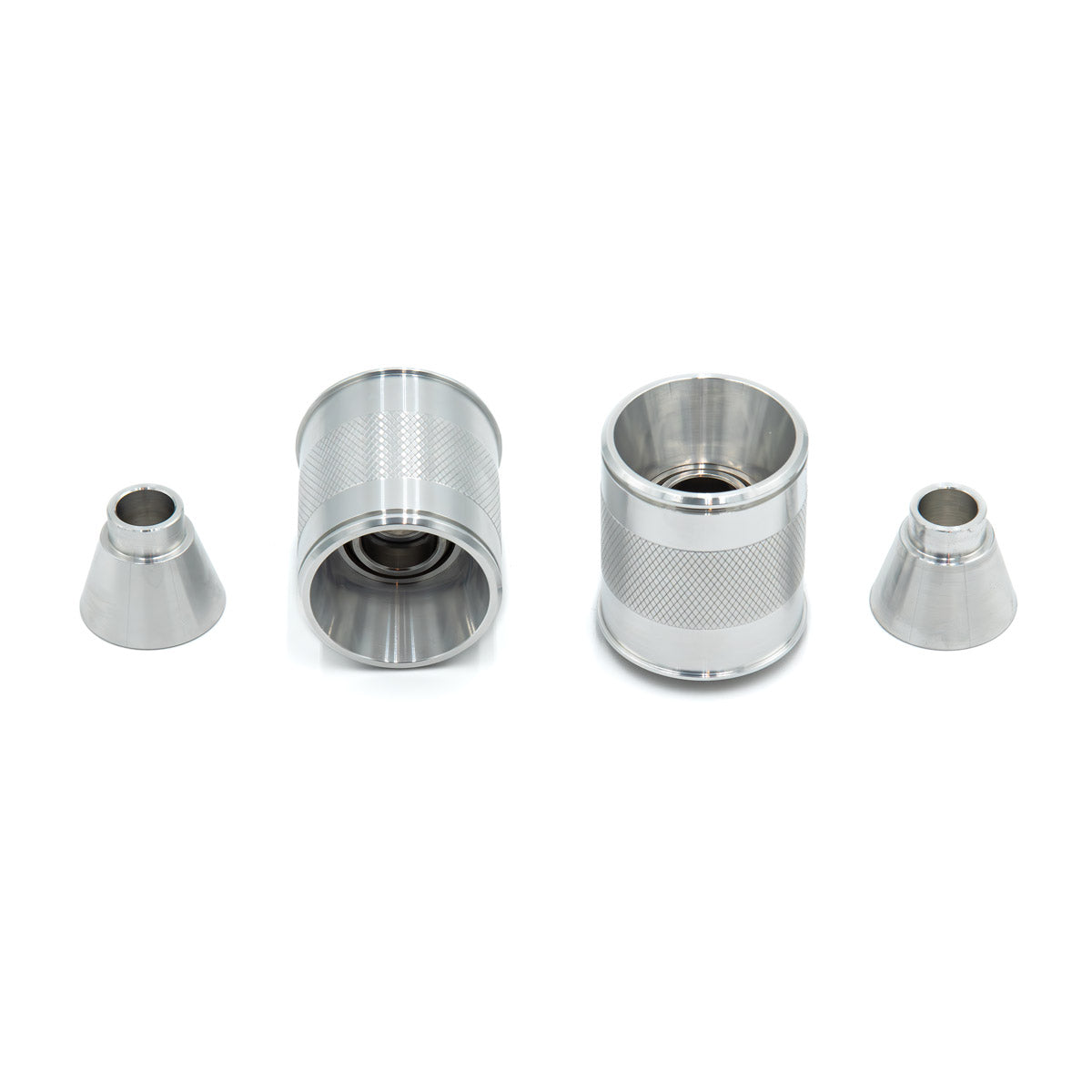

- 6061-T6 aluminum bearing shells and spacers
- FK PTFE-lined spherical bearings (F1 spec, self-cleaning)
- Sold as a pair.
Specifications
| Part Number | SPL RLBI E9X |
| Part Name | Rear Lower Control Arm Inner Bushing Kit |
| UPC | 887753915436 |
| Vehicle | 2006-2011 BMW 323i (E90) |
Vehicle Fitment
- 2006 BMW 323i (E90)
- 2007 BMW 323i (E90)
- 2008 BMW 323i (E90)
- 2009 BMW 323i (E90)
- 2010 BMW 323i (E90)
- 2011 BMW 323i (E90)
