SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2012 BMW 328i xDrive (E91)
SPL Parts Rear Lower Control Arm Inner Bushing Kit - 2009-2012 BMW 328i xDrive (E91)
SKU:SPL RLBI E9X
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments

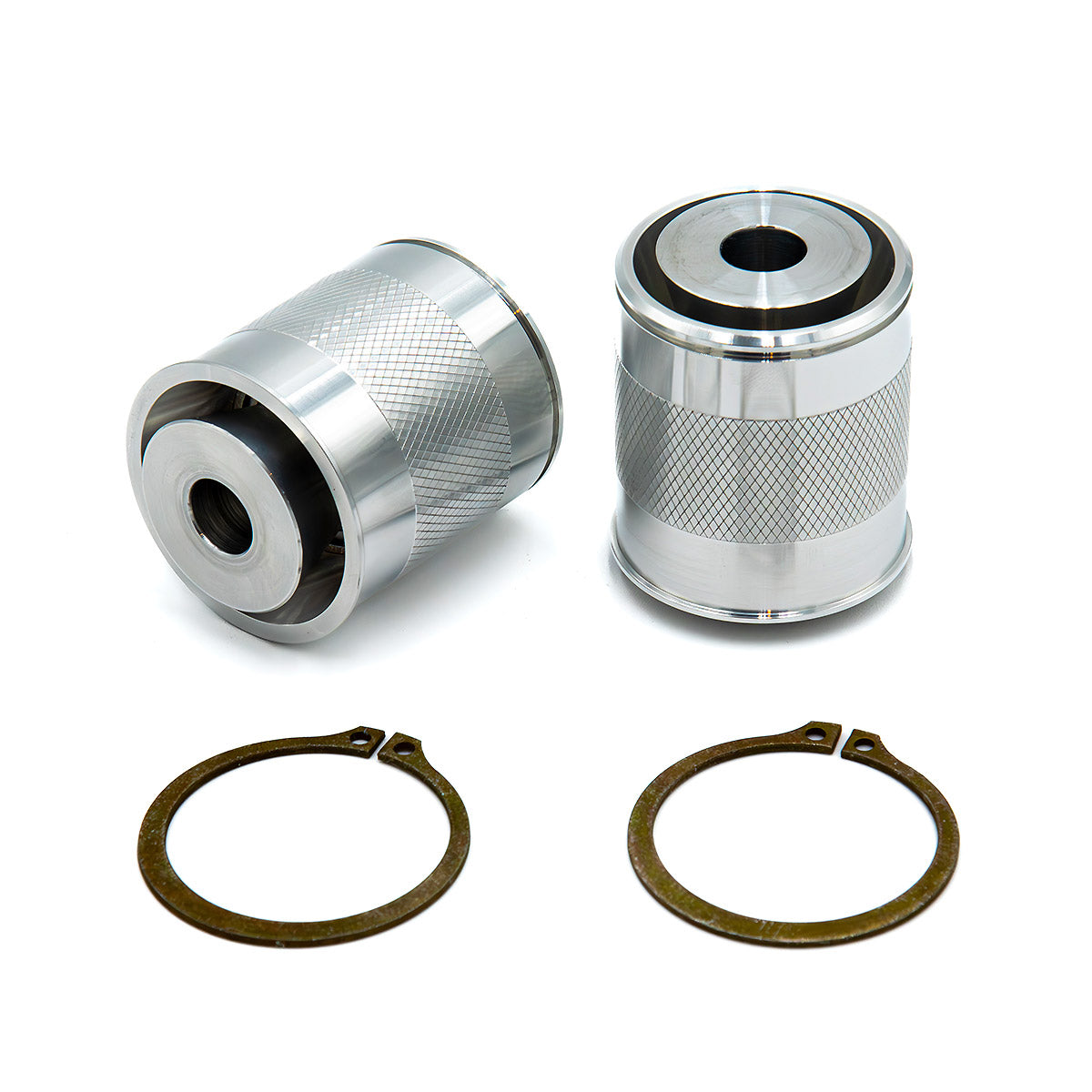

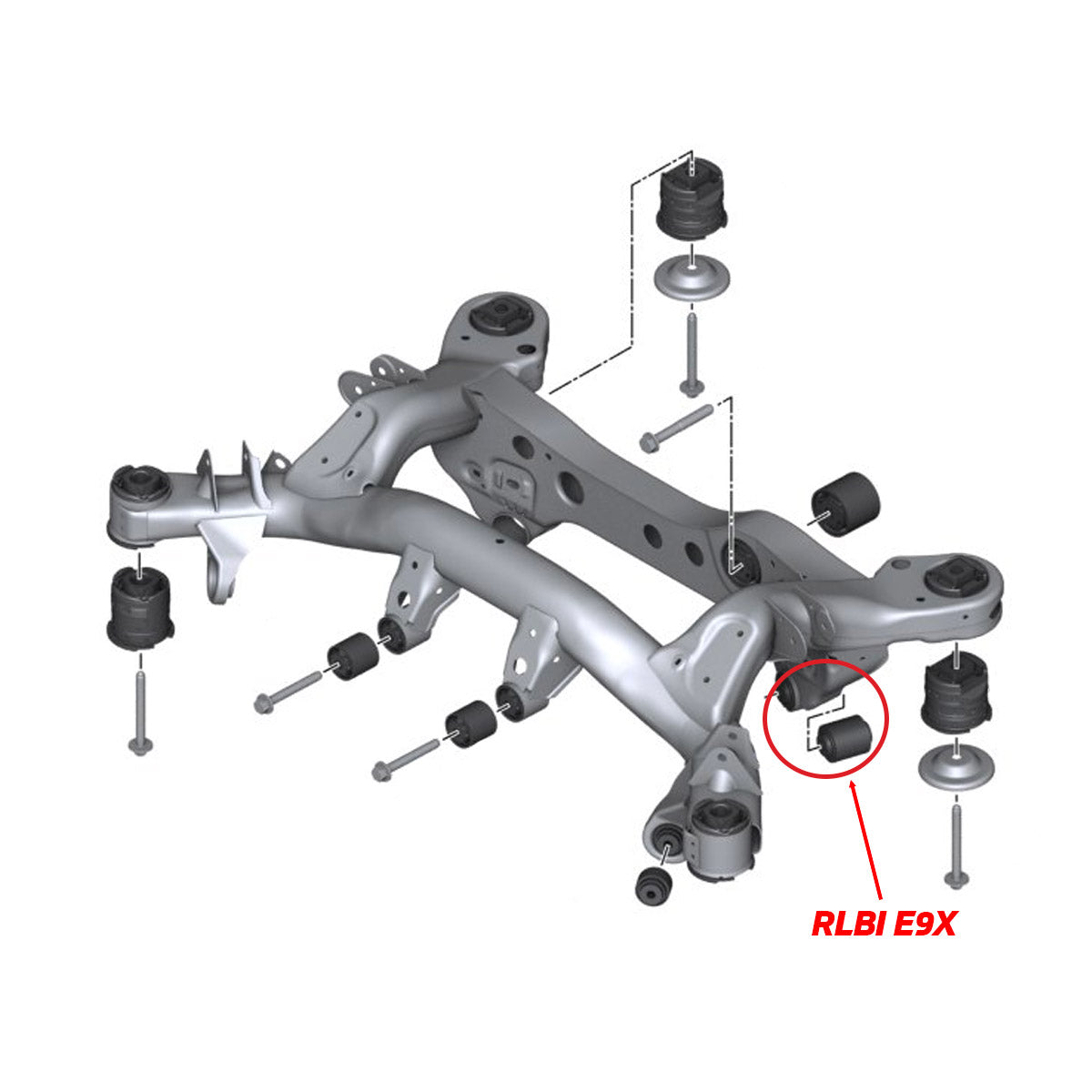

The SPL Parts Rear Lower Control Arm Inner Bushing Kit is a high-performance upgrade designed for the 2009-2012 BMW 328i xDrive (E91). This kit replaces the OEM rubber bushing that attaches the lower control arm to the subframe with a PTFE-lined spherical bearing, significantly reducing deflection and binding under heavy loads. The upgrade enhances handling precision by maintaining consistent camber and toe geometry during dynamic driving conditions. Constructed with durable materials, these bushings minimize friction and NVH, resulting in a smoother, more responsive ride while preserving suspension alignment.
Specifically engineered for the E91 chassis, this kit is compatible with the 2009-2012 BMW 328i xDrive models. It provides a direct replacement for the factory components, offering improved durability and performance for street and spirited driving. Installation involves replacing the stock bushings with these spherical bearings, which are designed for a straightforward bolt-on process. Ideal for enthusiasts seeking enhanced suspension response, this kit ensures long-lasting performance and precise control during aggressive driving or daily use.
Share
Overview
Overview
These Rear Lower Control Arm Inner Bushings for the 2006-2011 BMW 323i (E90) replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.
Standard Features
- Improved Rear Cornering Grip
- Eliminates OEM Bushing Deflection and Binding
- Precise Dynamic Geometry, Stability, and Handling
- Maintenance-Free, US Made, PTFE-Lined FK Bearings

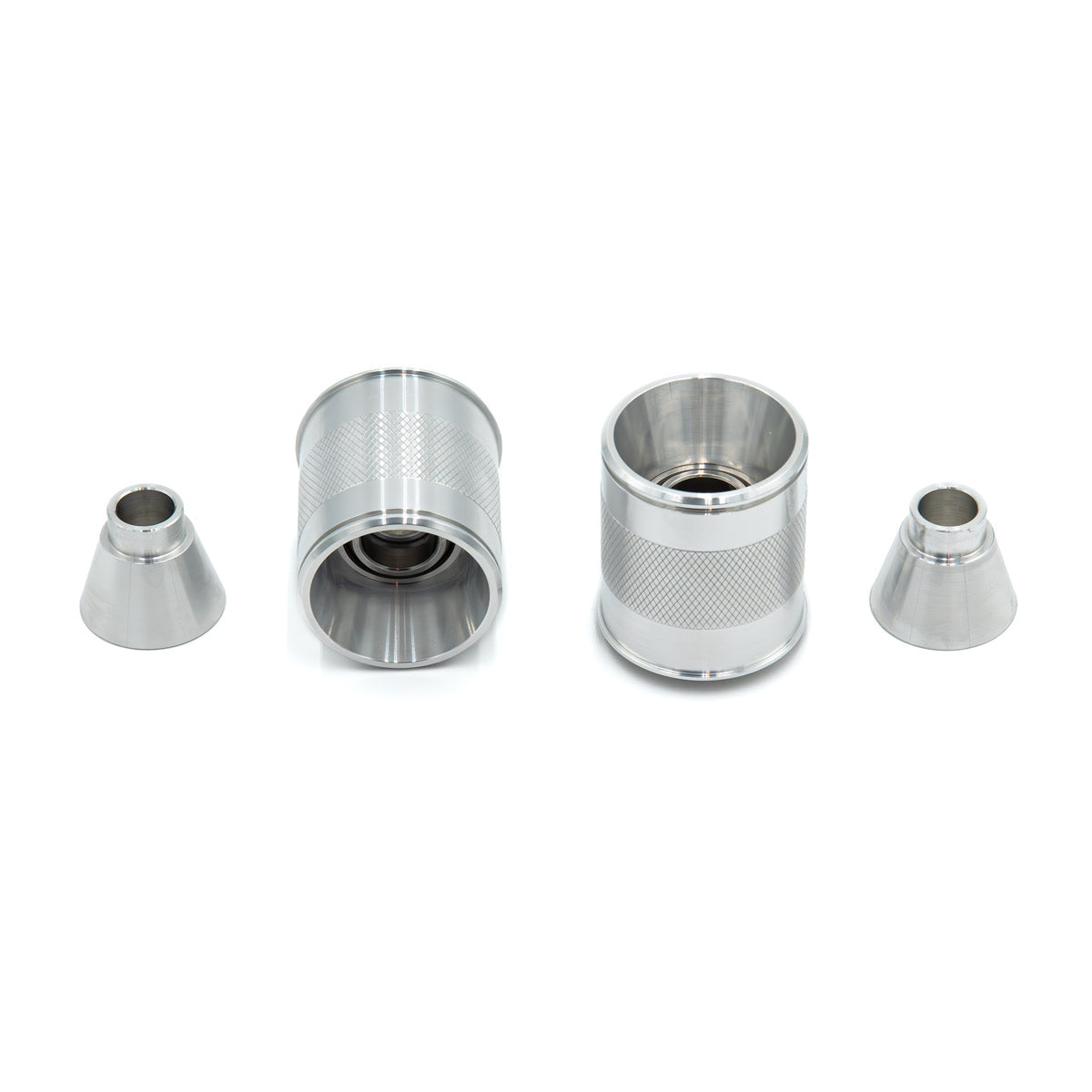

- 6061-T6 aluminum bearing shells and spacers
- FK PTFE-lined spherical bearings (F1 spec, self-cleaning)
- Sold as a pair.
Specifications
| Part Number | SPL RLBI E9X |
| Part Name | Rear Lower Control Arm Inner Bushing Kit |
| UPC | 887753915436 |
| Vehicle | 2006-2011 BMW 323i (E90) |
Vehicle Fitment
- 2006 BMW 323i (E90)
- 2007 BMW 323i (E90)
- 2008 BMW 323i (E90)
- 2009 BMW 323i (E90)
- 2010 BMW 323i (E90)
- 2011 BMW 323i (E90)
