SPL Parts Rear Sway Bar End Links - 2019-2023 Hyundai Veloster N (JSN)
SPL Parts Rear Sway Bar End Links - 2019-2023 Hyundai Veloster N (JSN)
SKU:SPL RE JSN
Out of stock
Regular price
$219.71 USD
Regular price
$249.00 USD
Sale price
$219.71 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments

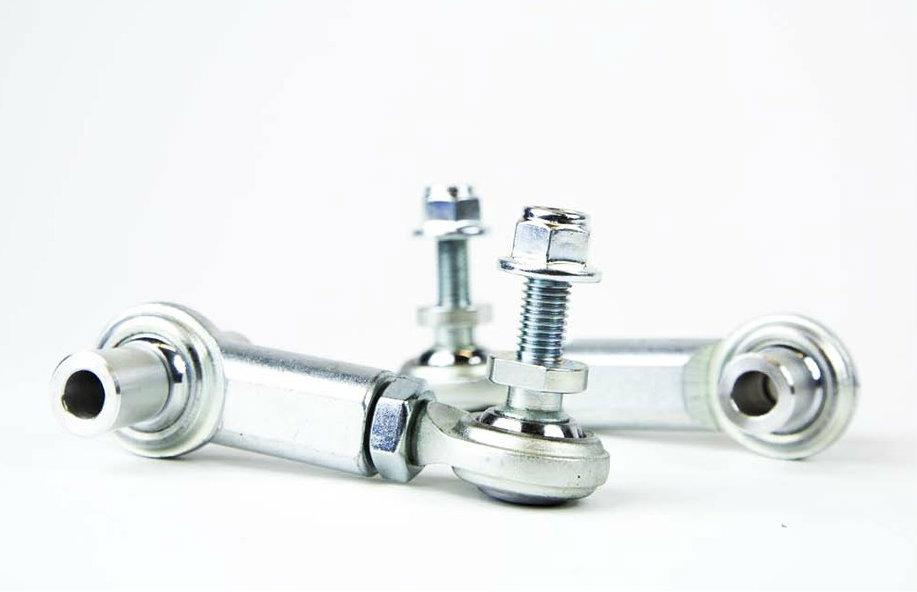

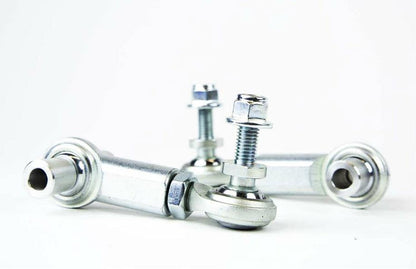

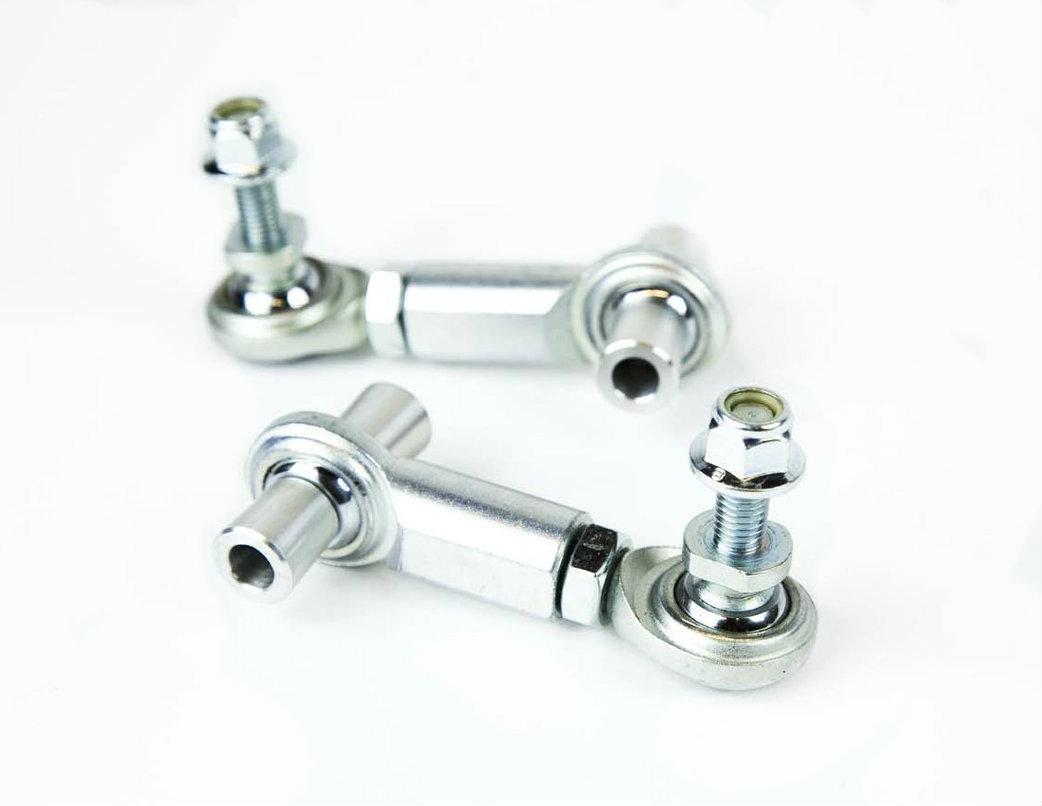

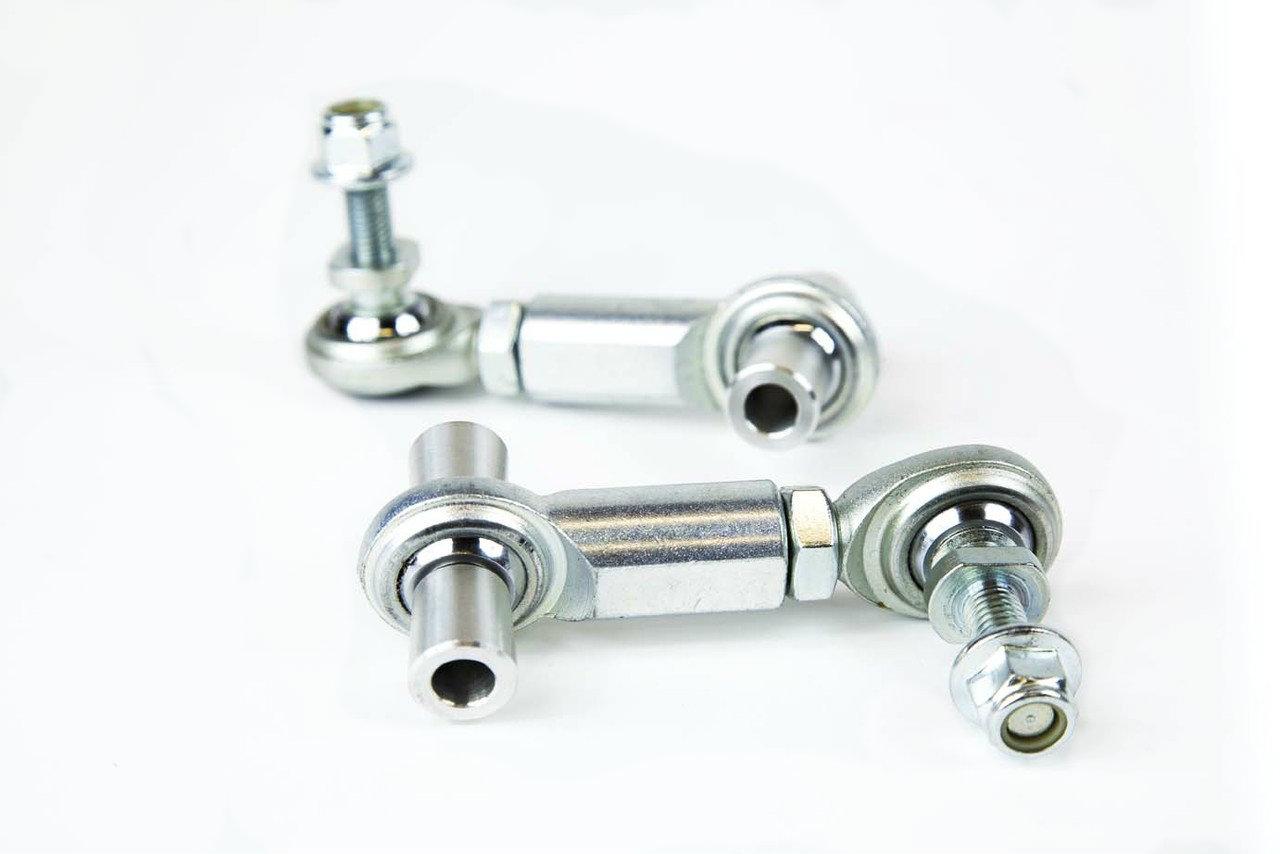

The SPL Parts Rear Sway Bar End Links for the 2019-2023 Hyundai Veloster N (JSN) are high-performance suspension components designed to enhance handling and stability. Constructed with massive 2-piece Teflon-lined FK 1/2" bearings, these end links provide exceptional load capacity and smooth articulation under demanding conditions. The use of custom heat-treated Chromoly high misalignment studs allows for up to 65 degrees of articulation, preventing binding when used with various aftermarket sway bar adjustment holes. Grade 10.9 bolts secure the end links firmly, ensuring durability and reliable performance during aggressive driving or track use. These end links are engineered to withstand high loads and provide precise suspension response, making them ideal for enthusiasts seeking improved cornering and chassis control.
Designed specifically for the JSN chassis of the Hyundai Veloster N from 2019 to 2023, these rear end links are a direct upgrade or replacement for stock components. They are compatible with aftermarket sway bars and are suited for street, track, or spirited driving applications. Installation involves bolt-on replacement of factory end links, offering a straightforward upgrade process. The kit includes the custom heat-treated chromoly studs, FK bearings, and Grade 10.9 mounting bolts, ensuring a complete upgrade for enhanced suspension performance. These end links are ideal for drivers looking to improve handling dynamics and articulation in high-performance or modified vehicles.
Share
Overview
Overview
SPL Parts PRO Rear Endlinks (RE) for the 2019-2023 Hyundai Veloster N (JSN) Chassis feature massive 2-piece Teflon lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars. Custom heat treated Chromoly High Misalignment Studs connect to the sway bar and offer extreme articulation capability (65deg) to prevent the endlink from binding when used with different adjustment holes on aftermarket sway bars. Grade 10.9 bolts are used to secure the endlinks to the lower control arm along with machined 6061-T6 Aluminum spacers.
Our Endlinks are length adjustable to eliminate preload on the sway bars, which can result from uneven settling of springs or uneven suspension heights from corner weighting. These endlinks are perfect for street or race applications.
Made in the USA.
Standard Features
- Enhanced Handling: Engineered to provide superior stiffness, these sway bars significantly improve cornering performance and reduce body roll, delivering a more responsive driving experience.
- Custom Fit: Designed specifically for the 991 chassis, ensuring precise compatibility and easy installation without the need for extensive modifications.
- Adjustable Settings: Features multiple adjustment points, allowing you to fine-tune the sway bar stiffness to match your driving style, whether for daily driving or track use.
- High-Quality Materials: Constructed from durable materials, including heat-treated steel for the sway bars and robust aluminum for the end links, ensuring long-lasting performance under demanding conditions.
- Lightweight Design: The lightweight construction minimizes added weight while maximizing
Specifications
| Part Number | SPL RE JSN |
| Part Name | Rear Sway Bar End Links |
| UPC | 887753909671 |
| Vehicle | 2019-2023 Hyundai Veloster N (JSN) |
| Quantity | Pair of 2 |
Vehicle Fitment
- 2019 Hyundai Veloster N (JSN)
- 2020 Hyundai Veloster N (JSN)
- 2021 Hyundai Veloster N (JSN)
- 2022 Hyundai Veloster N (JSN)
- 2023 Hyundai Veloster N (JSN)
