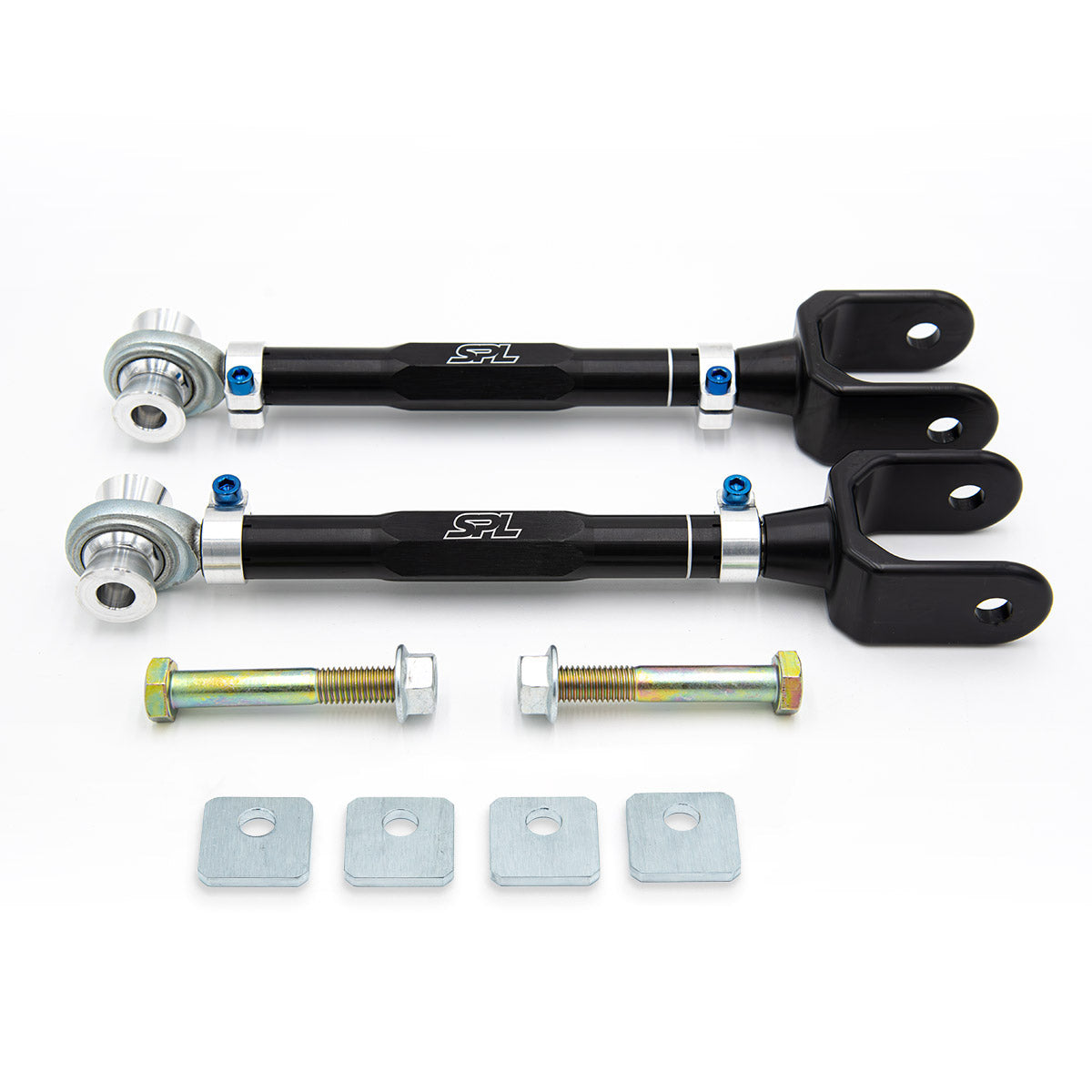

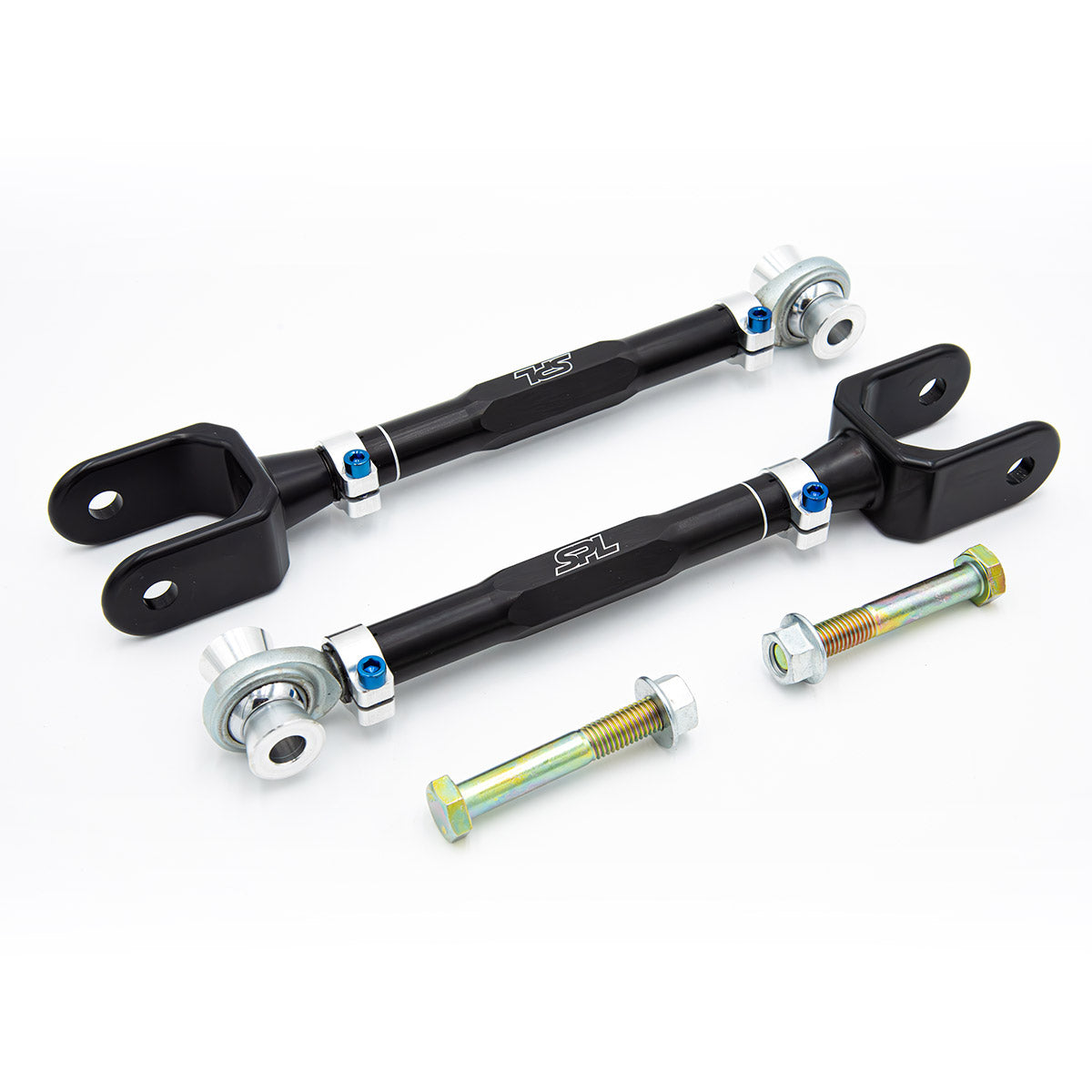

SPL Parts Rear Toe Arms with Eccentric Lockout Kit - 2022-2024 Hyundai Elantra N
SPL Parts Rear Toe Arms with Eccentric Lockout Kit - 2022-2024 Hyundai Elantra N
SKU:SPL RTAEL CN7
Out of stock
Couldn't load pickup availability
▶ Vehicle Fitments
The SPL Parts Rear Toe Arms with Eccentric Lockout Kit for the 2022-2024 Hyundai Elantra N are high-performance suspension components designed to enhance rear wheel alignment and vehicle stability. Constructed with precision-machined aluminum and durable hardware, these toe arms allow for a wide range of adjustment to accurately set the rear toe angle. By minimizing bushing deflection under high cornering, braking, or over bumps, they improve handling, steering response, and tire longevity. The inclusion of an eccentric lockout kit addresses common issues with eccentric bolt slippage, ensuring consistent alignment settings even under demanding driving conditions. These components are engineered to deliver precise alignment correction and increased driving confidence.
Designed specifically for the 2022-2024 Hyundai Elantra N, these rear toe arms are a direct bolt-on upgrade for the factory suspension. They are ideal for enthusiasts seeking improved handling on street or track, providing enhanced stability during aggressive cornering and braking. Installation involves replacing the stock toe links with these adjustable arms, offering a straightforward upgrade for better alignment control. The kit includes the toe arms and eccentric lockout components, ensuring a secure fit and long-lasting performance. Suitable for street, track, or spirited driving, these parts help optimize rear suspension geometry for superior driving dynamics.
Share
Overview
Overview
SPL Rear Toe Arms for the 2022-2024 Hyundai Elantra N provide a large range of adjustment to properly correct the rear toe angle and increase the vehicle's overall stability by reducing unwanted toe angle shift from bushing deflection, especially with high cornering or braking loads and over bumps. The result is better handling, driving feel, and improved tire life.
Eccentric Bolts are prone to slipping with increased cornering loads. To solve this our toe eccentric lockout kit is included in this toe arm kit (RTAEL), which replaces the OEM Hyundai Eccentric Bolts with lock plates and non-Eccentric Bolts to lock down your alignment.
The anodized 2024-T351 aluminum arm uses opposing thread patterns (RH and LH) to allow you to adjust the toe while it is still installed. Simply loosen the aluminum clamps with a 5/32" hex key, elongate or shorten the arm by turning, then tighten the titanium cap screws. That's it, no need for fumbling wrenches trying to tighten a jam nut while you keep the arm the exact same length.
Standard Features
- Large Toe Adjustment Range
- Improved Tire Wear, Stability, and Handling
- On-Car Adjustable with No Jam Nuts
- Lightweight, High Strength Construction

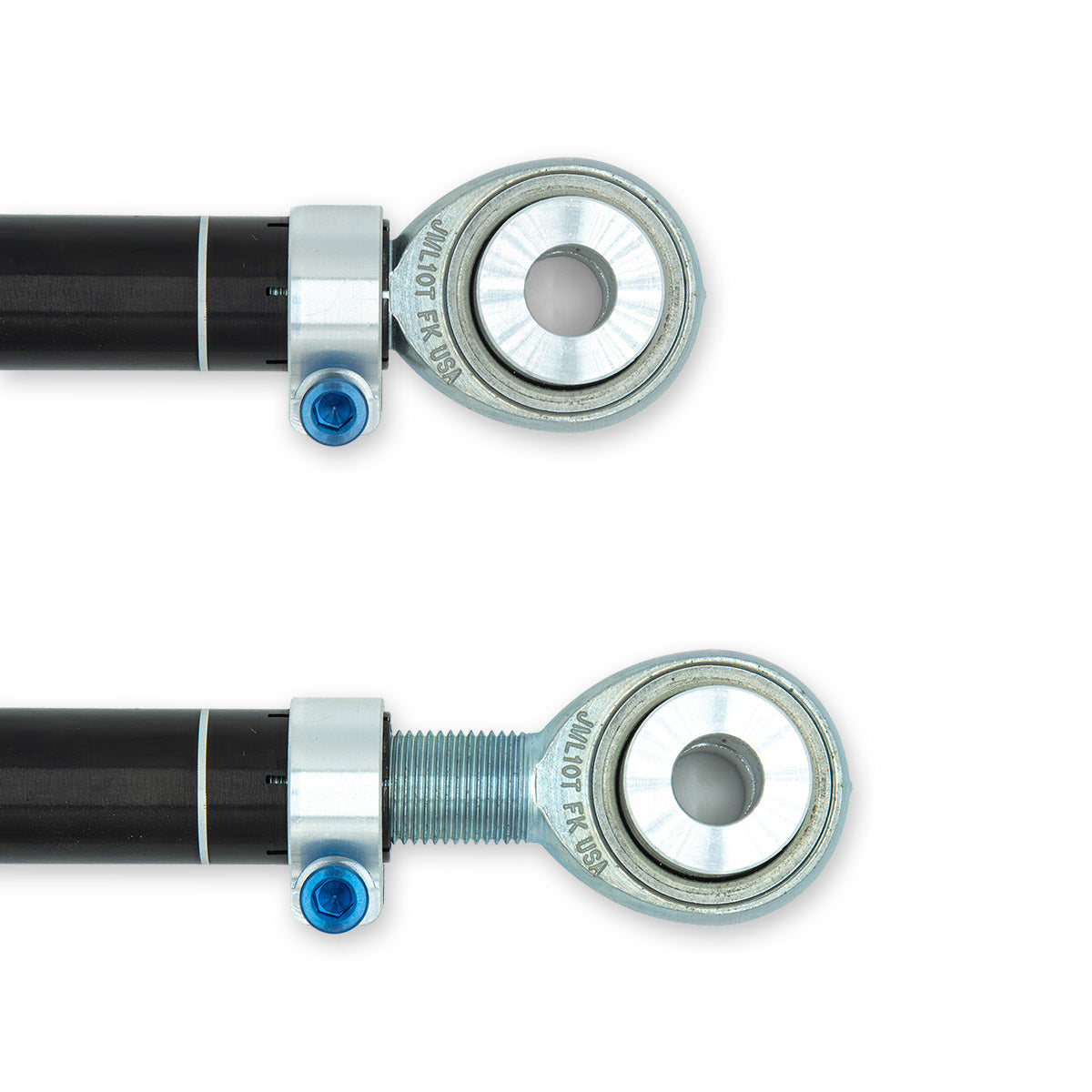

- Maintenance-Free, US Made, PTFE-Lined FK Rod Ends
- Fixes Slipping Issue with OEM Eccentrics
- Eccentric Lockout Kit Included
- Easy, On-Car Adjustments
Specifications
| Part Number | SPL RTAEL CN7 |
| Part Name | Rear Toe Arms with Eccentric Lockout Kit |
| UPC | 887753918765 |
| Vehicle | 2022-2024 Hyundai Elantra N |
Vehicle Fitment
- 2022 Hyundai Elantra N
- 2023 Hyundai Elantra N
- 2024 Hyundai Elantra N
