Year | Make | Model |
---|---|---|
2014 - 2016 | BMW | 228i Base |
2015 - 2016 | BMW | 228i xDrive Base |
2017 - 2021 | BMW | 230i Base |
2017 - 2021 | BMW | 230i xDrive Base |
2013 - 2018 | BMW | 320i Base |
2013 - 2018 | BMW | 320i xDrive Base |
2014 - 2018 | BMW | 328d Base |
2014 - 2018 | BMW | 328d xDrive Base |
2012 - 2016 | BMW | 328i Base |
2014 - 2016 | BMW | 328i GT xDrive Base |
2013 - 2016 | BMW | 328i xDrive Base |
2016 | BMW | 330e Base |
2018 | BMW | 330e Base |
2017 | BMW | 330e iPerformance |
2017 - 2018 | BMW | 330i Base |
2017 - 2019 | BMW | 330i GT xDrive Base |
2017 - 2019 | BMW | 330i xDrive Base |
2012 - 2015 | BMW | 335i Base |
2014 - 2016 | BMW | 335i GT xDrive Base |
2013 - 2015 | BMW | 335i xDrive Base |
2016 - 2018 | BMW | 340i Base |
2017 - 2019 | BMW | 340i GT xDrive Base |
2016 - 2018 | BMW | 340i xDrive Base |
2014 - 2016 | BMW | 428i Base |
2015 - 2016 | BMW | 428i Gran Coupe Base |
2014 - 2016 | BMW | 428i xDrive Base |
2015 - 2016 | BMW | 428i xDrive Gran Coupe Base |
2017 - 2020 | BMW | 430i Base |
2017 - 2020 | BMW | 430i Gran Coupe Base |
2017 - 2020 | BMW | 430i xDrive Base |
2017 - 2020 | BMW | 430i xDrive Gran Coupe Base |
2014 - 2016 | BMW | 435i Base |
2015 - 2016 | BMW | 435i Gran Coupe Base |
2014 - 2016 | BMW | 435i xDrive Base |
2015 - 2016 | BMW | 435i xDrive Gran Coupe Base |
2017 - 2020 | BMW | 440i Base |
2017 - 2020 | BMW | 440i Gran Coupe Base |
2017 - 2020 | BMW | 440i xDrive Base |
2017 - 2020 | BMW | 440i xDrive Gran Coupe Base |
2013 - 2015 | BMW | ActiveHybrid 3 Base |
2014 - 2016 | BMW | M235i Base |
2015 - 2016 | BMW | M235i xDrive Base |
2017 - 2021 | BMW | M240i Base |
2017 - 2021 | BMW | M240i xDrive Base |

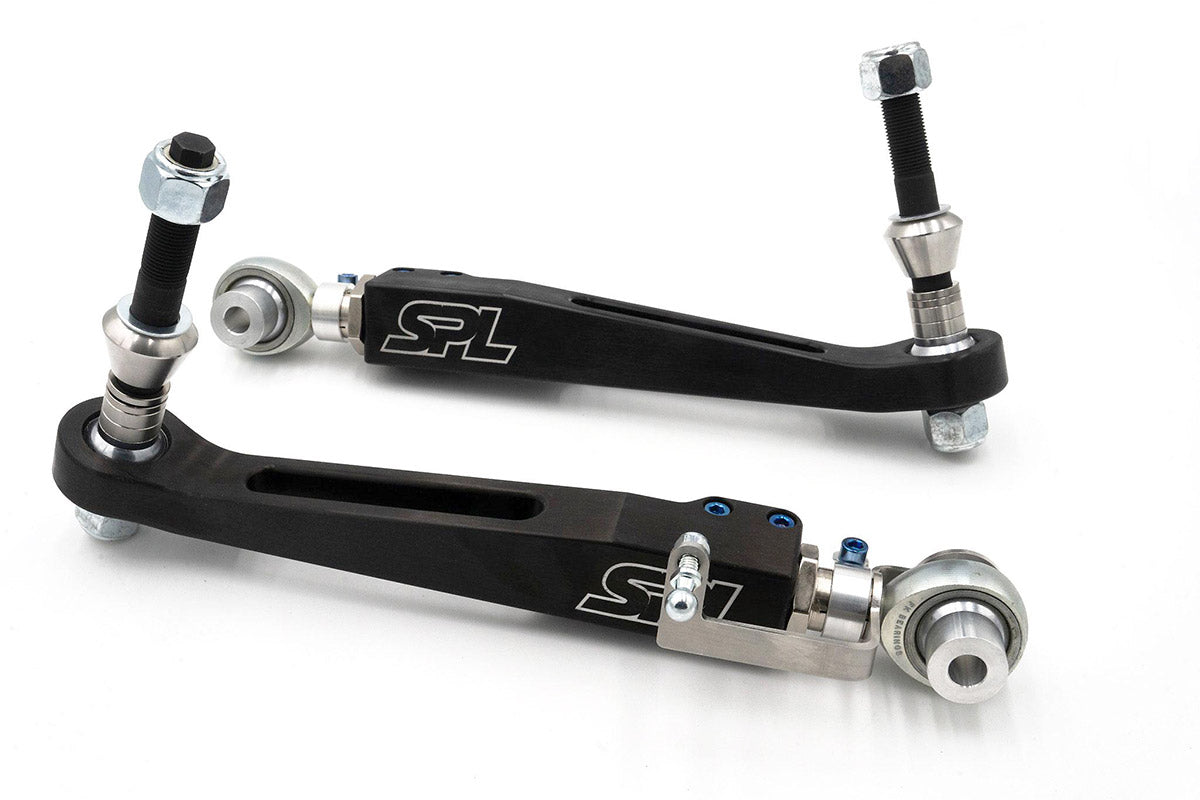

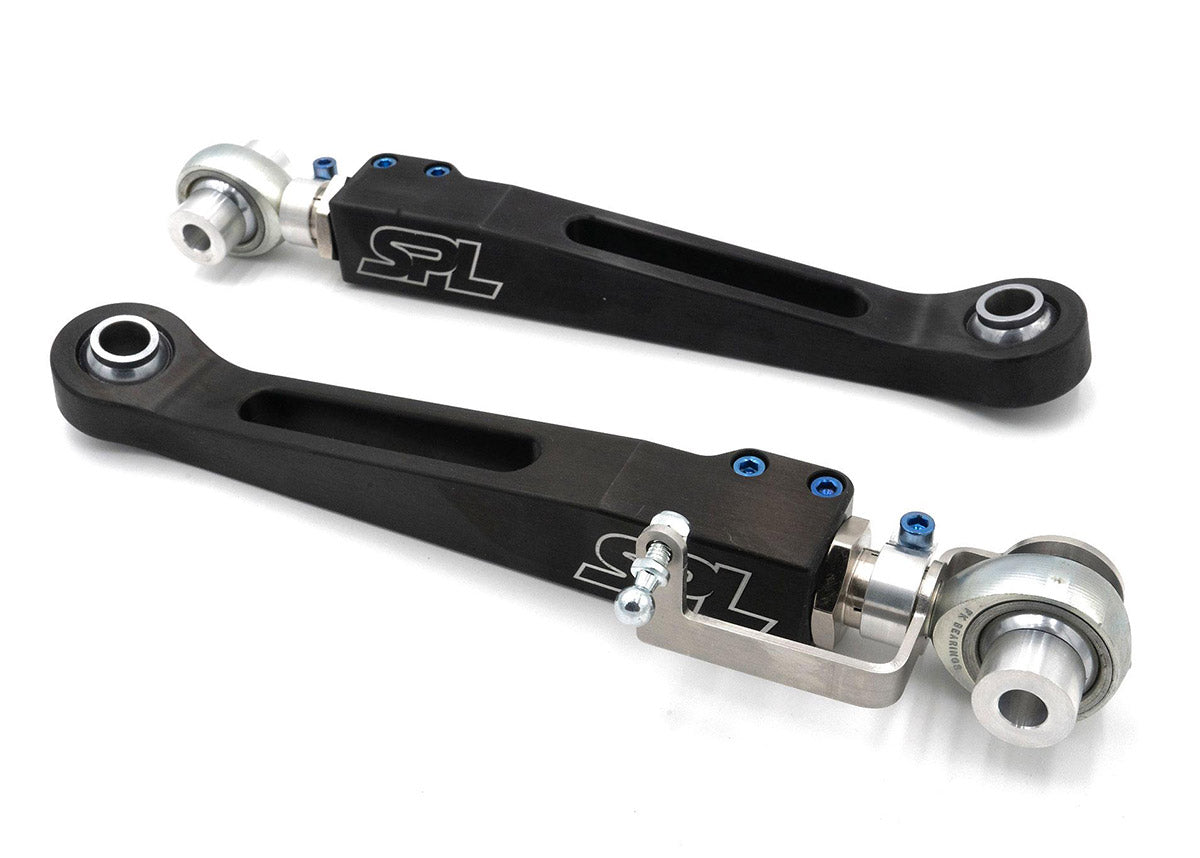

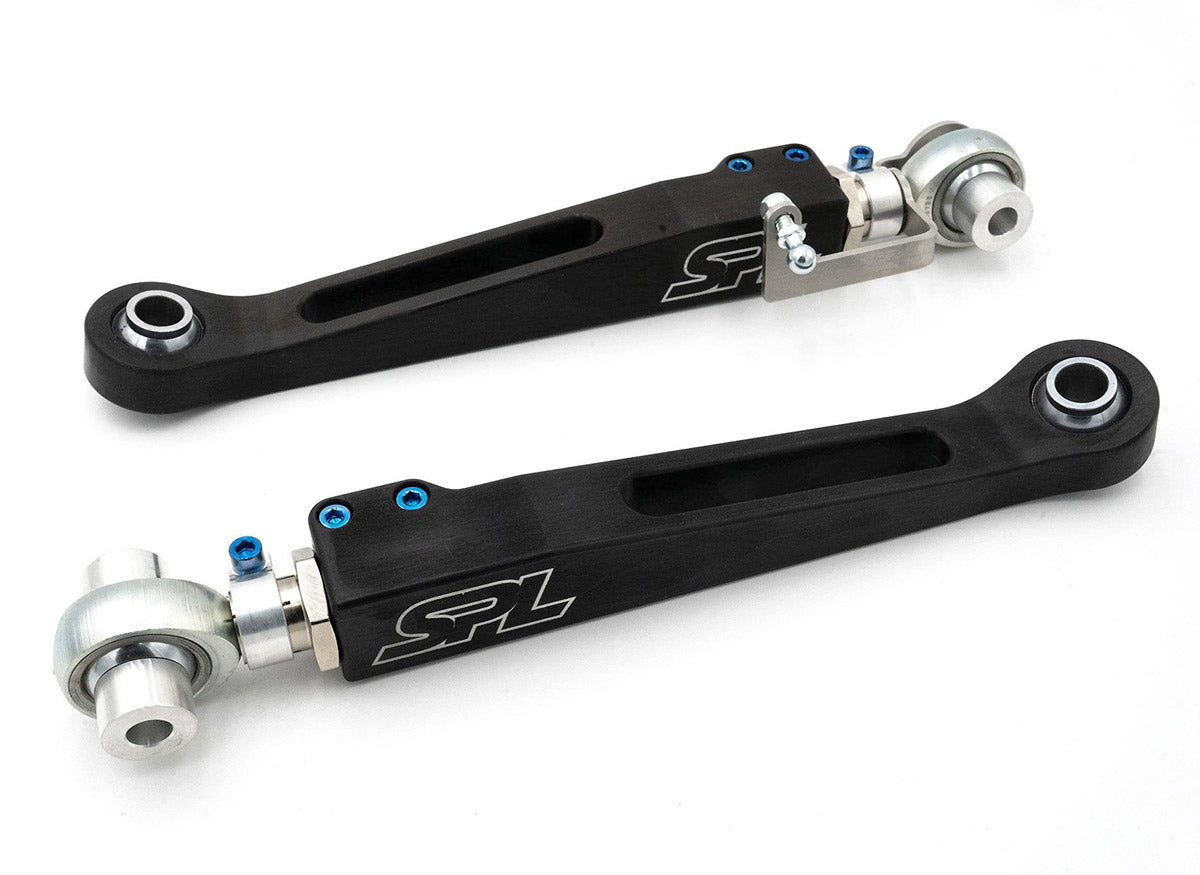

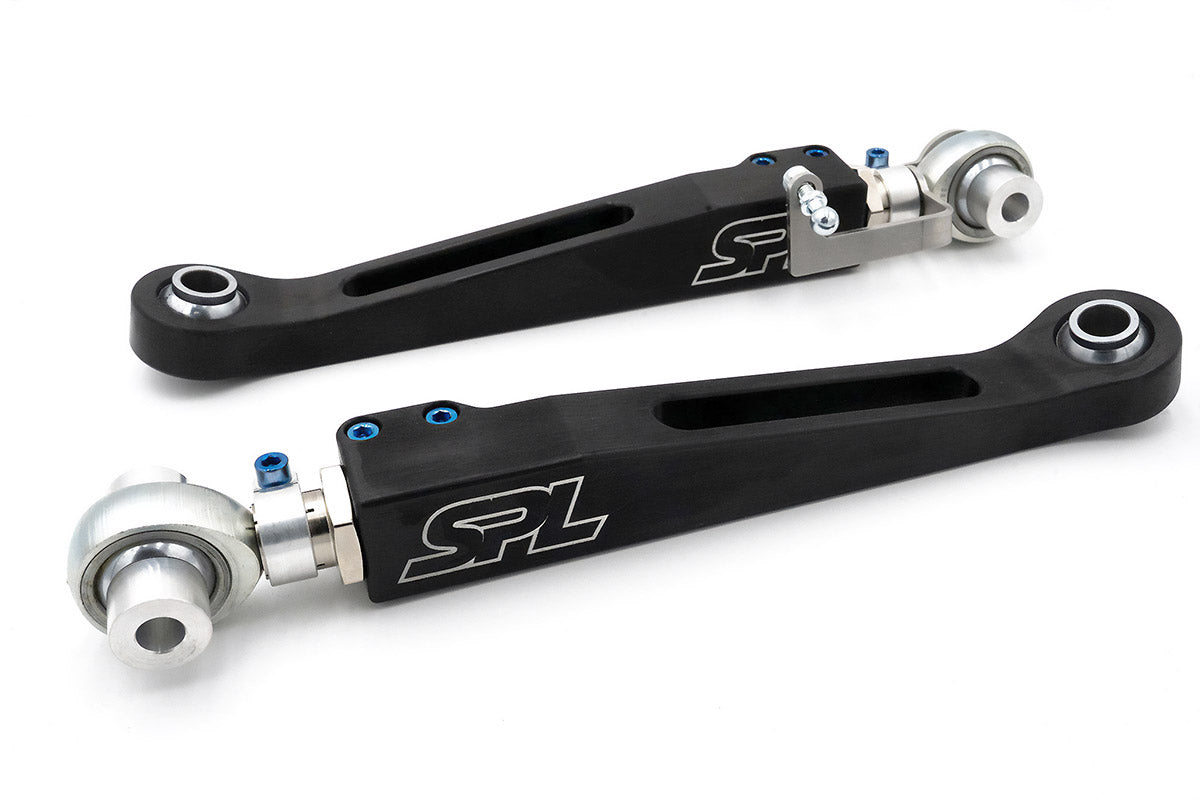

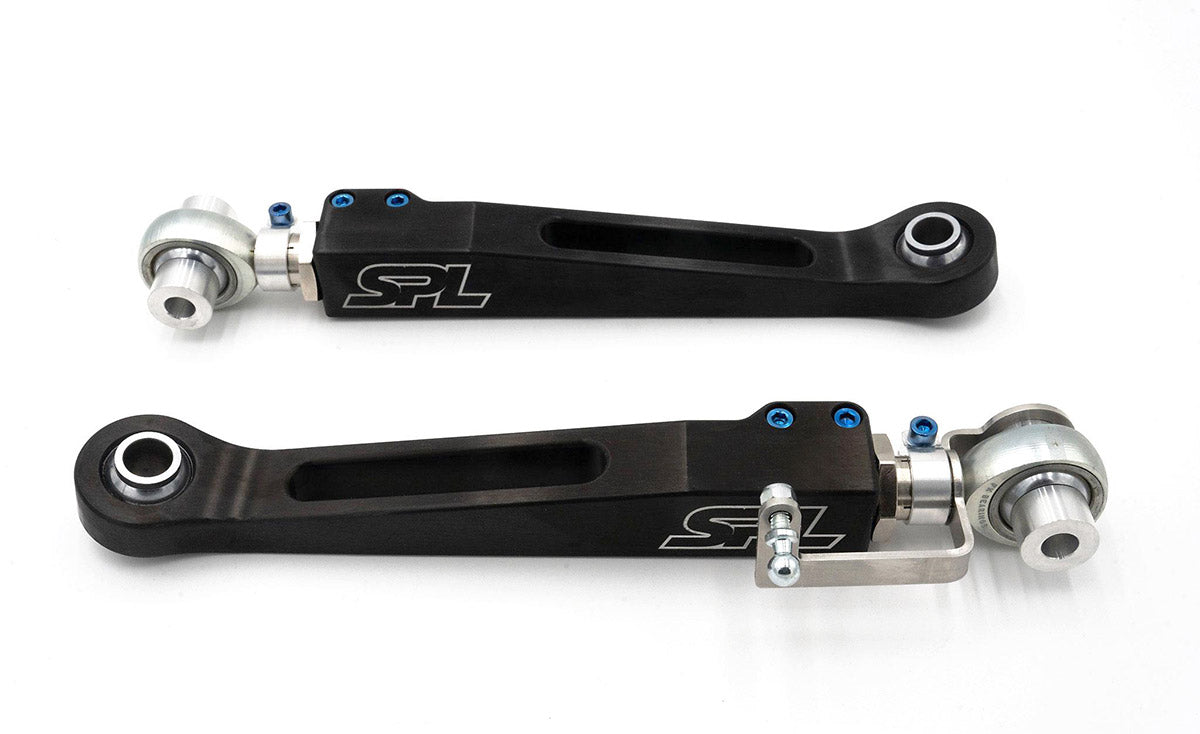

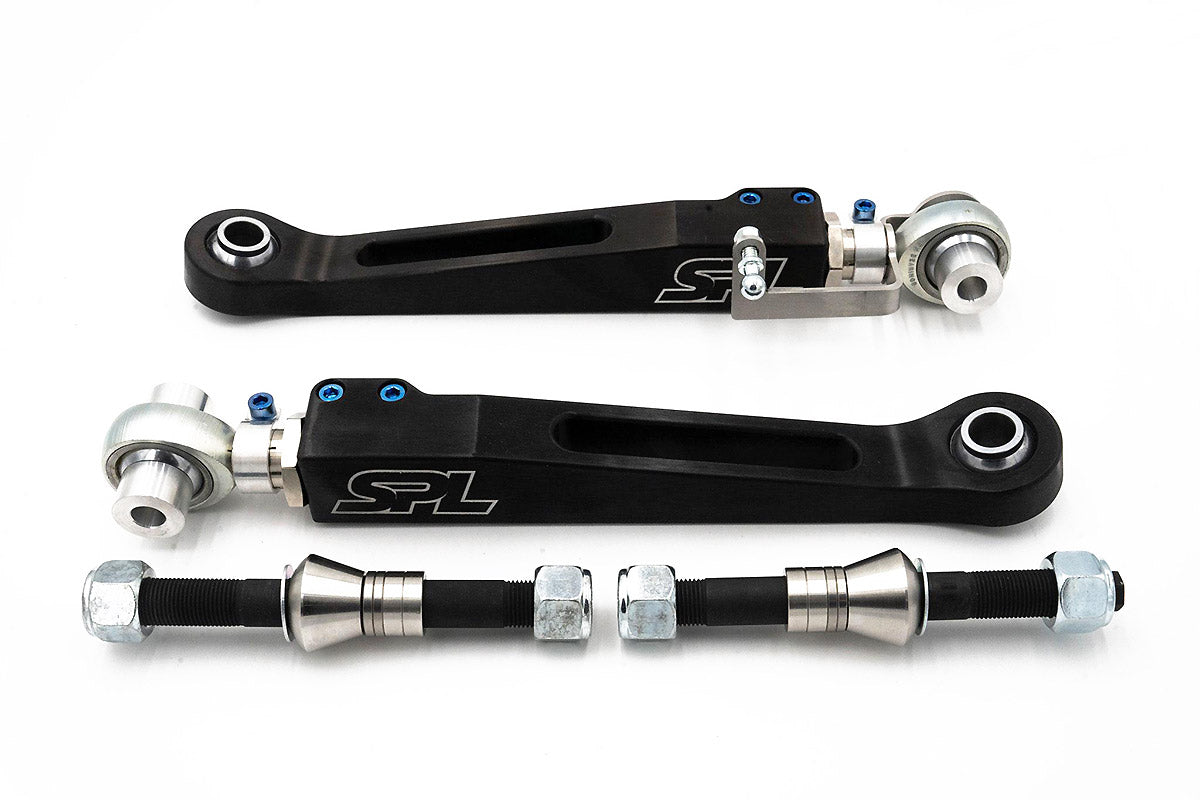

SPL Parts Titanium Front Lower Control Arms - 2015-2019 BMW 2 Series xDrive AWD (F22/F23)
SPL Parts Titanium Front Lower Control Arms - 2015-2019 BMW 2 Series xDrive AWD (F22/F23)
SKU:SPL FLCA F3X
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
SPL Parts Front Lower Control Arms (FLCA) provide roll center, camber, and track width adjustment for the 2014-2020 BMW 2 Series (F23), and allow for full articulation with the proper ball joint angle. The main arm is slotted to allow the use of pinch bolts, and our rotating clamps on SPL Parts' exclusive Double Adjuster lock down camber and track width settings. No more jam nuts!! Long gone are the days of fumbling with multiple wrenches to tighten jam nuts in place while trying to keep your bearings oriented correctly.
Our Double Adjuster is machined from 4130 Chromoly, gun drilled to reduce weight, then electroless nickel plated for corrosion resistance. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms without compromising strength. Stainless Steel spacers are provided to correct roll center for lowered vehicles. The use of FK Rod Ends and High Misalignment Spherical Bearings eliminates the flex and binding found in the OEM control arms, while allowing smooth articulation.
Made in the USA.
Standard Features
- Lightweight Aluminum and Titanium construction
- Gun drilled 2024-T351 Aluminum Trailing Link provides superior strength while reducing unsprung weight
- Rotating Clamp design allows for easy access to lock down your alignment settings
- Heat treated and electroless nickel plated 4340 Chromoly ball joint shanks
- Computer Aided Design with the aid of Finite Element Analysis
- Low friction 3 piece Teflon lined FK Spherical and Heim Joints/Rod Ends
- Multiple size roll center and anti dive/squat spacers for precise adjustment
Installation Instructions
Specifications
Part Number | SPL FLCA F3X |
Part Name | Titanium Front Lower Control Arms |
UPC | 887753909374 |
Vehicle | 2014-2020 BMW 2 Series RWD (F23) |
Quantity | Pair of 2 |
Vehicle Fitment
- 2014-2016 BMW 228i
- 2017-2020 BMW 230i
- 2014-2016 BMW M235i
- 2017-2020 BMW M240i
