SPL Parts Titanium Rear Toe Arms - 2014-2023 BMW 4 Series (F3X)

SPL Parts Titanium Rear Toe Arms - 2014-2023 BMW 4 Series (F3X)

SPL RTA F3X

Out of stock

$384.86 USD
$449.00 USD $384.86 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

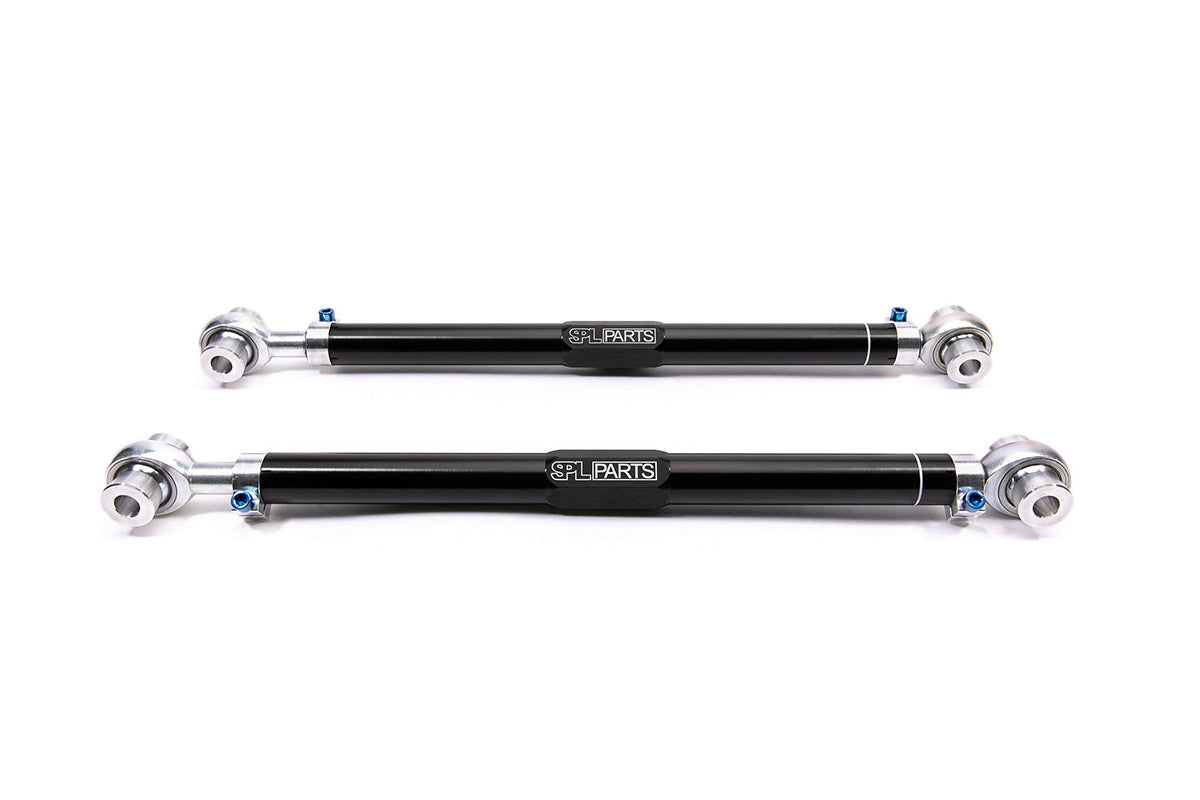

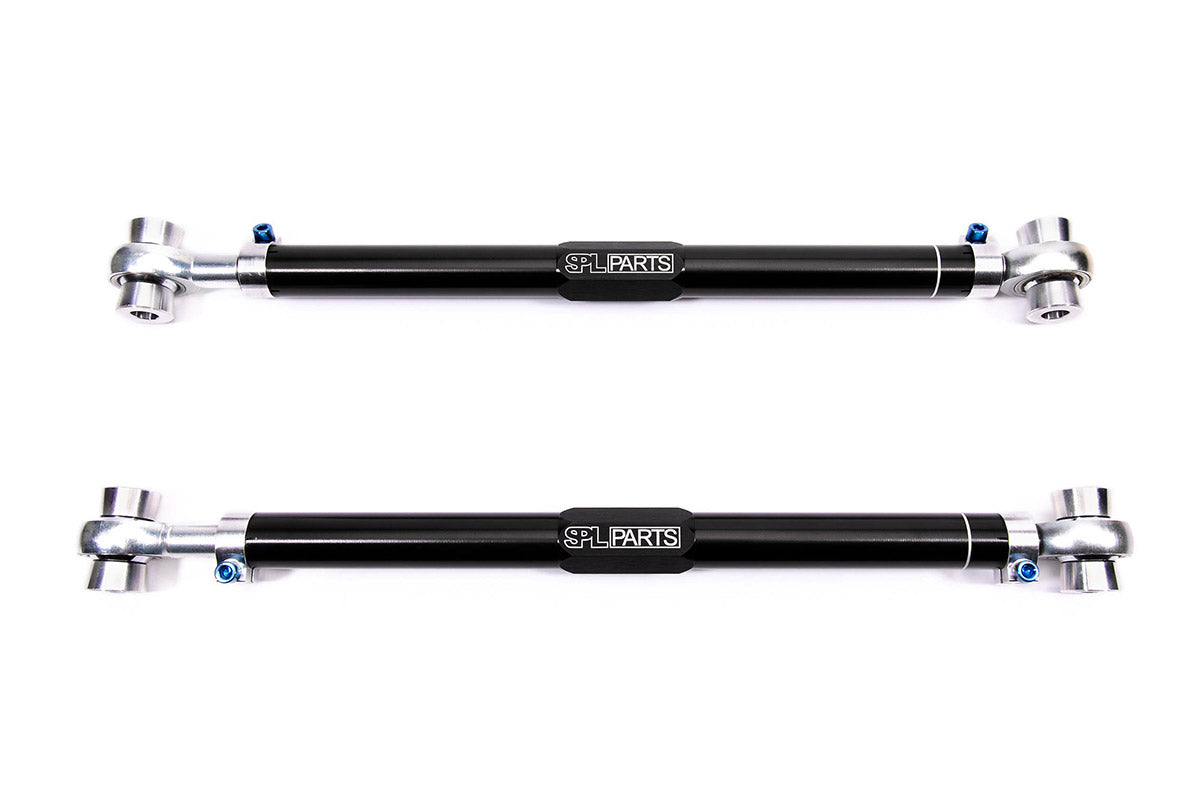

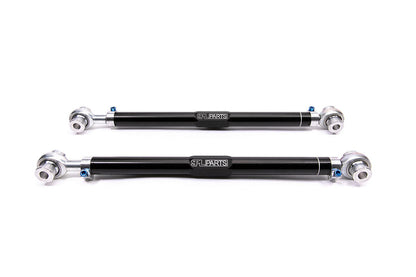

The SPL Parts Titanium Rear Toe Arms for the 2014-2023 BMW 4 Series (F3X) are high-performance suspension components designed to enhance rear stability and response. Constructed from lightweight titanium, these toe arms eliminate bushing deflection, providing more precise control over rear toe settings. They feature an increased range of adjustment, making them ideal for lowered vehicles or performance alignments. By allowing fine-tuning of toe angles, these arms help maximize grip on the track and extend tire life on the street. Their durable construction ensures consistent performance under demanding driving conditions, making them a reliable upgrade for enthusiasts seeking improved handling and responsiveness.

Designed to fit 2014-2023 BMW F3X 4 Series models, these rear toe arms are compatible with various chassis configurations and are suitable for both street and track use. They replace the factory rear toe arms, offering a direct bolt-on upgrade that requires no additional modifications. The wide adjustment range accommodates changes in ride height and camber, ensuring optimal alignment settings. Installation involves replacing the stock components with these lightweight titanium arms, which are ideal for performance-oriented drivers looking to improve rear suspension precision. The kit includes the necessary hardware for a straightforward installation, providing a significant upgrade in handling dynamics for BMW F3X owners.

Overview

SPL Parts Rear Toe Arms (RTA) for the 2012-2023 BMW 2 Series (F2X) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength.

FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65? to 325?F, offering robust reliability.

Made in the USA.

Standard Features

  • Gun drilled 2024 Aluminum Links to reduce unsprung weight
  • Blue Anodized Titanium Socket Head Cap Screws
  • 6061-T6 Aluminum Rotating Clamp design
  • Teflon lined FK Heim Joints and Rod Ends
  • 6061-T6 Aluminum Eccentric Lockout Washers
  • Grade 10.9 Hex Cap Bolts with Lock Nuts

Installation Instructions

Specifications
Part Number SPL RTA F3X
Part Name Titanium Rear Toe Arms
UPC 887753910035
Vehicle 2012-2023 BMW 2 Series (F2X)
Quantity Pair of 2
Vehicle Fitment
  • 2012 BMW 2 Series (F2X)
  • 2013 BMW 2 Series (F2X)
  • 2014 BMW 2 Series (F2X)
  • 2015 BMW 2 Series (F2X)
  • 2016 BMW 2 Series (F2X)
  • 2017 BMW 2 Series (F2X)
  • 2018 BMW 2 Series (F2X)
  • 2019 BMW 2 Series (F2X)
  • 2020 BMW 2 Series (F2X)
  • 2021 BMW 2 Series (F2X)
  • 2022 BMW 2 Series (F2X)
  • 2023 BMW 2 Series (F2X)
