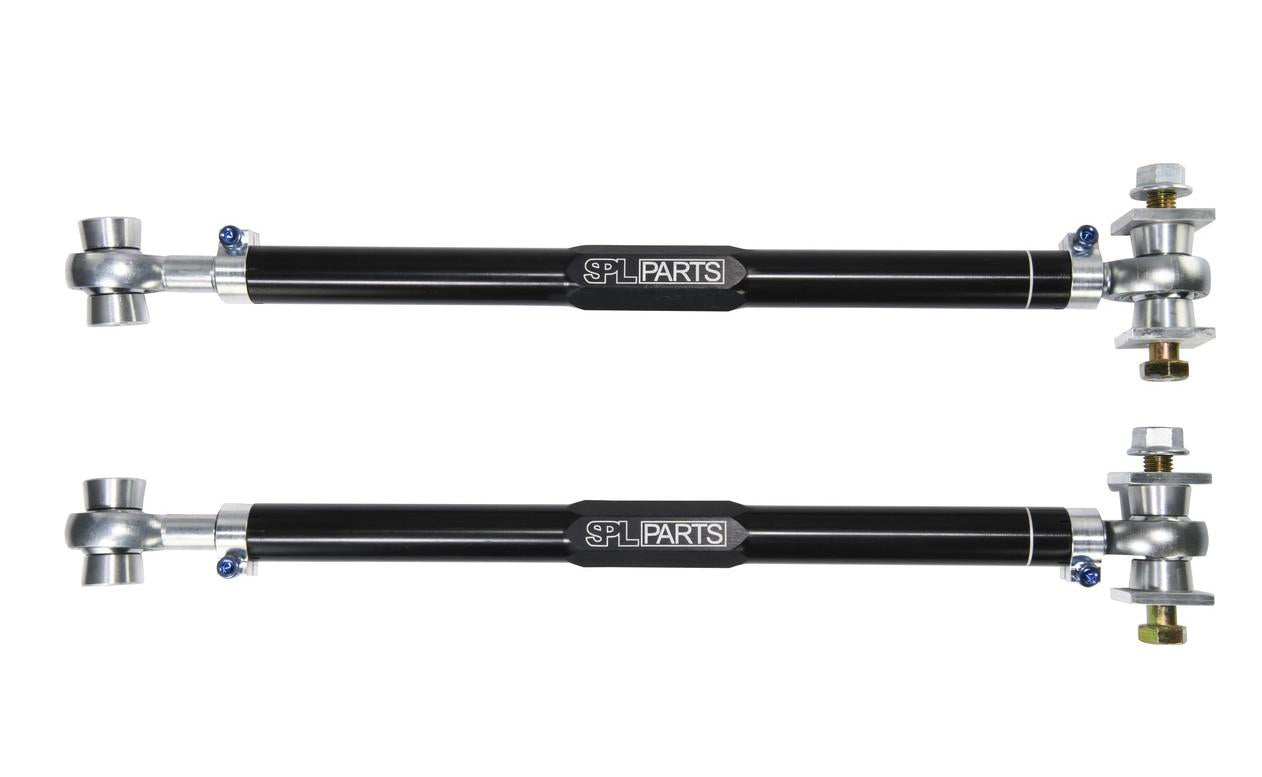

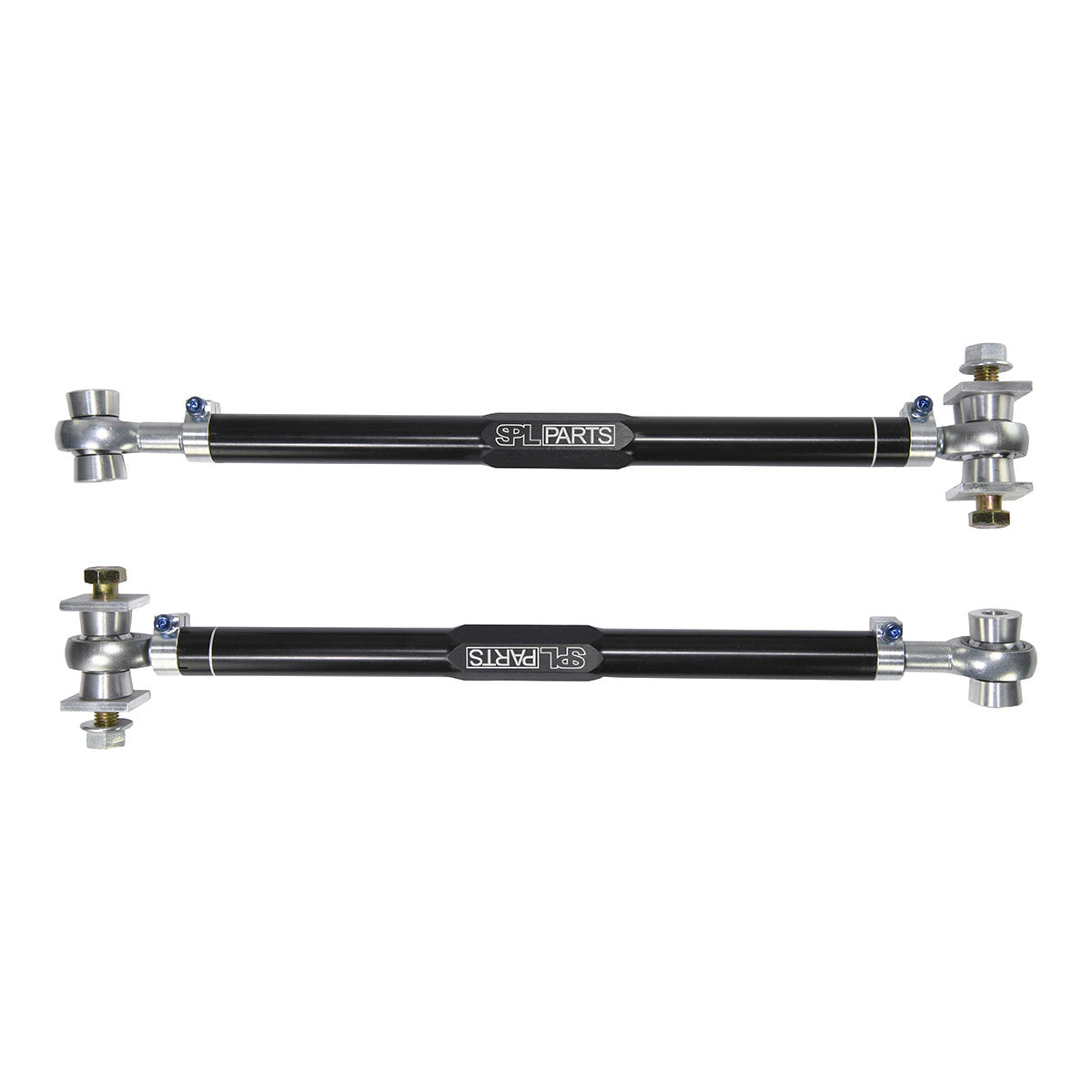

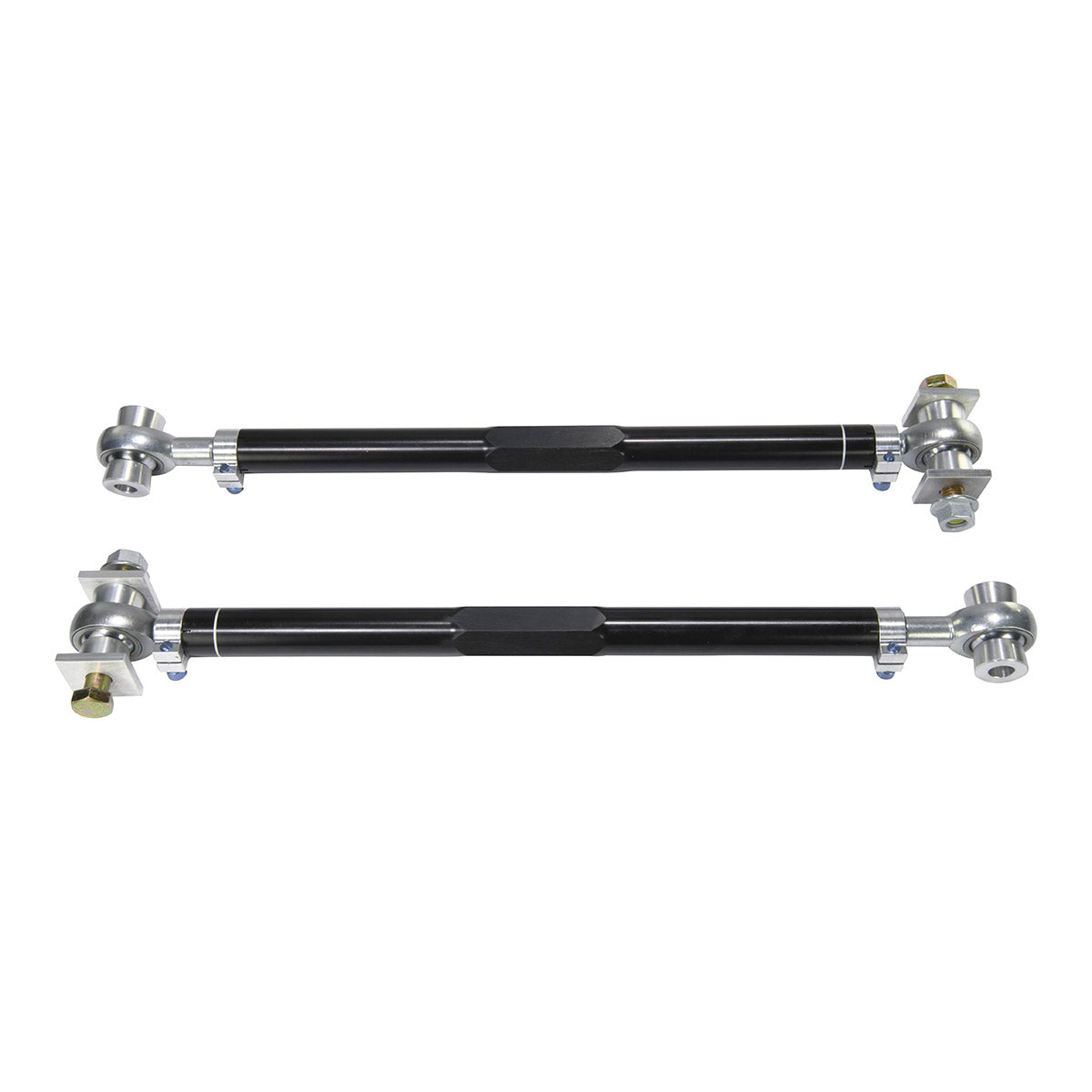

SPL Parts Titanium Rear Toe Arms & Eccentric Lockout Kit - 2012-2023 BMW 2 Series (F2X)

SPL Parts Rear Toe Arms (RTA) for the 2012-2023 BMW 2 Series (F2X) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts Rear Toe Links offer. Black Anodized and gundrilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment.

3 piece FK Bearings Rod Ends manufactured in Connecticut feature a Teflon liner to provide quiet operation, low friction, smooth articulation, and eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65? to 325?F, offering robust reliability for both street and track use.

Made in the USA.

Standard Features

• Gun-drilled 2024 Aluminum Links to reduce unsprung weight
• Blue Anodized Titanium Socket Head Cap Screws
• 6061-T6 Aluminum Rotating Clamp design
• Low friction 3 piece Teflon lined FK Heim joints/Rod Ends
• 6061-T6 Aluminum Eccentric Lockout Washers
• Grade 10.9 Hex Cap Bolts with Lock Nuts

Installation Instructions

SPL Parts Rear Toe Arms + Eccentric Lockouts

Specifications

Vehicle Fitment

• 2012 BMW 2 Series (F2X)
• 2013 BMW 2 Series (F2X)
• 2014 BMW 2 Series (F2X)
• 2015 BMW 2 Series (F2X)
• 2016 BMW 2 Series (F2X)
• 2017 BMW 2 Series (F2X)
• 2018 BMW 2 Series (F2X)
• 2019 BMW 2 Series (F2X)
• 2020 BMW 2 Series (F2X)
• 2021 BMW 2 Series (F2X)
• 2022 BMW 2 Series (F2X)
• 2023 BMW 2 Series (F2X)
