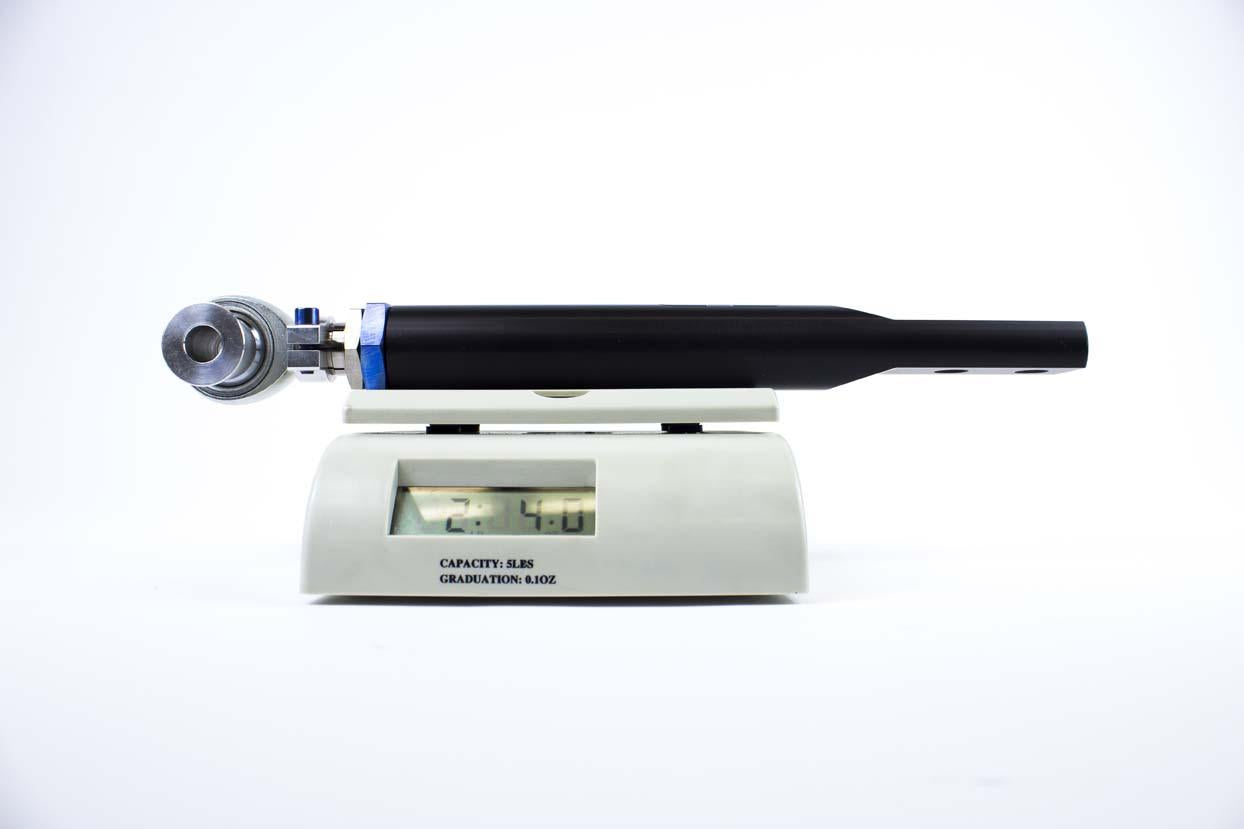

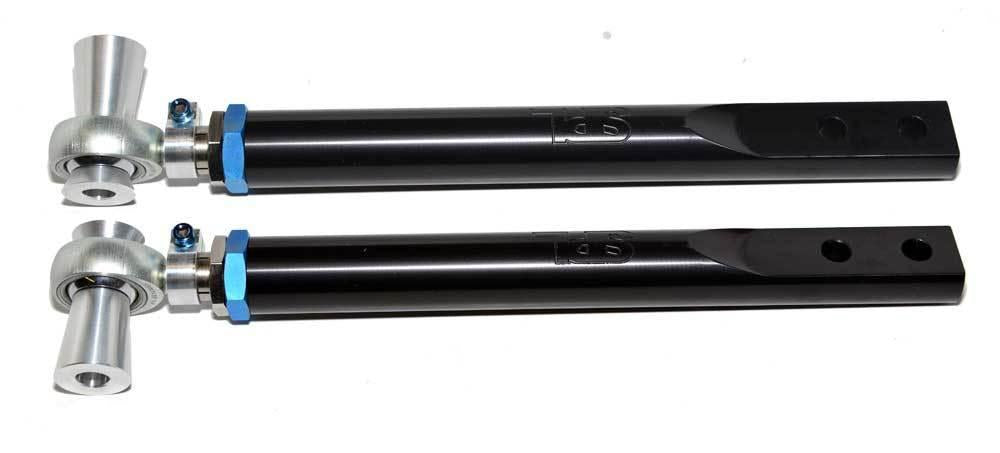

SPL Parts Titanium Series Front Tension Rods with Offset Spacers - 1989-1994 Nissan 240SX (S13)
SPL Parts Titanium Series Front Tension Rods with Offset Spacers - 1989-1994 Nissan 240SX (S13)
SKU:SPL TRO S13
Out of stock
Regular price
$324.86 USD
Regular price
$379.00 USD
Sale price
$324.86 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The SPL Parts Titanium Series Front Tension Rods with Offset Spacers are high-performance suspension components designed for the 1989-1994 Nissan 240SX (S13). Crafted from lightweight titanium, these tension rods allow for precise adjustment of front caster, enabling drivers to optimize turn-in response and improve steering feel. The inclusion of low-friction 3/4" FK spherical bearings replaces the stock rubber bushings, resulting in a more direct and responsive steering experience. The offset spacers are engineered to maximize steering angle and increase clearance, enhancing handling capabilities on both street and track applications. These tension rods are built for durability and precision, providing a significant upgrade over stock components for enthusiasts seeking improved steering control and responsiveness.
Designed specifically for the 1989-1994 Nissan 240SX (S13), these tension rods are compatible with models equipped with the stock suspension setup. They serve as direct replacements and are ideal for performance-oriented street driving, track use, or drifting. Installation involves bolt-on replacement of the factory tension rods, with no additional modifications required. The kit includes the titanium tension rods and offset spacers, ensuring a comprehensive upgrade for front suspension geometry. Suitable for drivers aiming to enhance steering response and cornering performance, these tension rods are a reliable choice for maximizing the handling potential of the S13 chassis.
Share
Overview
Overview

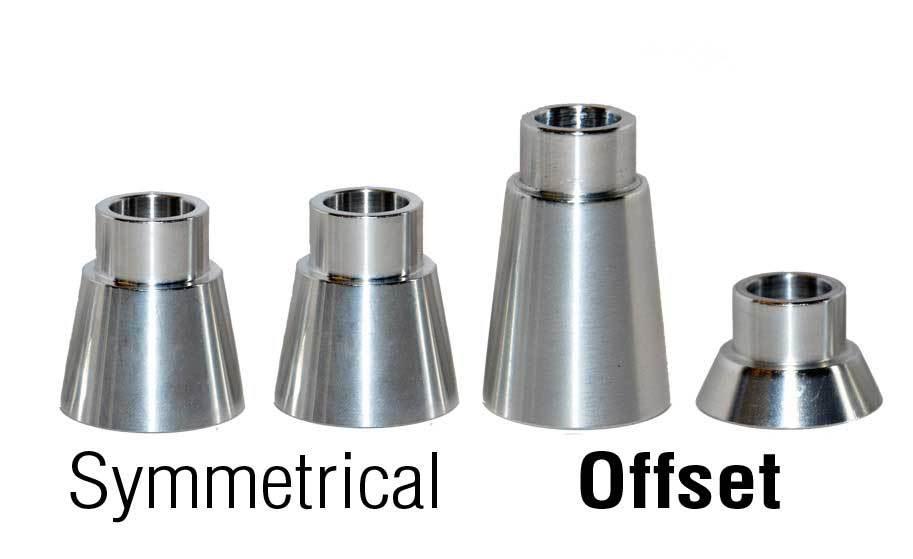

SPL Parts TITANIUM Series Tension Rods (TR) for the 1989-1994 Nissan 240SX (S13) provide for adjustment of front caster, allowing you to change front caster to optimize the turn-in response and to compensate for variances between the left and right caster. Low-friction articulating 3/4" FK spherical bearings on our tension rods eliminate the stock mushy rubber bushing to provide a more responsive steering feel. Our Offset Spacers are designed to give maximum steering angle with increased clearance from the wheel to the tension rod.
Engineered for maximum performance, Large diameter (1 3/8") Billet 6061-T6 Aluminum rods are precision CNC machined and gun-drilled to reduce unsprung weight while maintaining high strength and stiffness. Our exclusive 4130 Chromoly Double Adjuster offers wide adjustment range and precise adjustment, and is also CNC gundrilled to reduce weight. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms, without compromising strength.
Custom 3/4" 3 piece FK Bearings Rod Ends manufactured in Connecticut feature a Teflon liner to provide quiet operation, low friction, smooth articulation, and eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65? to 325?F,offering robust reliability for both street and track use.
SPL Parts TITANIUM Tension Rods also feature specially machined mounting holes for our SPL Parts Brake Cooling Deflectors (#SPL TR BD), providing an easy way to improve brake cooling for track events and racing.
Made in the USA.
Standard Features
- Lightweight Aluminum and Titanium construction
- Offset spacers allow maximum steering angle for drift applications
- Anodized Black to protect against corrosion
- Nickel-plated 4130 Double Adjuster for quick adjustment
- Oversized Teflon lined FK Rod Ends
Installation Instructions
Specifications
| Part Number | SPL TRO S13 |
| Part Name | Titanium Series Front Tension Rods with Offset Spacers |
| UPC | 887753911247 |
| Vehicle | 1989-1994 Nissan 240SX (S13) |
| Quantity | Pair of 2 |
Vehicle Fitment
- 1989 Nissan 240SX (S13)
- 1990 Nissan 240SX (S13)
- 1991 Nissan 240SX (S13)
- 1992 Nissan 240SX (S13)
- 1993 Nissan 240SX (S13)
- 1994 Nissan 240SX (S13)
