Swift Flat Wire Helper Spring - 135mm Length | 65mm ID | 0.08kfg/mm
Swift Flat Wire Helper Spring - 135mm Length | 65mm ID | 0.08kfg/mm
SKU:H65-135-0008
In stock
Couldn't load pickup availability
▶ Suspension Drop / Lift Rates
Explore the capabilities of keeping your springs mounted on the coilover perch when they're under negative or zero load with Swift Helper Springs, designed to have minimal effect on the springs rate of the main coilover springs.
Prevent the dismount of your springs without having to change spring rates.
Our Helper Springs are specifically designed to have a minimal effect on the spring's rate of retention on the coilover perch while the shock is under negative or zero load, also known as droop travel. It is ideal to run helper springs on setups where you cannot pre-load the main spring due to height issues or when experiencing springs coming loose from the coilover perch.
Gold Helper Springs are sold in pairs and include a Stack Spring Adapter.
Black Helper Springs are sold individually.
Share
Overview
Overview
Explore the capabilities of keeping your springs mounted on the coilover perch when they're under negative or zero load with Swift Helper Springs, designed to have minimal effect on the springs rate of the main coilover springs.
Prevent the dismount of your springs without having to change spring rates.
Our Helper Springs are specifically designed to have a minimal effect on the spring's rate of retention on the coilover perch while the shock is under negative or zero load, also known as droop travel. It is ideal to run helper springs on setups where you cannot pre-load the main spring due to height issues or when experiencing springs coming loose from the coilover perch.
Gold Helper Springs are sold in pairs and include a Stack Spring Adapter.
Black Helper Springs are sold individually.
SOLD IN PAIRS
Specifications
Part Number: H65-135-0008
Length : 135mm/5.3inch
Inner Diameter : 65mm/2.5inch
Spring Rate : 0.08kgf/mm 4lbs/inch
Stroke : 118mm/4.6inch
FCH : 17mm/0.7inch
CW : 10kg/22lbs

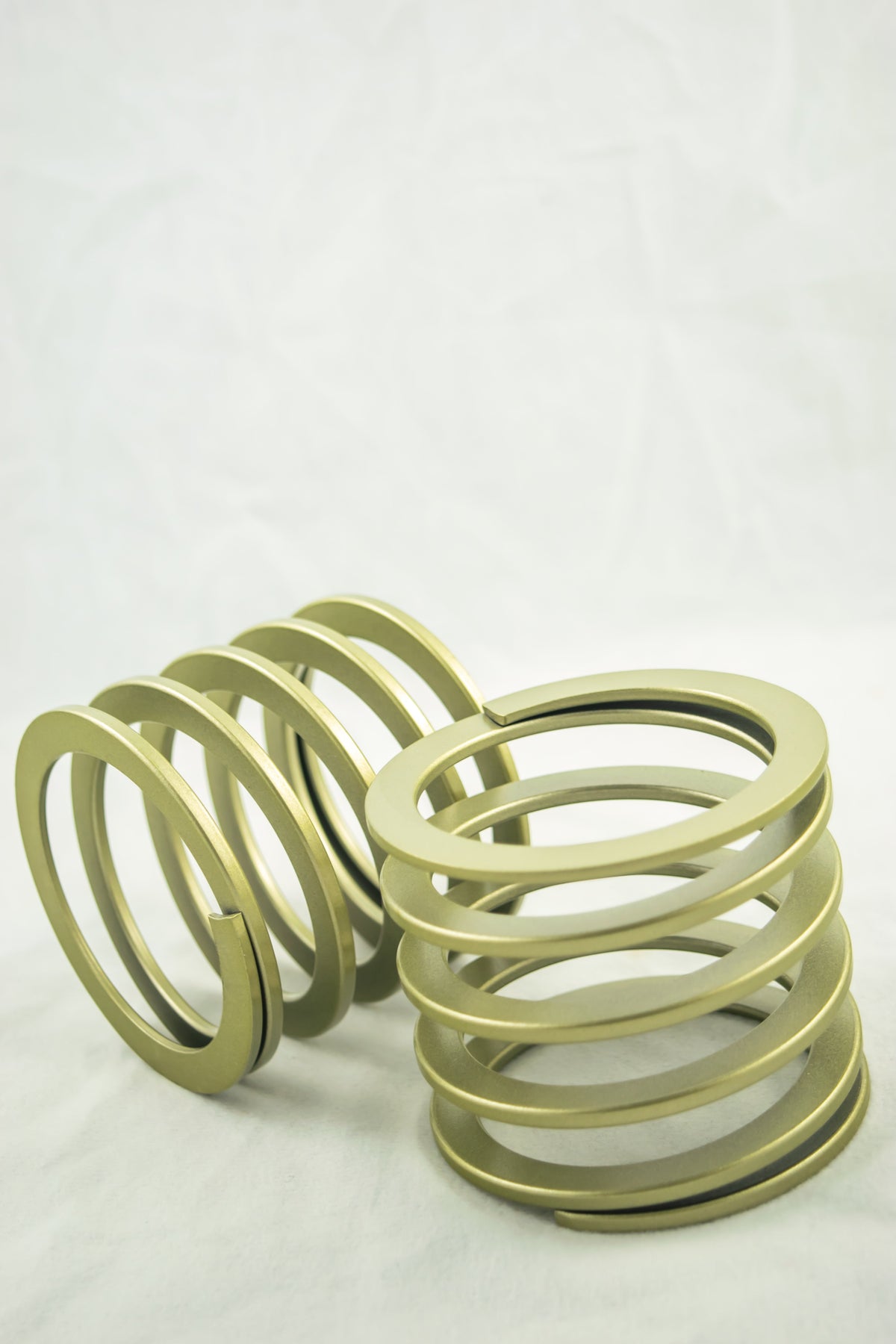

*Image example is a 4lbs/inch spring rate
