▶ Suspension Drop / Lift Rates
Part #: 080-500-200 - Standard Conventional Rear Spring

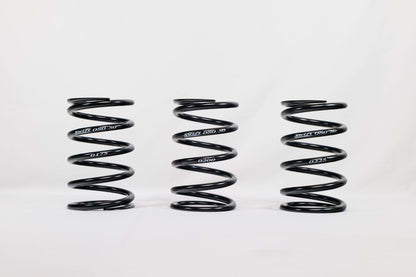

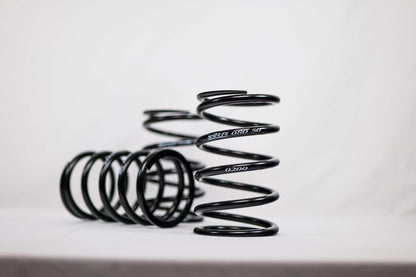

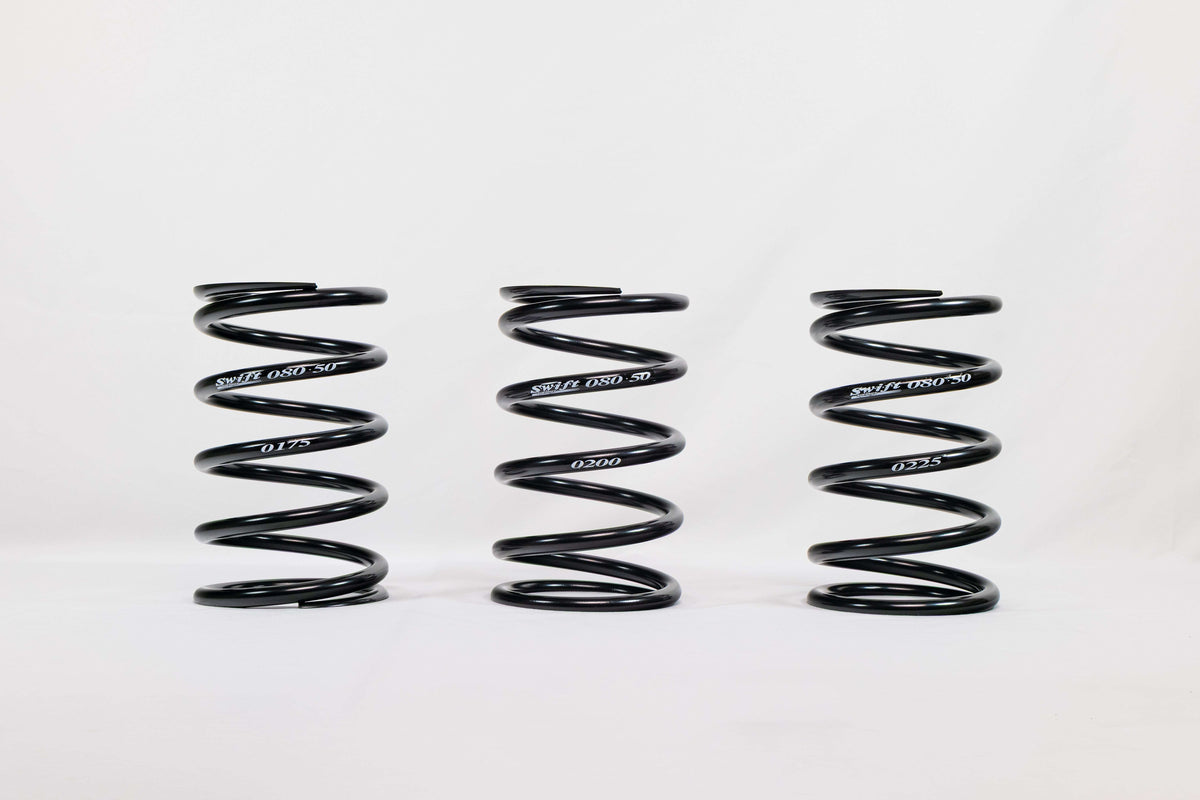

Comment: Swift Standard Conventional Rear Spring - 8" Length | 5" OD | 200lbs/inch
Specification
Value
Part Number
080-500-200
Length
8"
Outer Diameter
5"
Spring Rate
200 lbs/inch
Usable Stroke
4.8"
Max Stroke
5.5"
Max Load
1,094 lbs

Swift Standard Conventional Rear Spring - 8" Length | 5" OD | 200lbs/inch

Swift Standard Conventional Rear Spring - 8" Length | 5" OD | 200lbs/inch

080-500-200

In stock

$165.00 USD
$165.00 USD $165.00 USD
Special Discounts May Apply at Checkout Sold out
▶ Suspension Drop / Lift Rates
Part #: 080-500-200 - Standard Conventional Rear Spring
Comment: Swift Standard Conventional Rear Spring - 8" Length | 5" OD | 200lbs/inch
Specification
Value
Part Number
080-500-200
Length
8"
Outer Diameter
5"
Spring Rate
200 lbs/inch
Usable Stroke
4.8"
Max Stroke
5.5"
Max Load
1,094 lbs

Swift conventional springs are mainly utilized in motorsports ranging anywhere from dirt to pavement where we've engineered for corner specific with our HS5.TW proprietary material, providing the optimal spring design to maximize your vehicle potential amplifying every advantage.

The 5" OD Rear Springs are designed for UMP, USRA, & USMTS that's quicker to load with 1.5" coil spacing and excellent for spring rubbers!

Overview

Swift conventional springs are mainly utilized in motorsports ranging anywhere from dirt to pavement where we've engineered for corner specific with our HS5.TW proprietary material, providing the optimal spring design to maximize your vehicle potential amplifying every advantage.

The 5" OD Rear Springs are designed for UMP, USRA, & USMTS that's quicker to load with 1.5" coil spacing and excellent for spring rubbers!

Specifications
Part Number: 080-500-200

Length : 8inch
Outer Diameter : 5inch
Spring Rate : 200lbs/inch
Usable Stroke : 4.8inch
Max Stroke : 5.5inch
Max Load : 1,094lbs
