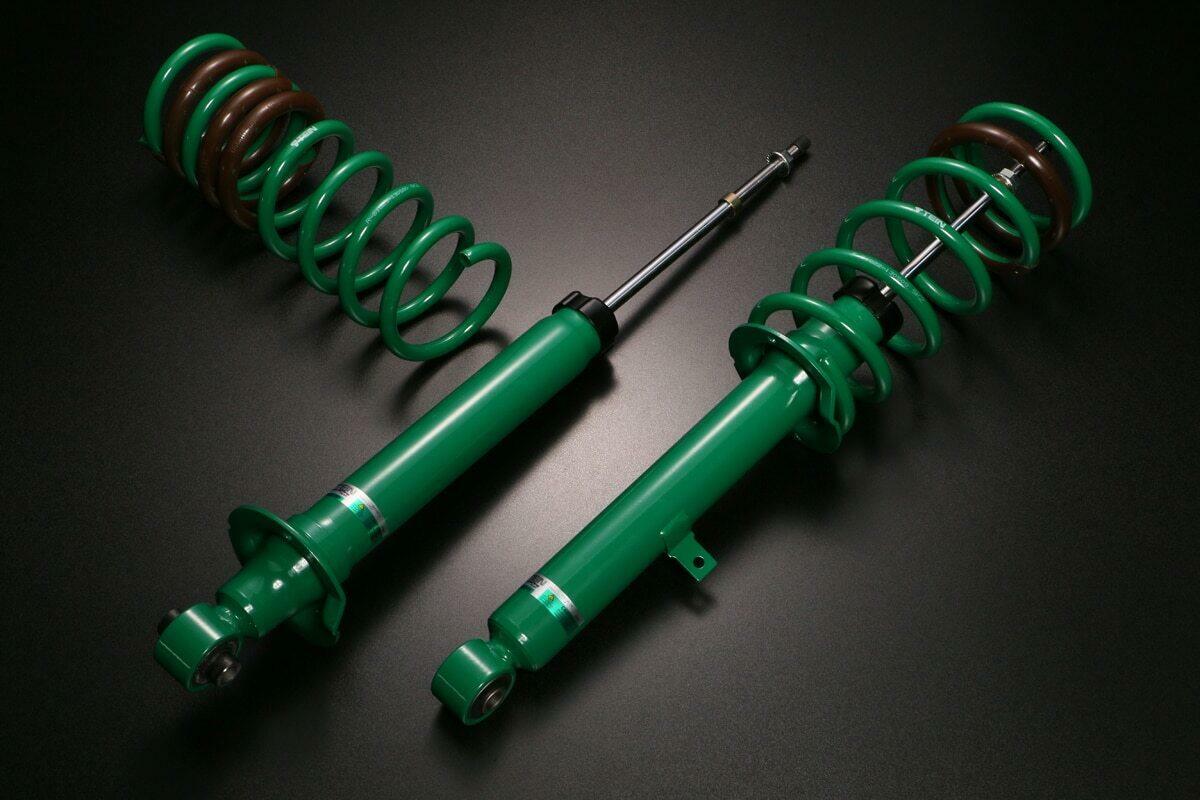

TEIN EnduraPro Plus SP Coilover Kit - 2017-2024 Subaru BRZ S, R RWD (ZC6)

TEIN EnduraPro Plus SP Coilover Kit - 2017-2024 Subaru BRZ S, R RWD (ZC6)

VSQ54-B1SS2

Out of stock

$836.00 USD
$880.00 USD $836.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein EnduraPro Plus SP Coilover Kit is a high-performance suspension upgrade designed specifically for the 2017-2024 Subaru BRZ S and R rear-wheel drive models with the ZC6 chassis. This coilover kit features OE-shape shock absorbers that maintain the vehicle’s original appearance while delivering enhanced handling and ride quality. The kit includes exclusively-designed low-down springs that allow for a lowered ride height, improving the vehicle’s stance and cornering performance. Constructed with durable materials, these coilovers provide a balance of comfort and stability, making them suitable for both street driving and spirited handling. The design ensures precise damping and consistent performance, reducing body roll and improving overall vehicle control.

Designed for 2017-2024 Subaru BRZ S and R models with the ZC6 chassis, these coilovers are a direct bolt-on replacement for the factory shocks, requiring no additional modifications. They are ideal for enthusiasts seeking improved handling, lowered stance, and enhanced ride quality without sacrificing daily drivability. The kit is compatible with the vehicle’s original springs and upper mounts, simplifying installation. Suitable for street and track use, these coilovers help optimize suspension performance for a variety of driving conditions. The package includes the shock absorbers and springs, providing a comprehensive upgrade for your Subaru BRZ.

Overview

The new TEIN EnduraPro PLUS SP Coilover Kit for your 2017-2024 Subaru BRZ S, R RWD (ZC6) is a high-performance OE-shape shock absorber kit. Each kit has been designed for use with the vehicle's original (OE) spring and upper-mount. The lower spring seat is shaped identical to the OE shock absorber. In addition to replacing worn or leaking OE dampers, exclusively-designed low-down springs included in the EnduraPro PLUS SP KIT allows for lowered ride height while also improving the ride quality and the cornering performance. Each TEIN EnduraPro PLUS SP KIT is sold as a set for 1 car, combining EnduraPro / EnduraPro PLUS dampers with the matching low-down springs, to offer a complete entry model damper kit at a very affordable price.

The TEIN EnduraPro PLUS SP KITs are made with a Hydraulic Bump Stopper (H.B.S) this provides more comfort and hight durability at the maximum passenger or cargo load. When regular shock absorbers fully stroke, their bump rubbers are compressed. The energy that is generated by that escapes as a repulsive force, which can disturb the vehicle's behavior. Furthermore, repeated full strokes can damage the damper. In the same situation the EnduraPro PLUS SP KIT, featuring H.B.S., internally convert the impact of the stroke to thermal energy (heat) and absorb it, strongly reducing the impact that disturbs the vehicle's behavior. With less damage to the dampers, H.B.S. also contributes to their durability. In shock absorbers with inactive or no H.B.S., the operative valve (green) floats, and oil flows freely through the base valve ports. Resistance to the flow from the shim stack then causes damping force. Near full compression, when the piston rod strokes beyond a predetermined point, the operative valve is pushed down and activates H.B.S.: the base valve ports are narrowed, blocking the oil flow. This results in high damping force. A relief valve serves to suppress sudden damping force increase when the pressure in the cylinder exceeds its regular level. The setup of the H.B.S. mechanism is optimized per vehicle model, with the right activation point and damping force.

EnduraPro SP Plus adds the following features:

Damping Force AdjustmentEnduraPro SP PLUS features 16-level damping force adjustment, for simultaneous adjustment of compression and rebound. Modify ride comfort and handling according to your preference, changing the properties of the shock absorber with the adjustment dial.

EDFC CompatibilityEnduraPro SP PLUS is compatible with the EDFC Series, which offer easy damping force adjustment from the driver's seat.

Standard Features

  • OE Shape
  • Sealed construction
  • Twin Tube internal construction
  • Fortified Installation Points
  • Fortified Shell Case with Large Oil Capacity
  • High-Performance Damper Oil
  • Damping force adjustment
  • EDFC Compatible
  • 1-year manufacturer's limited warranty
Specifications
Part Number VSQ54-B1SS2
Part Name EnduraPro Plus SP Coilovers
Vehicle 2017-2024 Subaru BRZ S, R RWD (ZC6)
Chassis ZC6
Engine 2000
Damping Adjustment 2-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 3 Kg/mm (167.99 lbs/in)
Spring Rates - Rear 4.6 Kg/mm (257.59 lbs/in)
Ride Height Range - Front Not Applicable
Ride Height Range - Rear Not Applicable
EDFC Compatible Yes
Vehicle Fitment
  • 2017 Subaru BRZ S, R RWD (ZC6)
  • 2018 Subaru BRZ S, R RWD (ZC6)
  • 2019 Subaru BRZ S, R RWD (ZC6)
  • 2020 Subaru BRZ S, R RWD (ZC6)
  • 2021 Subaru BRZ S, R RWD (ZC6)
  • 2022 Subaru BRZ S, R RWD (ZC6)
  • 2023 Subaru BRZ S, R RWD (ZC6)
  • 2024 Subaru BRZ S, R RWD (ZC6)
