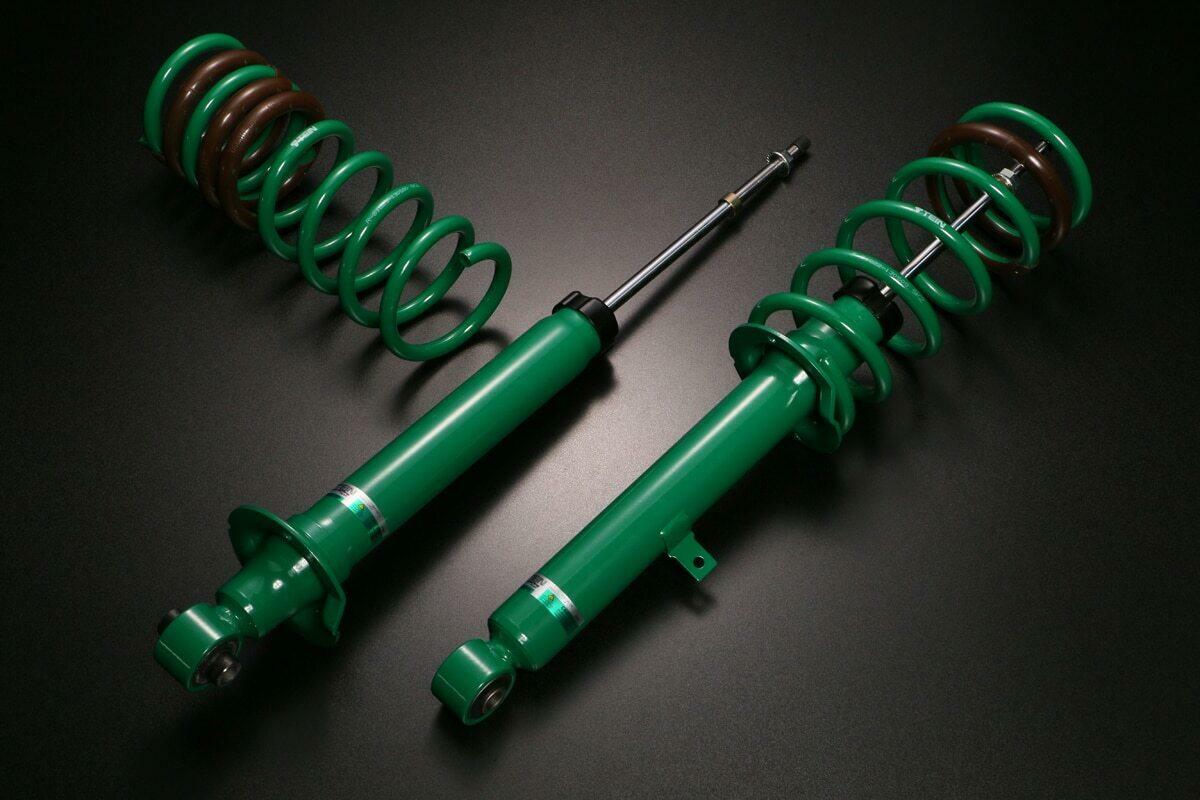

TEIN EnduraPro SP Coilover Kit - 2012-2015 Toyota Prius G, S, L FWD (ZVW30)

TEIN EnduraPro SP Coilover Kit - 2012-2015 Toyota Prius G, S, L FWD (ZVW30)

VSQ08-A1SS2

Out of stock

$741.00 USD
$780.00 USD $741.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The TEIN EnduraPro SP Coilover Kit is a high-performance suspension upgrade designed specifically for the 2012-2015 Toyota Prius G, S, and L FWD models with the ZVW30 chassis. This kit features OE-shape shock absorbers that maintain the vehicle's original appearance while delivering enhanced handling and ride comfort. The included low-down springs are exclusively designed to lower the ride height, improving the vehicle's stance and cornering stability without sacrificing ride quality. Constructed with durable materials and precision engineering, these coilovers provide a reliable upgrade for worn or leaking OE dampers, offering improved damping performance and a more responsive driving experience.

This coilover kit is a direct bolt-on replacement for the original shocks, compatible with the specified Prius models and engine configurations. It is intended for street use, providing a balance of comfort and performance for daily driving or spirited outings. The kit maintains the original upper mounts and spring seats, ensuring straightforward installation without modifications. Suitable for owners seeking to enhance their Prius’s handling and appearance, the EnduraPro SP Coilover Kit offers a cost-effective solution for lowering and upgrading suspension performance while preserving OEM compatibility.

Overview

The new TEIN EnduraPro SP Coilover Kit for your 2012-2015 Toyota Prius G, S, L FWD (ZVW30) is a high-performance OE-shape shock absorber kit. Each kit has been designed for use with the vehicle's original (OE) spring and upper-mount. The lower spring seat is shaped identical to the OE shock absorber. In addition to replacing worn or leaking OE dampers, exclusively-designed low-down springs included in the SP KIT allow for lowered ride height while also improving the ride quality and the cornering performance. Each TEIN EnduraPro SP KIT is sold as a set for 1 car, combining EnduraPro / EnduraPro PLUS dampers with the matching low-down springs, to offer a complete entry model damper kit at a very affordable price.

The TEIN EnduraPro SP KIT is made with a Hydraulic Bump Stopper (H.B.S) this provides more comfort and height durability at the maximum passenger or cargo load. When regular shock absorbers fully stroke, their bump rubbers are compressed. The energy that is generated by that escapes as a repulsive force, which can disturb the vehicle's behavior. Furthermore, repeated full strokes can damage the damper. In the same situation the EnduraPro SP KIT, featuring H.B.S., internally convert the impact of the stroke to thermal energy (heat) and absorb it, strongly reducing the impact that disturbs the vehicle's behavior. With less damage to the dampers, H.B.S. also contributes to their durability. In shock absorbers with inactive or no H.B.S., the operative valve (green) floats, and oil flows freely through the base valve ports. Resistance to the flow from the shim stack then causes damping force. Near full compression, when the piston rod strokes beyond a predetermined point, the operative valve is pushed down and activates H.B.S.: the base valve ports are narrowed, blocking the oil flow. This results in high damping force. A relief valve serves to suppress sudden damping force increase when the pressure in the cylinder exceeds its regular level. The setup of the H.B.S. mechanism is optimized per vehicle model, with the right activation point and damping force.

Standard Features

  • OE Shape
  • Sealed construction
  • Twin Tube internal construction
  • Fortified Installation Points
  • Fortified Shell Case with Large Oil Capacity
  • High-Performance Damper Oil
  • 1-year manufacturer's limited warranty
Specifications
Part Number VSQ08-A1SS2
Part Name EnduraPro SP Coilovers
Vehicle 2012-2015 Toyota Prius G, S, L FWD (ZVW30)
Chassis ZVW30
Engine 1800
Damping Adjustment 2-Way
Damping Adjustable - Front No
Damping Adjustable - Rear No
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 2.4 Kg/mm (134.39 lbs/in)
Spring Rates - Rear 3 Kg/mm (167.99 lbs/in)
Ride Height Range - Front Not Applicable
Ride Height Range - Rear Not Applicable
EDFC Compatible No
Notes RR: OE dust boot needs to be modified. Exclusively for Pre-Facelift model (Dec 2011 or later). Exclusively for vehicles with floating (input-separation) type upper mounts on front. Reference trim level G, S, l (excl. G and/or S models equipped with moonroof and/or 185/65-15 wheel).
Vehicle Fitment
  • 2012 Toyota Prius G, S, L FWD (ZVW30)
  • 2013 Toyota Prius G, S, L FWD (ZVW30)
  • 2014 Toyota Prius G, S, L FWD (ZVW30)
  • 2015 Toyota Prius G, S, L FWD (ZVW30)
