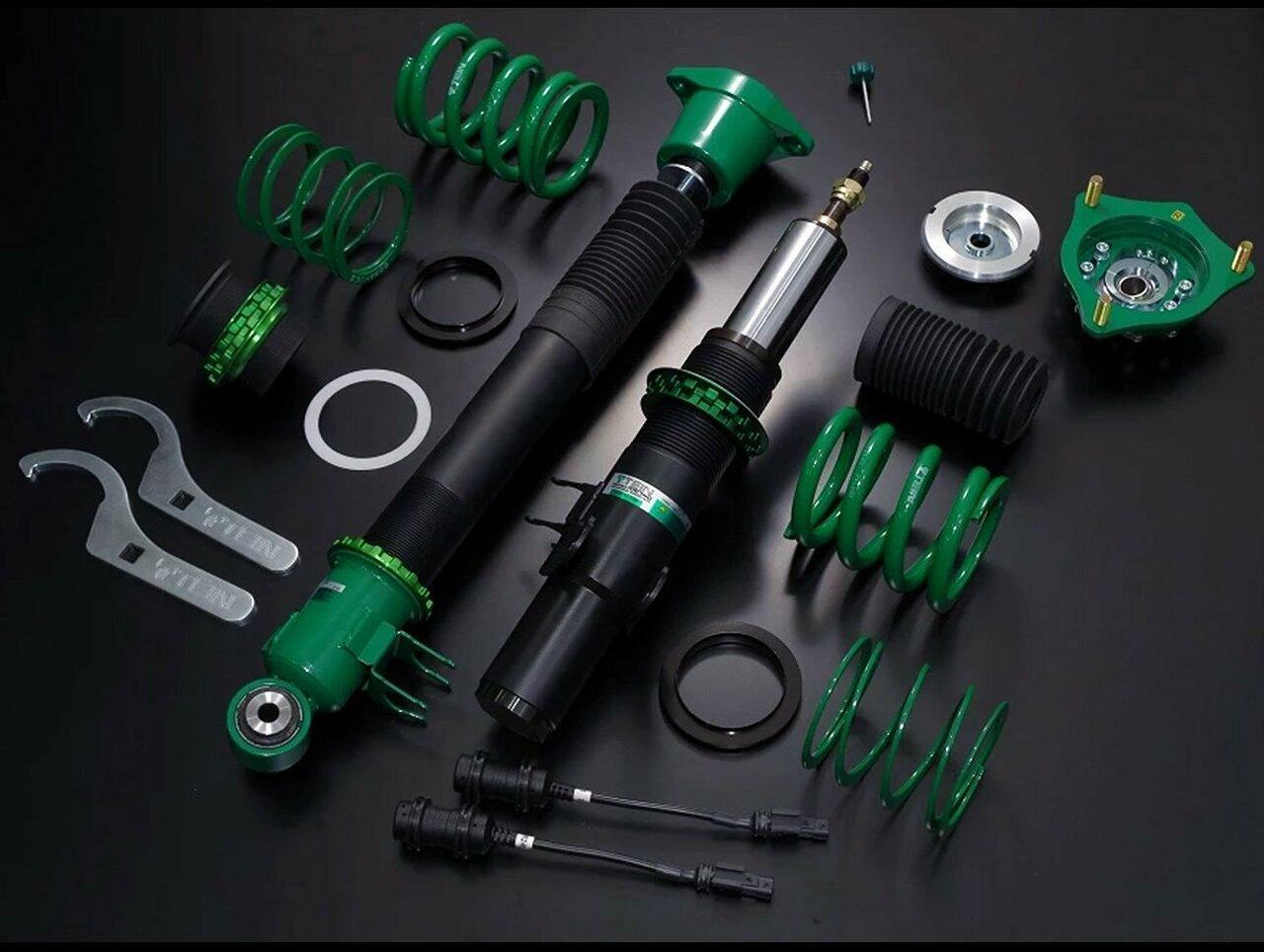

TEIN Mono Racing Coilover Kit - 2008-2016 Nissan Skyline Coupe RWD (CKV36)
TEIN Mono Racing Coilover Kit - 2008-2016 Nissan Skyline Coupe RWD (CKV36)
SKU:VSK04-K1NS3
Out of stock
Couldn't load pickup availability
The Tein Mono Racing Coilover Kit for the 2008-2016 Nissan Skyline Coupe RWD (CKV36) is a high-performance suspension upgrade designed for spirited driving and track use. Built with precision damping force and spring rates inspired by Tein's top-tier SUPER RACING model, this coilover kit offers enhanced handling, stability, and responsiveness. The kit features adjustable camber and caster angles through pillow ball upper mounts, allowing for fine-tuning of suspension geometry. Constructed with durable materials to withstand aggressive driving conditions, the Mono Racing coilovers deliver improved cornering performance and ride quality, making them ideal for motorsport enthusiasts and serious street drivers alike.
Designed specifically for the CKV36 chassis, these coilovers are a direct bolt-on replacement for the factory suspension, compatible with models equipped with RWD configurations. Suitable for use on race tracks, spirited street driving, or track days, they provide a significant upgrade over stock components. The kit includes adjustable dampers, pillow ball mounts, and all necessary hardware for installation. These coilovers are intended for drivers seeking precise handling adjustments and a lowered stance, with fitment optimized for the specified model and year range to ensure optimal performance and compatibility.
Share
Overview
Overview
MONO RACING for your 2008-2016 Nissan Skyline Coupe RWD (CKV36) is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.
For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually.
Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric collar 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences.
Mono tube structure of MONO RACING completely separates the oil chamber and the gas chamber and hence aeration does not occur. This enables stable generation of linear damping force, reacting to the finest changes in road surfaces, even when running aggressively and repeatedly on circuits. With this, superior-quality MONO RACING offers capability for the most delicate control of the vehicle and for the deepest level of communication with the roads.
Use of specially-designed urethane bump rubbers effectively reduces the bump impact, to maintain the comfortable ride even when going over bumps/gaps and to protect dampers from bottoming out. (The image shown is for wishbone / multi-link types. Some models use OE bump rubbers.)
MONO RACING uses "ADVANCE M.S.V." for damping force adjustment feature. "ADVANCE M.S.V." combines "M.S.V." mechanism to finely control damping force in micro speed range with "ADVANCE Needle" to widen the damping force adjustable range, for superior steering response and traction performance, fully utilizing the damping force adjustable range.
Standard Features
- Camber/Caster Adjustable Pillow Ball Upper Mounts
- Camber Adjustable Lower Bracket
- Selectable Spring Rate
- Damping Force Customize System Fortified Shell Case with Large Oil Capacity
- Monotube (upright strong tube)
- Full-length ride height adjustment
- Advance M.S.V.
- Damping force adjustment
- EDFC Compatible (optional)
- High durability and reliability
- Optimal Dust Boot
- No-Sag Spring
- High-Performance Damper Oil
- TEIN-Green Powder Coating
- Rust-proof Special Surface Treatment 'ZT Coating'
- 1-year manufacturer's limited warranty
Specifications
| Part Number | VSK04-K1NS3 |
| Part Name | Mono Racing Coilovers |
| Vehicle | 2008-2016 Nissan Skyline Coupe RWD (CKV36) |
| Chassis | CKV36 |
| Engine | 3700 |
| Damping Adjustment | 1-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Ride-Height Adjustable - Front | Yes |
| Ride-Height Adjustable - Rear | Yes |
| Upper Mounts - Front | Rubber Reinforced |
| Upper Mounts - Rear | Rubber Reinforced |
| Spring Rates - Front | 18 Kg/mm (1007.95 lbs/in) |
| Spring Rates - Rear | 18 Kg/mm (1007.95 lbs/in) |
| Ride Height Range - Front | -0.3 to -4.7 |
| Ride Height Range - Rear | -1.4 to -3.0 |
| EDFC Compatible | Yes |
| Notes | Warranty void because: minimum road clearance of 90mm might not be secured. Ride height adjustment not recommended. |
Vehicle Fitment
- 2008 Nissan Skyline Coupe RWD (CKV36)
- 2009 Nissan Skyline Coupe RWD (CKV36)
- 2010 Nissan Skyline Coupe RWD (CKV36)
- 2011 Nissan Skyline Coupe RWD (CKV36)
- 2012 Nissan Skyline Coupe RWD (CKV36)
- 2013 Nissan Skyline Coupe RWD (CKV36)
- 2014 Nissan Skyline Coupe RWD (CKV36)
- 2015 Nissan Skyline Coupe RWD (CKV36)
- 2016 Nissan Skyline Coupe RWD (CKV36)
