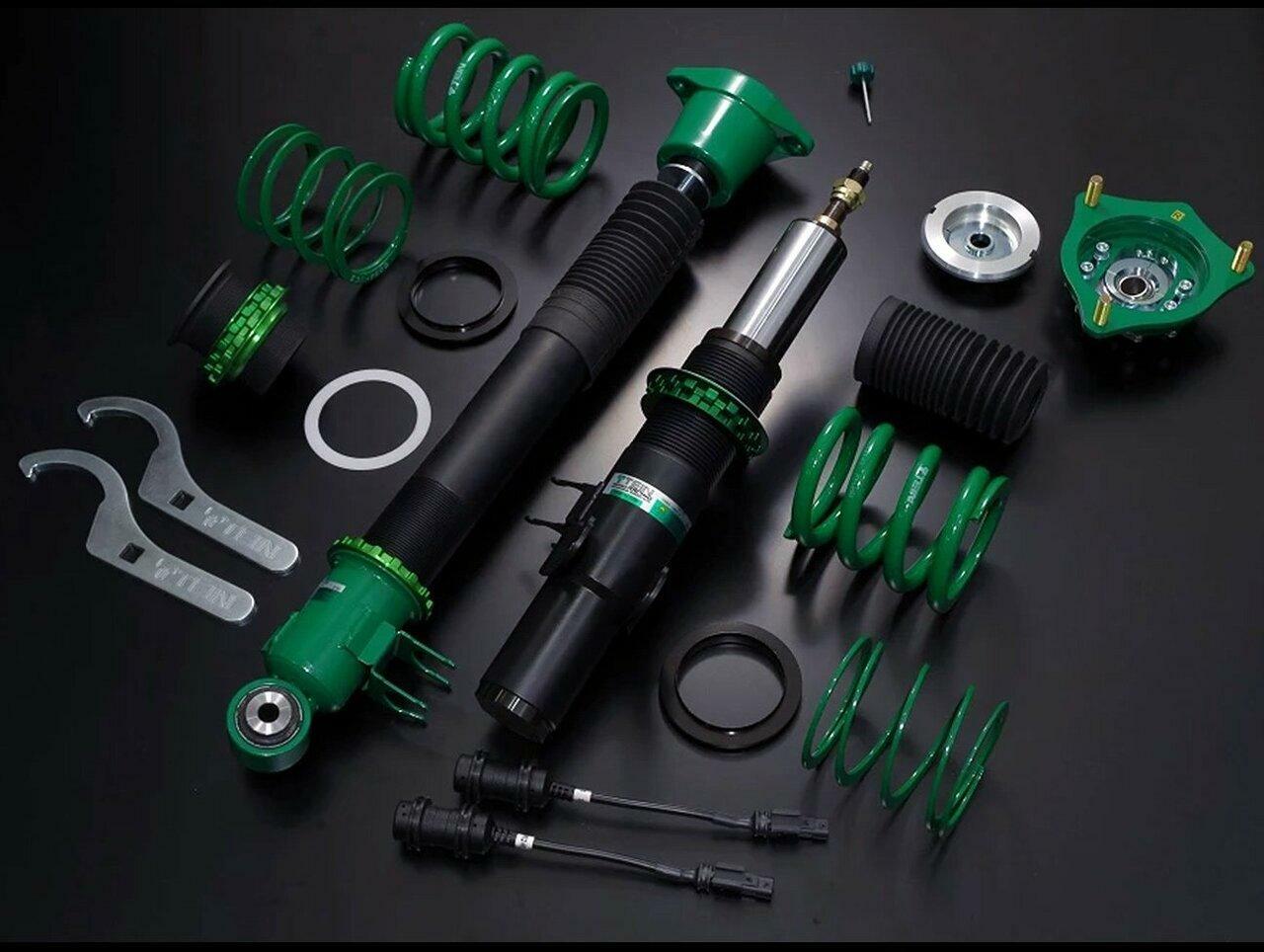

TEIN Mono Racing Coilover Kit - 2014-2015 Infiniti Q40 RWD (V36)

TEIN Mono Racing Coilover Kit - 2014-2015 Infiniti Q40 RWD (V36)

VSK04-K1NS3

Out of stock

$2,090.00 USD
$2,200.00 USD $2,090.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Mono Racing Coilover Kit for the 2014-2015 Infiniti Q40 RWD (V36) is a high-performance suspension upgrade designed for spirited driving and track use. Engineered based on the settings of Tein's premium Super Racing model and refined through motorsport data, this coilover kit offers optimized spring rates and damping forces tailored for sports driving. The kit features adjustable camber and caster angles via pillow ball upper mounts on the front struts, enhancing handling precision and stability. Constructed with durable materials, these coilovers deliver improved cornering, reduced body roll, and a more responsive driving experience, making them ideal for enthusiasts seeking a race-inspired setup.

Designed specifically for the 2014-2015 Infiniti Q40 RWD models, these coilovers are a direct bolt-on upgrade for vehicles with the V36 chassis. They are suitable for street and track applications, providing adjustable ride height and damping to suit various driving conditions. Installation involves replacing the stock suspension components with these coilovers, which include the necessary mounts and hardware. Compatible with models equipped with the V36 chassis, they are intended for drivers looking to enhance handling performance and vehicle control during aggressive driving or track days.

Overview

MONO RACING for your 2014-2015 Infiniti Q40 RWD (V36) is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.

For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually.

Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric collar 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences.

Mono tube structure of MONO RACING completely separates the oil chamber and the gas chamber and hence aeration does not occur. This enables stable generation of linear damping force, reacting to the finest changes in road surfaces, even when running aggressively and repeatedly on circuits. With this, superior-quality MONO RACING offers capability for the most delicate control of the vehicle and for the deepest level of communication with the roads.

Use of specially-designed urethane bump rubbers effectively reduces the bump impact, to maintain the comfortable ride even when going over bumps/gaps and to protect dampers from bottoming out. (The image shown is for wishbone / multi-link types. Some models use OE bump rubbers.)

MONO RACING uses "ADVANCE M.S.V." for damping force adjustment feature. "ADVANCE M.S.V." combines "M.S.V." mechanism to finely control damping force in micro speed range with "ADVANCE Needle" to widen the damping force adjustable range, for superior steering response and traction performance, fully utilizing the damping force adjustable range.

Standard Features

  • Camber/Caster Adjustable Pillow Ball Upper Mounts
  • Camber Adjustable Lower Bracket
  • Selectable Spring Rate
  • Damping Force Customize System Fortified Shell Case with Large Oil Capacity
  • Monotube (upright strong tube)
  • Full-length ride height adjustment
  • Advance M.S.V.
  • Damping force adjustment
  • EDFC Compatible (optional)
  • High durability and reliability
  • Optimal Dust Boot
  • No-Sag Spring
  • High-Performance Damper Oil
  • TEIN-Green Powder Coating
  • Rust-proof Special Surface Treatment 'ZT Coating'
  • 1-year manufacturer's limited warranty
Specifications
Part Number VSK04-K1NS3
Part Name Mono Racing Coilovers
Vehicle 2014-2015 Infiniti Q40 RWD (V36)
Chassis V36
Engine 3700
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front Yes
Ride-Height Adjustable - Rear Yes
Upper Mounts - Front Rubber Reinforced
Upper Mounts - Rear Rubber Reinforced
Spring Rates - Front 18 Kg/mm (1007.95 lbs/in)
Spring Rates - Rear 18 Kg/mm (1007.95 lbs/in)
Ride Height Range - Front -0.7 to -5.1
Ride Height Range - Rear -1.6 to -3.3
EDFC Compatible Yes
Vehicle Fitment
  • 2014 Infiniti Q40 RWD (V36)
  • 2015 Infiniti Q40 RWD (V36)
