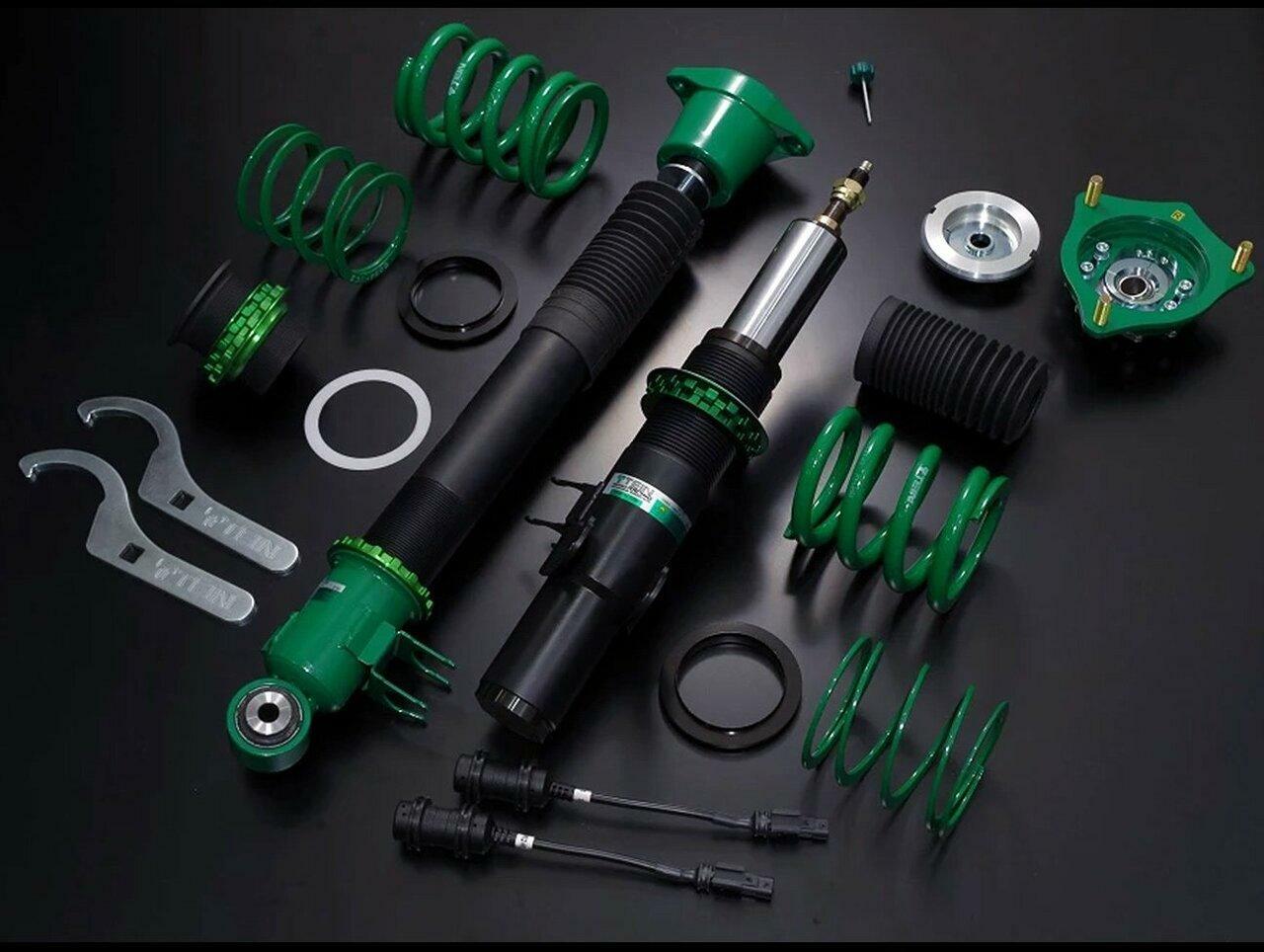

TEIN Mono Racing Coilover Kit - 2015-2024 Subaru WRX STI AWD (VAB)
TEIN Mono Racing Coilover Kit - 2015-2024 Subaru WRX STI AWD (VAB)
SKU:VSSB0-K1LS1
Couldn't load pickup availability
MONO RACING for your 2015-2024 Subaru WRX STI AWD (VAB) is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.
For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually.
Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric collar 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences.
Mono tube structure of MONO RACING completely separates the oil chamber and the gas chamber and hence aeration does not occur. This enables stable generation of linear damping force, reacting to the finest changes in road surfaces, even when running aggressively and repeatedly on circuits. With this, superior-quality MONO RACING offers capability for the most delicate control of the vehicle and for the deepest level of communication with the roads.
Use of specially-designed urethane bump rubbers effectively reduces the bump impact, to maintain the comfortable ride even when going over bumps/gaps and to protect dampers from bottoming out. (The image shown is for wishbone / multi-link types. Some models use OE bump rubbers.)
MONO RACING uses "ADVANCE M.S.V." for damping force adjustment feature. "ADVANCE M.S.V." combines "M.S.V." mechanism to finely control damping force in micro speed range with "ADVANCE Needle" to widen the damping force adjustable range, for superior steering response and traction performance, fully utilizing the damping force adjustable range.
Standard Features
- Camber/Caster Adjustable Pillow Ball Upper Mounts
- Camber Adjustable Lower Bracket
- Selectable Spring Rate
- Damping Force Customize System Fortified Shell Case with Large Oil Capacity
- Monotube (upright strong tube)
- Full-length ride height adjustment
- Advance M.S.V.
- Damping force adjustment
- EDFC Compatible (optional)
- High durability and reliability
- Optimal Dust Boot
- No-Sag Spring
- High-Performance Damper Oil
- TEIN-Green Powder Coating
- Rust-proof Special Surface Treatment 'ZT Coating'
- 1-year manufacturer's limited warranty
Specifications
| Part Number | VSSB0-K1LS1 |
| Part Name | Mono Racing Coilovers |
| Vehicle | 2015-2024 Subaru WRX STI AWD (VAB) |
| Chassis | VAB |
| Engine | 2000 |
| Damping Adjustment | 1-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Ride-Height Adjustable - Front | Yes |
| Ride-Height Adjustable - Rear | Yes |
| Upper Mounts - Front | Camber Caster Adjustable |
| Upper Mounts - Rear | Pillowball |
| Spring Rates - Front | 14 Kg/mm (783.96 lbs/in) |
| Spring Rates - Rear | 16 Kg/mm (895.96 lbs/in) |
| Ride Height Range - Front | 0.0 to -2.9 |
| Ride Height Range - Rear | 0.0 to -2.9 |
| EDFC Compatible | Yes |
| Notes | RR: Interior needs to be cut or removed, to avoid interference. Eccentric collars with different offsets, for camber angle adjustment, are available (sold separately). From the positive angle set with the included collars, replace the collars with optional collars SPS12-R16100-25 to set the angle further positive, and with SPS12-R16100-05 to set to negative direction. From the negative angle set with the included collars, replace the collars with optional collars SPS12-R16100-05 to set the angle further negative, and with SPS12-R16100-25 to set to positive direction (both sold separately). |
Vehicle Fitment
- 2015 Subaru WRX STI AWD (VAB)
- 2016 Subaru WRX STI AWD (VAB)
- 2017 Subaru WRX STI AWD (VAB)
- 2018 Subaru WRX STI AWD (VAB)
- 2019 Subaru WRX STI AWD (VAB)
- 2020 Subaru WRX STI AWD (VAB)
- 2021 Subaru WRX STI AWD (VAB)
- 2022 Subaru WRX STI AWD (VAB)
- 2023 Subaru WRX STI AWD (VAB)
- 2024 Subaru WRX STI AWD (VAB)
