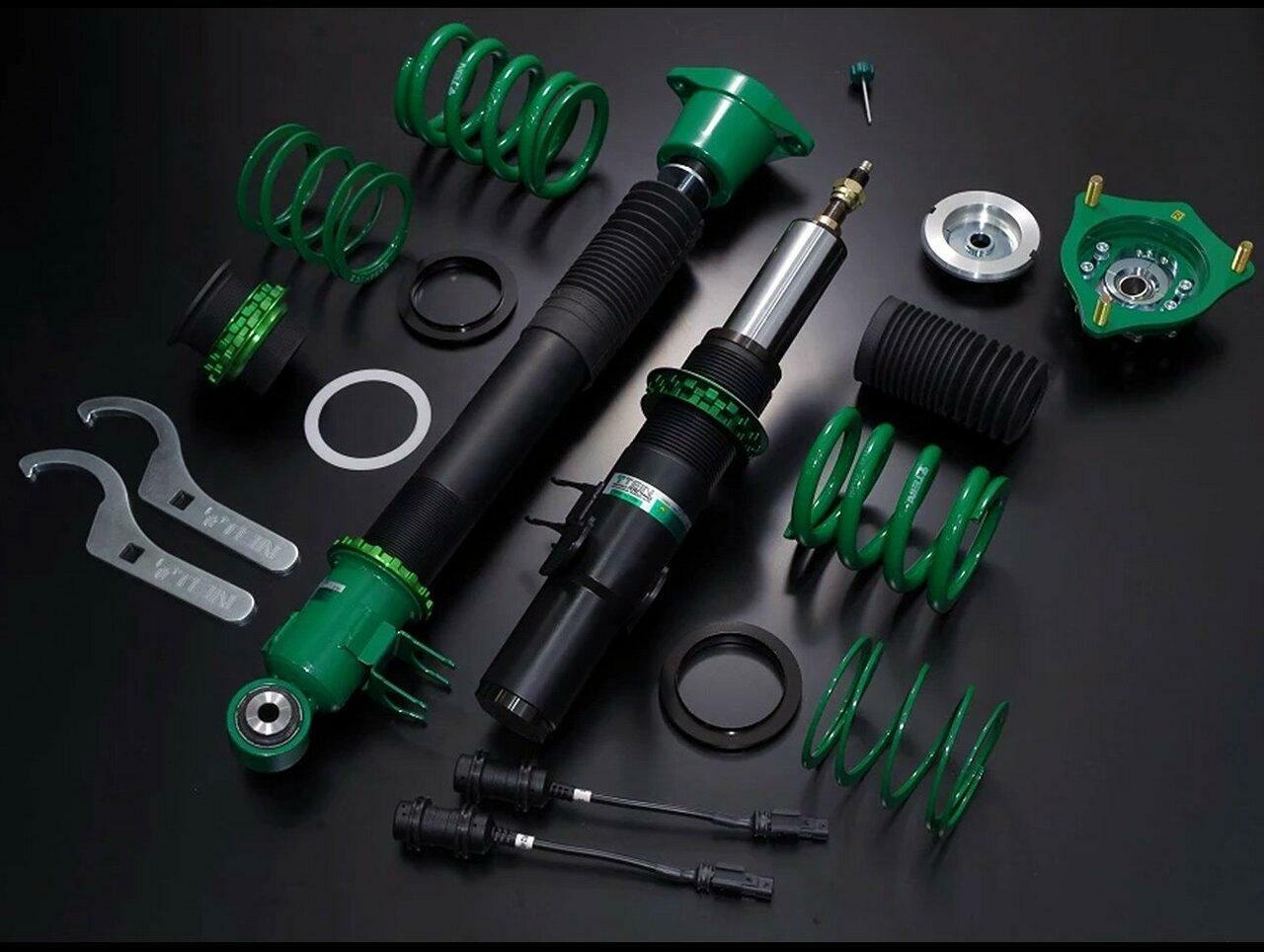

TEIN Mono Racing Coilover Kit - 2015-2024 Subaru WRX STI AWD (VAF)

TEIN Mono Racing Coilover Kit - 2015-2024 Subaru WRX STI AWD (VAF)

VSSB0-K1LS1

Out of stock

$2,061.50 USD
$2,170.00 USD $2,061.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Mono Racing Coilover Kit for the 2015-2024 Subaru WRX STI AWD (VAF) is a high-performance suspension upgrade designed for spirited driving and track use. Built with a monotube damper design, this coilover kit offers precise damping control and improved handling characteristics. The springs are tuned for sports driving, providing a balance of stability and responsiveness. The kit features adjustable camber and caster angles via pillow ball upper mounts, allowing for fine-tuning of suspension geometry to optimize grip and cornering performance. Constructed with durable materials, these coilovers are engineered to withstand the rigors of aggressive driving while maintaining ride quality.

Designed specifically for 2015-2024 Subaru WRX STI AWD models, this coilover kit is a direct bolt-on replacement for stock suspension components. It is ideal for track enthusiasts, street performance drivers, and those seeking enhanced handling capabilities. The kit includes adjustable coilovers with pillow ball mounts, providing customization for various driving conditions. Compatibility is limited to models with the specified chassis and drivetrain configuration, ensuring optimal fitment and performance. Whether for daily driving or competitive motorsports, these coilovers deliver superior stability, control, and a tailored ride experience.

Overview

MONO RACING for your 2015-2024 Subaru WRX STI AWD (VAF) is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.

For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually.

Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric collar 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences.

Mono tube structure of MONO RACING completely separates the oil chamber and the gas chamber and hence aeration does not occur. This enables stable generation of linear damping force, reacting to the finest changes in road surfaces, even when running aggressively and repeatedly on circuits. With this, superior-quality MONO RACING offers capability for the most delicate control of the vehicle and for the deepest level of communication with the roads.

Use of specially-designed urethane bump rubbers effectively reduces the bump impact, to maintain the comfortable ride even when going over bumps/gaps and to protect dampers from bottoming out. (The image shown is for wishbone / multi-link types. Some models use OE bump rubbers.)

MONO RACING uses "ADVANCE M.S.V." for damping force adjustment feature. "ADVANCE M.S.V." combines "M.S.V." mechanism to finely control damping force in micro speed range with "ADVANCE Needle" to widen the damping force adjustable range, for superior steering response and traction performance, fully utilizing the damping force adjustable range.

Standard Features

  • Camber/Caster Adjustable Pillow Ball Upper Mounts
  • Camber Adjustable Lower Bracket
  • Selectable Spring Rate
  • Damping Force Customize System Fortified Shell Case with Large Oil Capacity
  • Monotube (upright strong tube)
  • Full-length ride height adjustment
  • Advance M.S.V.
  • Damping force adjustment
  • EDFC Compatible (optional)
  • High durability and reliability
  • Optimal Dust Boot
  • No-Sag Spring
  • High-Performance Damper Oil
  • TEIN-Green Powder Coating
  • Rust-proof Special Surface Treatment 'ZT Coating'
  • 1-year manufacturer's limited warranty
Specifications
Part Number VSSB0-K1LS1
Part Name Mono Racing Coilovers
Vehicle 2015-2024 Subaru WRX STI AWD (VAF)
Chassis VAF
Engine 2500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front Yes
Ride-Height Adjustable - Rear Yes
Upper Mounts - Front Camber Caster Adjustable
Upper Mounts - Rear Pillowball
Spring Rates - Front 14 Kg/mm (783.96 lbs/in)
Spring Rates - Rear 16 Kg/mm (895.96 lbs/in)
Ride Height Range - Front 0.2 to -2.7
Ride Height Range - Rear -0.2 to -3.1
EDFC Compatible Yes
Notes RR: Interior needs to be cut or removed, to avoid interference. Eccentric collars with different offsets, for camber angle adjustment, are available (sold separately). From the positive angle set with the included collars, replace the collars with optional collars SPS12-R16100-25 to set the angle further positive, and with SPS12-R16100-05 to set to negative direction. From the negative angle set with the included collars, replace the collars with optional collars SPS12-R16100-05 to set the angle further negative, and with SPS12-R16100-25 to set to positive direction (both sold separately).
Vehicle Fitment
  • 2015 Subaru WRX STI AWD (VAF)
  • 2016 Subaru WRX STI AWD (VAF)
  • 2017 Subaru WRX STI AWD (VAF)
  • 2018 Subaru WRX STI AWD (VAF)
  • 2019 Subaru WRX STI AWD (VAF)
  • 2020 Subaru WRX STI AWD (VAF)
  • 2021 Subaru WRX STI AWD (VAF)
  • 2022 Subaru WRX STI AWD (VAF)
  • 2023 Subaru WRX STI AWD (VAF)
  • 2024 Subaru WRX STI AWD (VAF)
