TEIN Mono Racing Coilover Kit - 2015-2024 Subaru WRX STI Type-S AWD (VAB)

TEIN Mono Racing Coilover Kit - 2015-2024 Subaru WRX STI Type-S AWD (VAB)

VSSB0-K1LS1

Out of stock

$2,061.50 USD
$2,170.00 USD $2,061.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

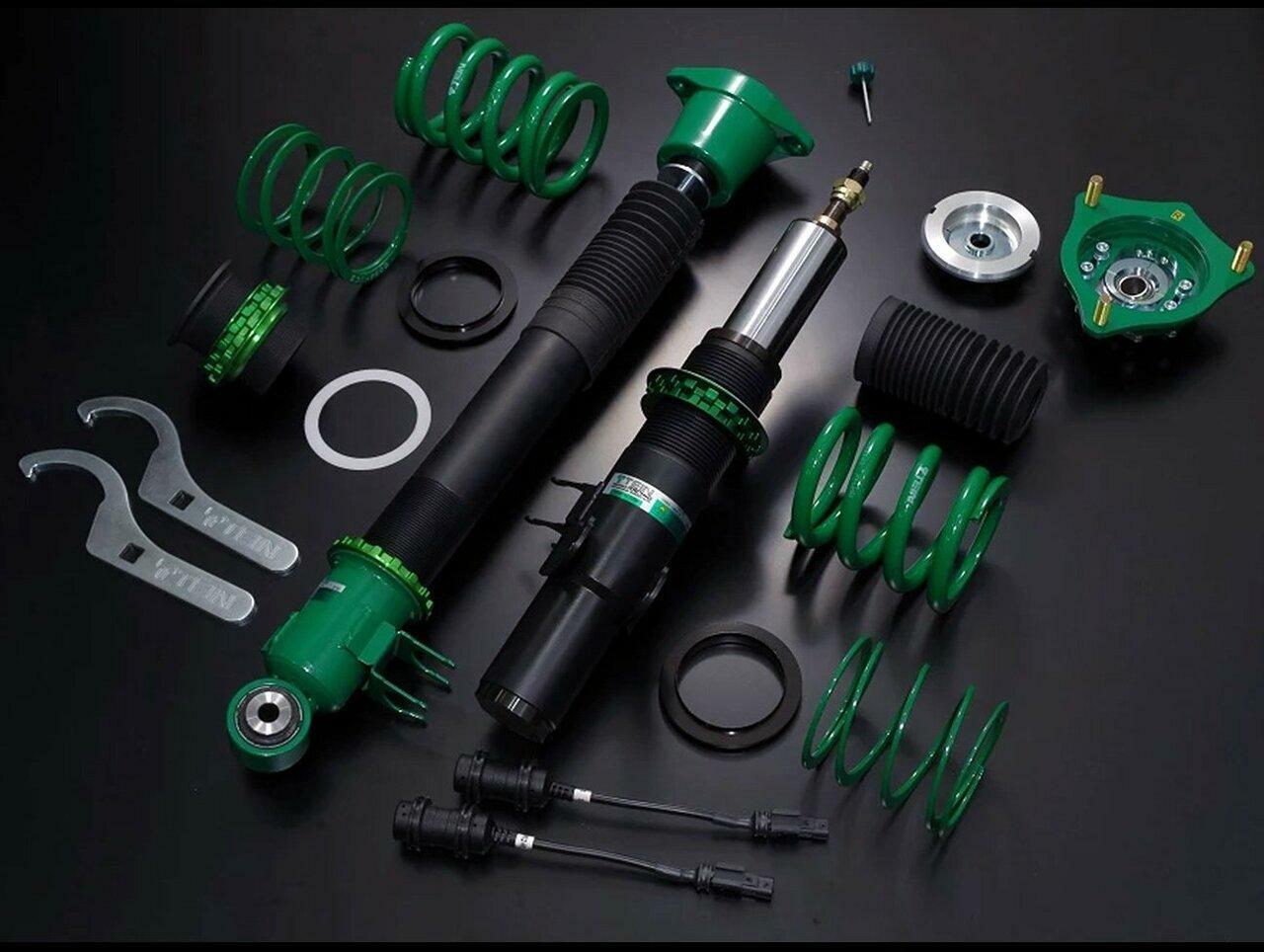

The Tein Mono Racing Coilover Kit for the 2015-2024 Subaru WRX STI Type-S AWD (VAB) is a high-performance suspension upgrade designed for spirited driving and track use. Engineered based on the settings of the premium SUPER RACING model and refined through extensive motorsport data, this coilover kit offers optimized spring rates and damping forces for enhanced handling and stability. The kit features front strut suspensions with camber and caster angle adjustable pillow ball mounts, allowing for precise alignment tuning. Constructed with durable materials, these coilovers deliver improved responsiveness, reduced body roll, and a more aggressive stance, making them ideal for drivers seeking a race-inspired experience.

Designed specifically for the Subaru WRX STI Type-S AWD (VAB) from 2015 to 2024, this coilover kit is a direct bolt-on upgrade that enhances both street and track performance. It is suitable for enthusiasts aiming for improved cornering, handling, and overall driving dynamics. The kit includes adjustable components to tailor the suspension setup to individual preferences and driving conditions. Compatible with the stock chassis and suspension geometry, these coilovers are perfect for daily drivers, track days, or competitive motorsports, providing a reliable and high-quality upgrade for demanding drivers.

Overview

MONO RACING for your 2015-2024 Subaru WRX STI Type-S AWD (VAB) is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.

For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually.

Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric collar 180°. This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences.

Mono tube structure of MONO RACING completely separates the oil chamber and the gas chamber and hence aeration does not occur. This enables stable generation of linear damping force, reacting to the finest changes in road surfaces, even when running aggressively and repeatedly on circuits. With this, superior-quality MONO RACING offers capability for the most delicate control of the vehicle and for the deepest level of communication with the roads.

Use of specially-designed urethane bump rubbers effectively reduces the bump impact, to maintain the comfortable ride even when going over bumps/gaps and to protect dampers from bottoming out. (The image shown is for wishbone / multi-link types. Some models use OE bump rubbers.)

MONO RACING uses "ADVANCE M.S.V." for damping force adjustment feature. "ADVANCE M.S.V." combines "M.S.V." mechanism to finely control damping force in micro speed range with "ADVANCE Needle" to widen the damping force adjustable range, for superior steering response and traction performance, fully utilizing the damping force adjustable range.

Standard Features

  • Camber/Caster Adjustable Pillow Ball Upper Mounts
  • Camber Adjustable Lower Bracket
  • Selectable Spring Rate
  • Damping Force Customize System Fortified Shell Case with Large Oil Capacity
  • Monotube (upright strong tube)
  • Full-length ride height adjustment
  • Advance M.S.V.
  • Damping force adjustment
  • EDFC Compatible (optional)
  • High durability and reliability
  • Optimal Dust Boot
  • No-Sag Spring
  • High-Performance Damper Oil
  • TEIN-Green Powder Coating
  • Rust-proof Special Surface Treatment 'ZT Coating'
  • 1-year manufacturer's limited warranty
Specifications
Part Number VSSB0-K1LS1
Part Name Mono Racing Coilovers
Vehicle 2015-2024 Subaru WRX STI Type-S AWD (VAB)
Chassis VAB
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front Yes
Ride-Height Adjustable - Rear Yes
Upper Mounts - Front Camber Caster Adjustable
Upper Mounts - Rear Pillowball
Spring Rates - Front 14 Kg/mm (783.96 lbs/in)
Spring Rates - Rear 16 Kg/mm (895.96 lbs/in)
Ride Height Range - Front 0.0 to -2.9
Ride Height Range - Rear 0.0 to -2.9
EDFC Compatible Yes
Notes RR: Interior needs to be cut or removed, to avoid interference. Eccentric collars with different offsets, for camber angle adjustment, are available (sold separately). From the positive angle set with the included collars, replace the collars with optional collars SPS12-R16100-25 to set the angle further positive, and with SPS12-R16100-05 to set to negative direction. From the negative angle set with the included collars, replace the collars with optional collars SPS12-R16100-05 to set the angle further negative, and with SPS12-R16100-25 to set to positive direction (both sold separately).
Vehicle Fitment
  • 2015 Subaru WRX STI Type-S AWD (VAB)
  • 2016 Subaru WRX STI Type-S AWD (VAB)
  • 2017 Subaru WRX STI Type-S AWD (VAB)
  • 2018 Subaru WRX STI Type-S AWD (VAB)
  • 2019 Subaru WRX STI Type-S AWD (VAB)
  • 2020 Subaru WRX STI Type-S AWD (VAB)
  • 2021 Subaru WRX STI Type-S AWD (VAB)
  • 2022 Subaru WRX STI Type-S AWD (VAB)
  • 2023 Subaru WRX STI Type-S AWD (VAB)
  • 2024 Subaru WRX STI Type-S AWD (VAB)
View full details
