TEIN Street Advance Z Coilover Kit - 2005-2010 Toyota Vitz U FWD (SCP90)

TEIN Street Advance Z Coilover Kit - 2005-2010 Toyota Vitz U FWD (SCP90)

GSL70-91AS2

In stock

$912.00 USD
$960.00 USD $912.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a performance suspension upgrade designed specifically for the 2005-2010 Toyota Vitz U FWD (SCP90). Engineered to enhance handling and stance, these coilovers feature a stiffer setup combined with a comfortable ride quality. They incorporate 16-way damping force adjustable settings, allowing precise tuning to suit street driving preferences. The coilovers are constructed with durable materials and utilize an ultra-strong ZT coating for corrosion resistance and longevity. They deliver improved shock absorption, better control, and a more aggressive appearance, making them suitable for enthusiasts seeking both performance and style.

Designed for 2005-2010 Toyota Vitz U FWD models, these coilovers are a direct bolt-on upgrade that maintains compatibility with the vehicle’s existing suspension components. They accommodate various driving conditions, including daily street use and spirited driving, by offering adjustable damping and ride height. The kit includes coilover units with integrated shock absorbers, providing a comprehensive suspension enhancement. Installation is straightforward for those familiar with suspension modifications, and the adjustable features enable fine-tuning for optimal handling and stance. These coilovers are ideal for drivers aiming to improve vehicle responsiveness and aesthetic appeal.

Overview

TEIN Street Advance Z Coilovers for your 2005-2010 Toyota Vitz U FWD (SCP90) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

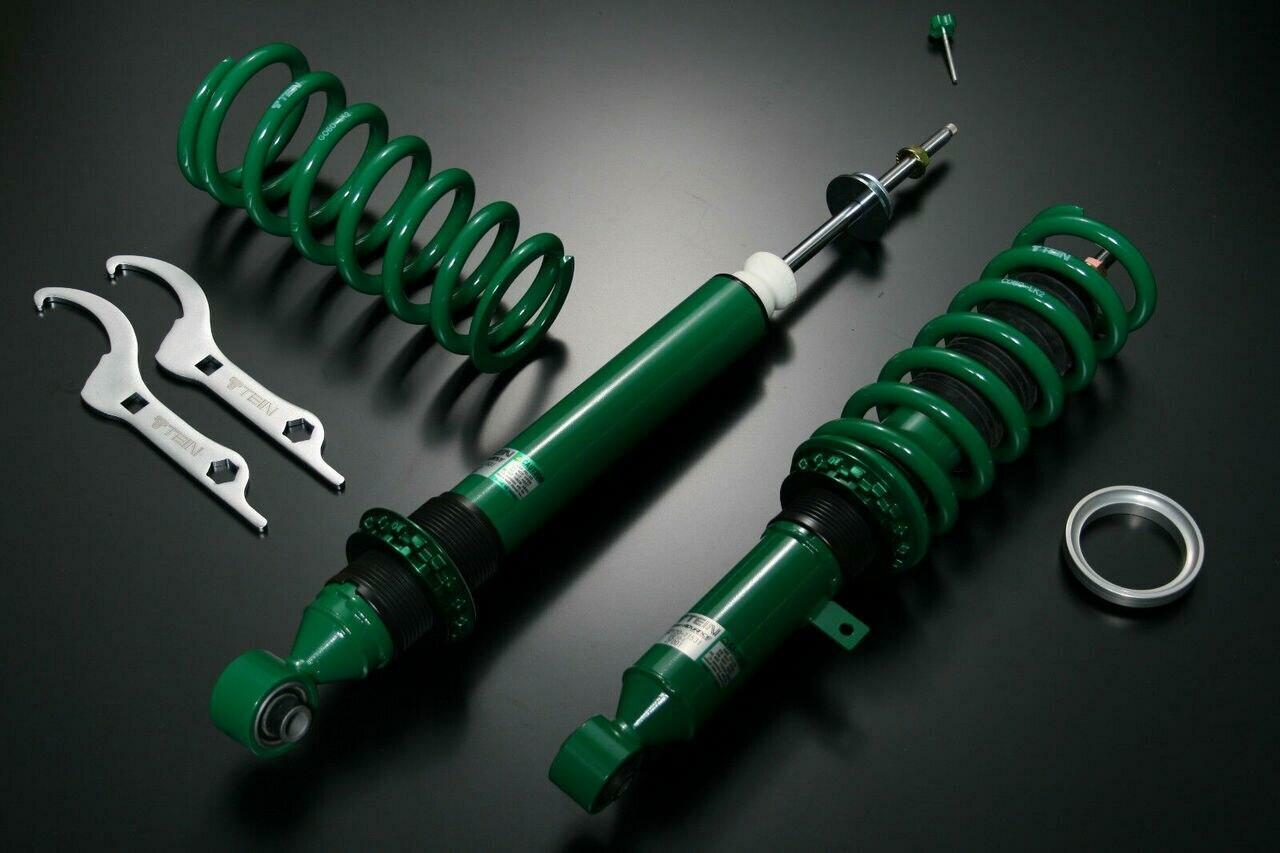

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSL70-91AS2
Part Name Street Advance Z Coilovers
Vehicle 2005-2010 Toyota Vitz U FWD (SCP90)
Chassis SCP90
Engine 1300
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 4 Kg/mm (223.99 lbs/in)
Spring Rates - Rear 3.1 Kg/mm (173.59 lbs/in)
Ride Height Range - Front -0.9 to -2.4
Ride Height Range - Rear -0.9 to -2.4
EDFC Compatible No
Vehicle Fitment
  • 2005 Toyota Vitz U FWD (SCP90)
  • 2006 Toyota Vitz U FWD (SCP90)
  • 2007 Toyota Vitz U FWD (SCP90)
  • 2008 Toyota Vitz U FWD (SCP90)
  • 2009 Toyota Vitz U FWD (SCP90)
  • 2010 Toyota Vitz U FWD (SCP90)
