TEIN Street Advance Z Coilover Kit - 2005-2015 Mazda Roadster Base, RS, VS RWD (NCEC)

TEIN Street Advance Z Coilover Kit - 2005-2015 Mazda Roadster Base, RS, VS RWD (NCEC)

GSM74-91SS2

In stock

$769.50 USD
$810.00 USD $769.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a performance suspension upgrade designed for the 2005-2015 Mazda Roadster models, including Base, RS, and VS RWD variants with the NCEC engine. Engineered to enhance handling and stance, these coilovers feature a stiffer yet comfortable ride, making them suitable for street driving and spirited driving alike. With 16-way adjustable damping settings, users can fine-tune the shock absorption to match their driving preferences, providing a noticeable difference in ride quality and control. The coilovers are constructed with durable materials and incorporate a design that maintains ample shock travel even at lowered ride heights, ensuring both performance and ride comfort are optimized.

These coilovers are a direct bolt-on upgrade for Mazda Roadsters from 2005 to 2015, compatible with RWD configurations. They are intended for enthusiasts seeking improved handling, aggressive stance, and customizable damping for street or track use. Installation involves replacing the existing suspension components with the coilover units, which include all necessary hardware for a straightforward upgrade. Suitable for daily driving, spirited street use, or track days, these coilovers provide a reliable and adjustable suspension solution to elevate vehicle performance and aesthetics.

Overview

TEIN Street Advance Z Coilovers for your 2005-2015 Mazda Roadster Base, RS, VS RWD (NCEC) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

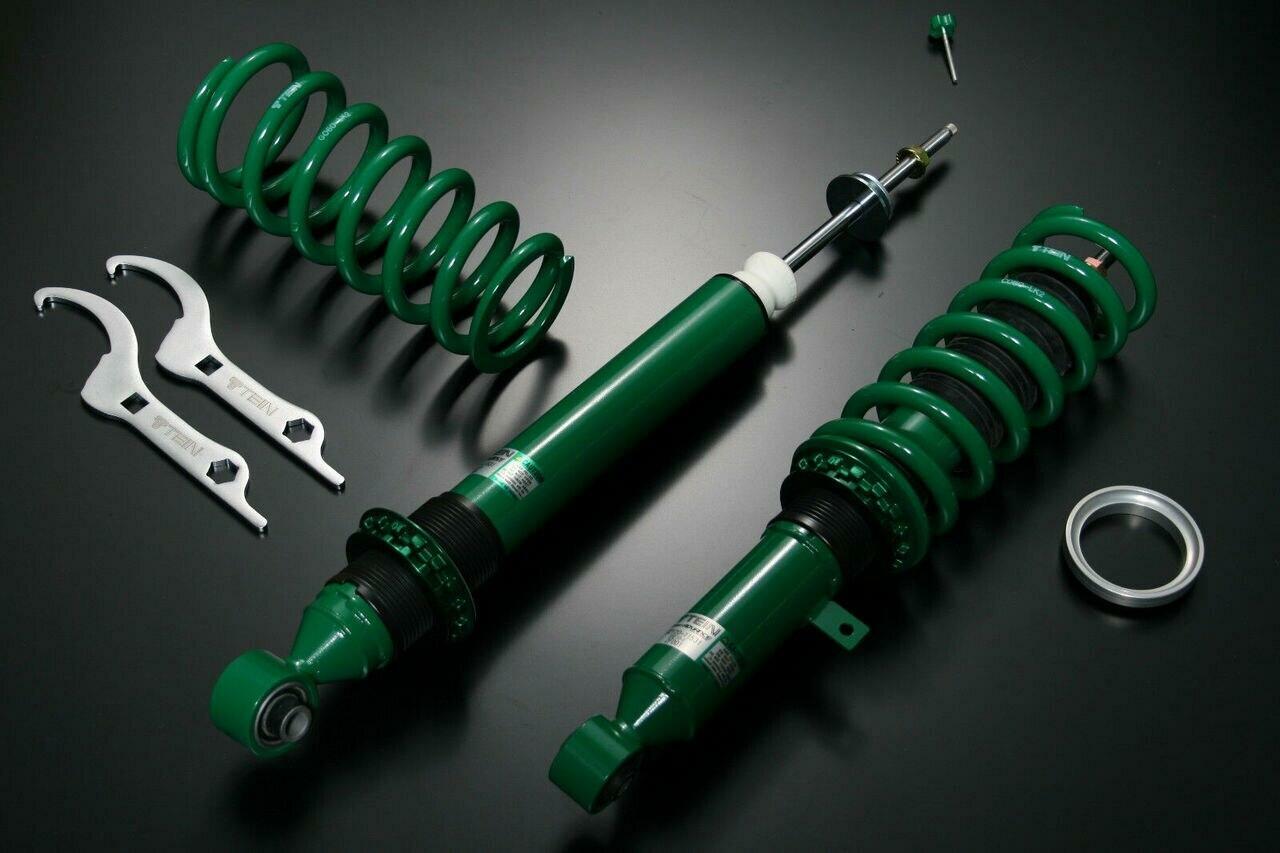

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSM74-91SS2
Part Name Street Advance Z Coilovers
Vehicle 2005-2015 Mazda Roadster Base, RS, VS RWD (NCEC)
Chassis NCEC
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 5.5 Kg/mm (307.99 lbs/in)
Spring Rates - Rear 3.5 Kg/mm (195.99 lbs/in)
Ride Height Range - Front -0.6 to -3.6
Ride Height Range - Rear -0.6 to -2.2
EDFC Compatible No
Vehicle Fitment
  • 2005 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2006 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2007 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2008 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2009 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2010 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2011 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2012 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2013 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2014 Mazda Roadster Base, RS, VS RWD (NCEC)
  • 2015 Mazda Roadster Base, RS, VS RWD (NCEC)
