TEIN Street Advance Z Coilover Kit - 2007-2014 Mazda Demio 15C, Sport FWD (DE5FS)

TEIN Street Advance Z Coilover Kit - 2007-2014 Mazda Demio 15C, Sport FWD (DE5FS)

GSM90-91AS3

Out of stock

$978.50 USD
$1,030.00 USD $978.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a performance suspension upgrade designed for the 2007-2014 Mazda Demio 15C, Sport FWD (DE5FS). Engineered to enhance handling and stance, these coilovers feature a stiffer yet comfortable ride with aggressive aesthetics. They incorporate 16-way adjustable damping settings, allowing precise tuning to suit street driving or spirited performance. The coilovers are constructed with durable materials and provide ample shock travel even at lower ride heights, ensuring improved stability and control. The ultra-strong ZT adjustable components enable fine-tuning of ride firmness and height, making them suitable for enthusiasts seeking a customizable suspension setup.

Designed specifically for 2007-2014 Mazda Demio 15C, Sport FWD models with the DE5FS chassis, these coilovers are a direct bolt-on upgrade for the factory suspension. They are ideal for street performance, daily driving, or light spirited use, offering improved handling and stance without sacrificing ride comfort. Installation involves replacing the stock shocks and springs with the coilover units, which include all necessary components for a straightforward upgrade. These coilovers are compatible with vehicles equipped with standard suspension setups and are intended for drivers looking to enhance vehicle responsiveness and appearance.

Overview

TEIN Street Advance Z Coilovers for your 2007-2014 Mazda Demio 15C, Sport FWD (DE5FS) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

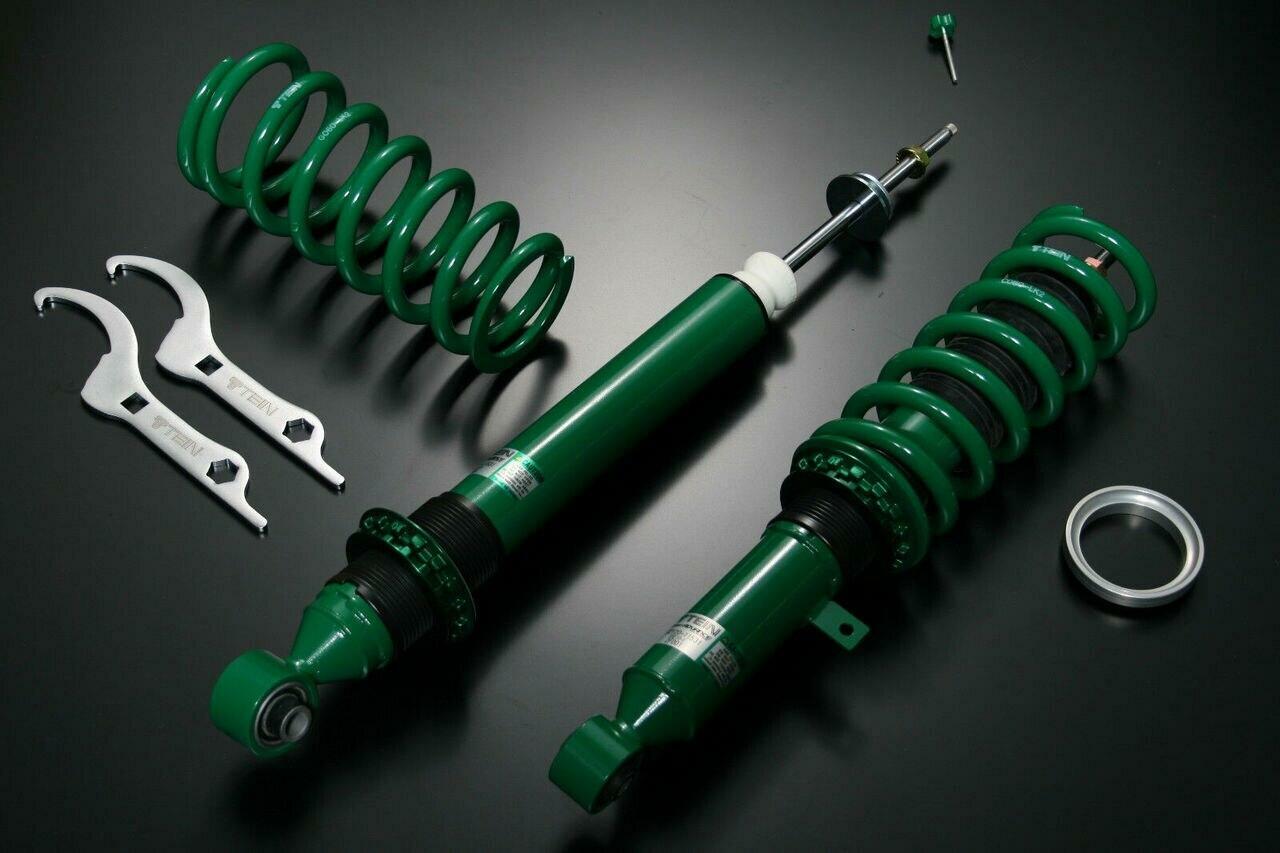

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSM90-91AS3
Part Name Street Advance Z Coilovers
Vehicle 2007-2014 Mazda Demio 15C, Sport FWD (DE5FS)
Chassis DE5FS
Engine 1500
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear Rubber Reinforced
Spring Rates - Front 2.5 Kg/mm (139.99 lbs/in)
Spring Rates - Rear 1.9 Kg/mm (106.39 lbs/in)
Ride Height Range - Front -1.5 to -3.0
Ride Height Range - Rear -0.7 to -2.3
EDFC Compatible Yes
Notes RR: Spring insulator need to be modified.
Vehicle Fitment
  • 2007 Mazda Demio 15C, Sport FWD (DE5FS)
  • 2008 Mazda Demio 15C, Sport FWD (DE5FS)
  • 2009 Mazda Demio 15C, Sport FWD (DE5FS)
  • 2010 Mazda Demio 15C, Sport FWD (DE5FS)
  • 2011 Mazda Demio 15C, Sport FWD (DE5FS)
  • 2012 Mazda Demio 15C, Sport FWD (DE5FS)
  • 2013 Mazda Demio 15C, Sport FWD (DE5FS)
  • 2014 Mazda Demio 15C, Sport FWD (DE5FS)
