TEIN Street Advance Z Coilover Kit - 2008-2009 Mitsubishi Outlander MS, G AWD (CW6W)

TEIN Street Advance Z Coilover Kit - 2008-2009 Mitsubishi Outlander MS, G AWD (CW6W)

GSR98-91SS2

Out of stock

$921.50 USD
$970.00 USD $921.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a performance suspension upgrade designed for the 2008-2009 Mitsubishi Outlander MS and G AWD models. Engineered to enhance handling and stance, these coilovers feature a stiffer yet comfortable ride with an aggressive appearance. Equipped with 16-way adjustable damping settings, they allow precise tuning for various driving conditions, providing noticeable feedback and improved control. The coilovers are constructed to deliver ample shock travel even at lower ride heights, ensuring consistent performance and durability. Their robust design and adjustable features make them suitable for drivers seeking a balance between street comfort and sporty handling.

These coilovers are specifically designed to fit 2008-2009 Mitsubishi Outlander MS and G AWD models with the CW6W chassis code. They serve as a direct replacement for the factory suspension, offering enhanced performance for street driving and spirited handling. Installation involves bolt-on replacement of existing components, with no additional modifications required. The kit includes the coilover units and necessary hardware for installation. Ideal for enthusiasts looking to improve vehicle stance, cornering, and overall ride quality, these coilovers provide a versatile upgrade for daily driving and spirited street use.

Overview

TEIN Street Advance Z Coilovers for your 2008-2009 Mitsubishi Outlander MS, G AWD (CW6W) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

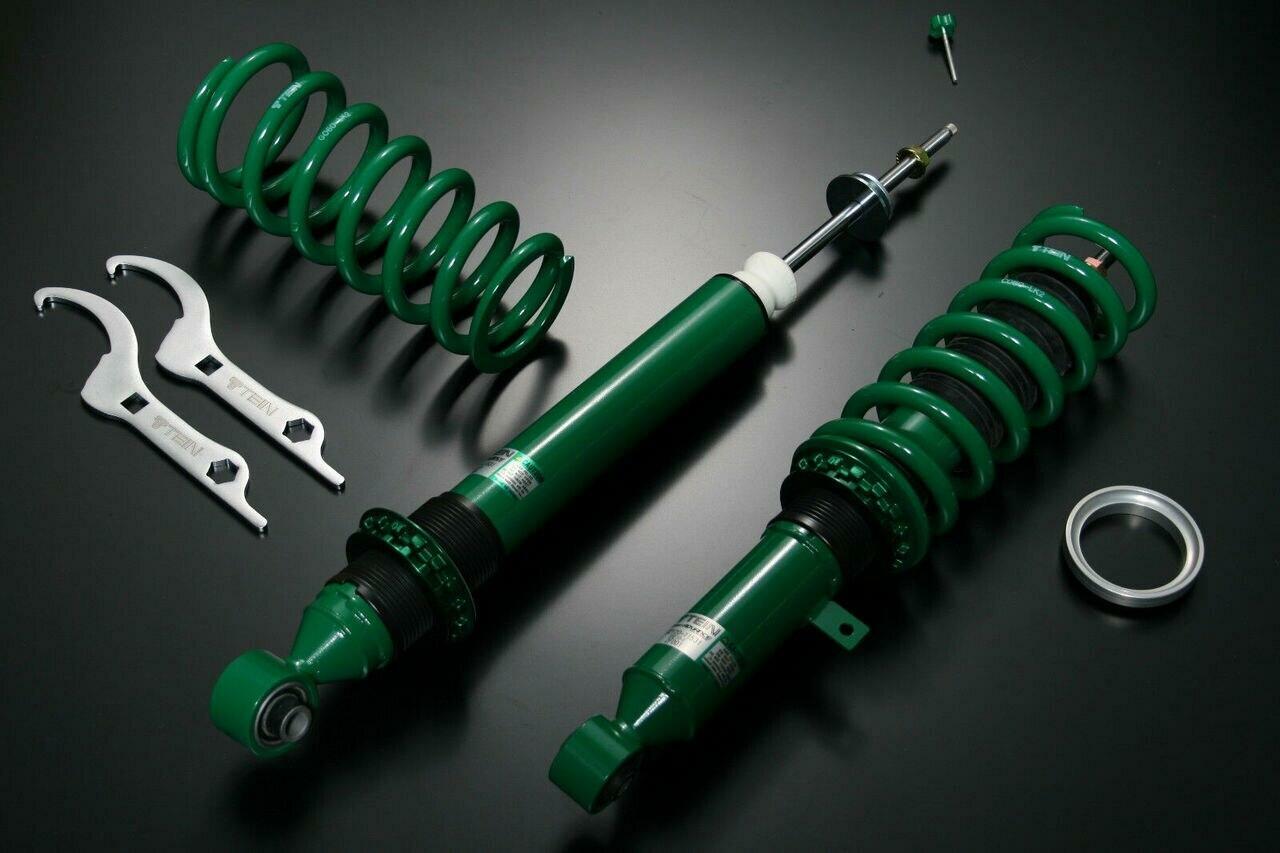

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSR98-91SS2
Part Name Street Advance Z Coilovers
Vehicle 2008-2009 Mitsubishi Outlander MS, G AWD (CW6W)
Chassis CW6W
Engine 3000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 5 Kg/mm (279.99 lbs/in)
Spring Rates - Rear 4 Kg/mm (223.99 lbs/in)
Ride Height Range - Front -1.5 to -3.3
Ride Height Range - Rear -1.1 to -2.8
EDFC Compatible No
Notes RR: Shock absorber needs to be detached from vehicle, when adjusting damping force. OE Spring Insulator needs to be modified.
Vehicle Fitment
  • 2008 Mitsubishi Outlander MS, G AWD (CW6W)
  • 2009 Mitsubishi Outlander MS, G AWD (CW6W)
