TEIN Street Advance Z Coilover Kit - 2008-2012 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)

TEIN Street Advance Z Coilover Kit - 2008-2012 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)

GSSA4-91SS2

Out of stock

$864.50 USD
$910.00 USD $864.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a high-performance suspension upgrade designed for the 2008-2012 Subaru Forester models, including 2.0X, 2.0XS, and 2.0XT AWD variants. Engineered to enhance handling and stance, these coilovers feature a stiffer yet comfortable ride with aggressive aesthetics. They incorporate 16-way adjustable damping settings, allowing precise tuning for different driving conditions and preferences. The coilovers are constructed to provide ample shock travel even at lower ride heights, ensuring improved stability and responsiveness. Their design emphasizes durability and performance, making them suitable for spirited street driving and daily use.

These coilovers are a direct fit for 2008-2012 Subaru Forester models with the SH5 chassis code, compatible with 2.0-liter turbocharged and naturally aspirated engines. They are intended for drivers seeking improved handling, a customizable ride height, and a more aggressive stance. Installation involves a bolt-on process, replacing the factory suspension components without extensive modifications. The kit includes the coilover units and necessary mounting hardware. Ideal for street enthusiasts and those looking to upgrade their Forester’s suspension, these coilovers deliver enhanced control, stability, and a tailored driving experience.

Overview

TEIN Street Advance Z Coilovers for your 2008-2012 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

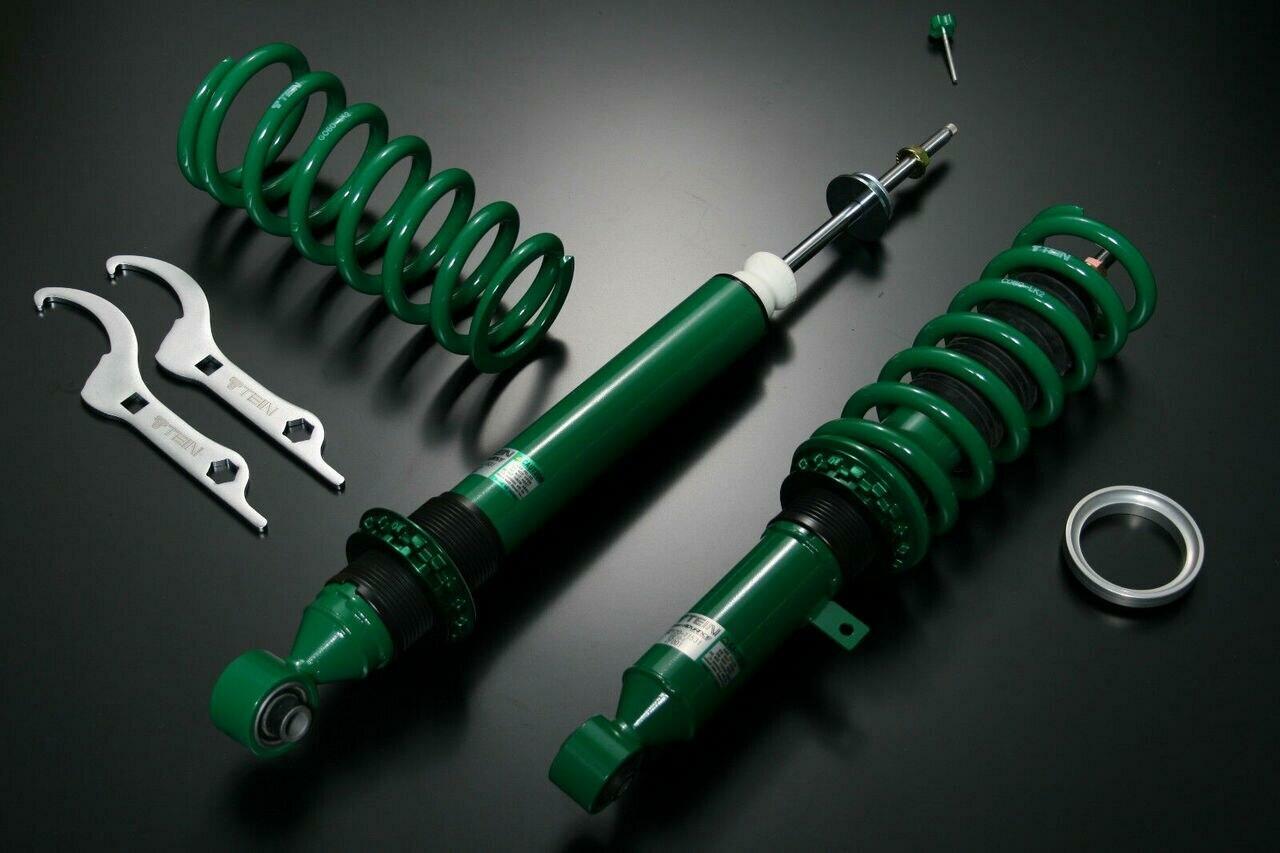

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSSA4-91SS2
Part Name Street Advance Z Coilovers
Vehicle 2008-2012 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)
Chassis SH5
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 5 Kg/mm (279.99 lbs/in)
Spring Rates - Rear 4 Kg/mm (223.99 lbs/in)
Ride Height Range - Front -0.9 to -3.0
Ride Height Range - Rear -1.1 to -3.1
EDFC Compatible Yes
Vehicle Fitment
  • 2008 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)
  • 2009 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)
  • 2010 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)
  • 2011 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)
  • 2012 Subaru Forester 2.0X, 2.0XS, 2.0XT AWD (SH5)
