• TEIN Street Advance Z Coilover Kit - 2012-2016 Mazda CX-5 XD, XD L Package FWD (KE2FW)
1 1

TEIN Street Advance Z Coilover Kit - 2012-2016 Mazda CX-5 XD, XD L Package FWD (KE2FW)

TEIN Street Advance Z Coilover Kit - 2012-2016 Mazda CX-5 XD, XD L Package FWD (KE2FW)

GSMB2-91AS3

Out of stock

$1,035.50 USD
$1,090.00 USD $1,035.50 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a performance suspension upgrade designed for the 2012-2016 Mazda CX-5 XD and XD L Package FWD models. Engineered to enhance handling and stance, these coilovers feature a stiffer setup that balances comfort with aggressive driving dynamics. The kit offers 16-way adjustable damping, allowing precise tuning to suit street driving preferences. Constructed with high-quality materials, these coilovers provide ample shock travel even at lowered ride heights, ensuring improved stability and responsiveness. The ultra-stroke design maintains shock absorption performance across various driving conditions, making them suitable for enthusiasts seeking a more engaging driving experience.

Designed specifically for 2012-2016 Mazda CX-5 models with the XD engine and FWD configuration, these coilovers are a direct bolt-on upgrade that replaces the factory suspension components. They are ideal for street performance, daily driving, and spirited driving scenarios, offering customizable damping for optimal comfort and control. Installation involves replacing the existing coil springs and shocks, with no additional modifications required. The kit includes all necessary components for a complete suspension upgrade, providing a noticeable improvement in handling, stance, and ride quality for Mazda CX-5 owners looking to elevate their vehicle's performance.

Overview

TEIN Street Advance Z Coilovers for your 2012-2016 Mazda CX-5 XD, XD L Package FWD (KE2FW) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

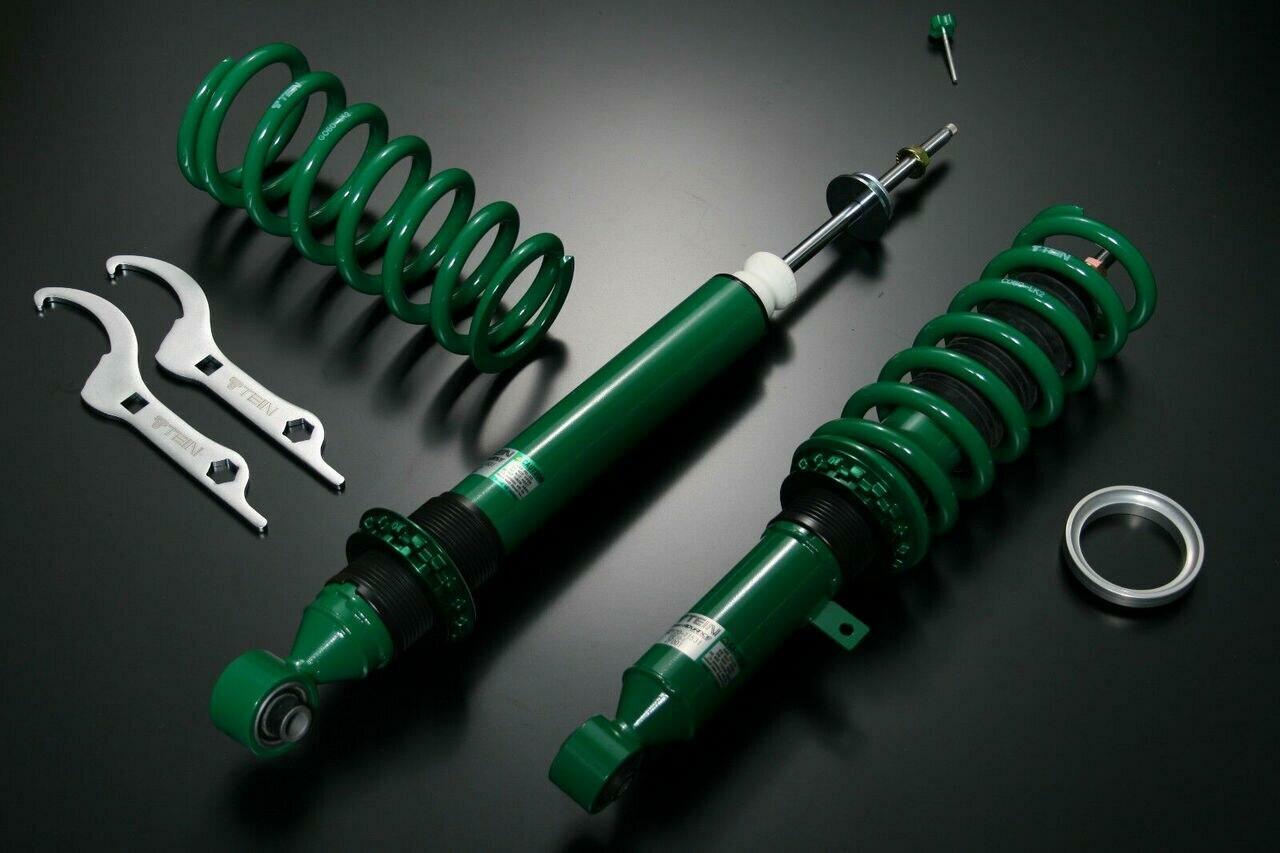

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSMB2-91AS3
Part Name Street Advance Z Coilovers
Vehicle 2012-2016 Mazda CX-5 XD, XD L Package FWD (KE2FW)
Chassis KE2FW
Engine 2200
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear Rubber Reinforced
Spring Rates - Front 6 Kg/mm (335.98 lbs/in)
Spring Rates - Rear 4.5 Kg/mm (251.99 lbs/in)
Ride Height Range - Front -1.2 to -2.6
Ride Height Range - Rear -1.2 to -2.4
EDFC Compatible Yes
Vehicle Fitment
  • 2012 Mazda CX-5 XD, XD L Package FWD (KE2FW)
  • 2013 Mazda CX-5 XD, XD L Package FWD (KE2FW)
  • 2014 Mazda CX-5 XD, XD L Package FWD (KE2FW)
  • 2015 Mazda CX-5 XD, XD L Package FWD (KE2FW)
  • 2016 Mazda CX-5 XD, XD L Package FWD (KE2FW)
