TEIN Street Advance Z Coilover Kit - 2014-2018 Subaru Forester AWD (SJG)

TEIN Street Advance Z Coilover Kit - 2014-2018 Subaru Forester AWD (SJG)

GSSA2-91SS2

Out of stock

$893.00 USD
$940.00 USD $893.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Tein Street Advance Z Coilover Kit is a performance suspension upgrade designed specifically for the 2014-2018 Subaru Forester AWD (SJG). Engineered to enhance handling and stance, these coilovers feature a stiffer setup combined with a comfortable ride quality. They incorporate 16-way damping force adjustment, allowing drivers to fine-tune the suspension response for a more aggressive or comfortable driving experience. Constructed with durable materials and coated with ZT for corrosion resistance, these coilovers deliver reliable performance and consistent damping. The design ensures ample shock travel even at lowered ride heights, making them suitable for spirited street driving and light performance use.

These coilovers are a direct bolt-on upgrade for Subaru Forester models from 2014 to 2018 with AWD (SJG chassis). They are intended for enthusiasts seeking improved handling, stance, and ride quality on the street. Installation involves replacing the factory suspension components with these coilovers, which include all necessary mounting hardware. The adjustable damping allows for customization based on driving style and conditions. Suitable for daily driving and spirited street use, these coilovers provide a balanced combination of performance, comfort, and durability for Subaru Forester owners looking to upgrade their suspension system.

Overview

TEIN Street Advance Z Coilovers for your 2014-2018 Subaru Forester AWD (SJG) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

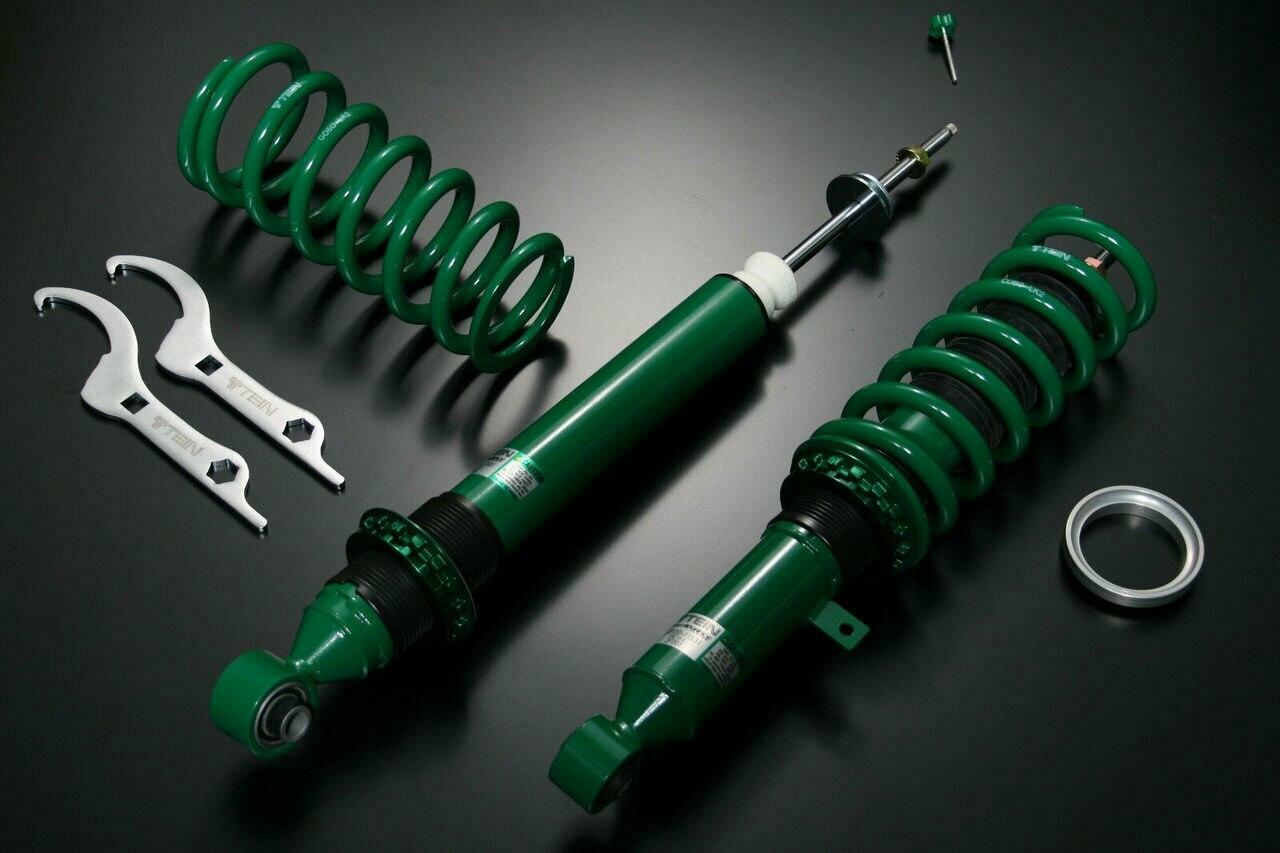

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
Part Number GSSA2-91SS2
Part Name Street Advance Z Coilovers
Vehicle 2014-2018 Subaru Forester AWD (SJG)
Chassis SJG
Engine 2000
Damping Adjustment 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 5 Kg/mm (279.99 lbs/in)
Spring Rates - Rear 4 Kg/mm (223.99 lbs/in)
Ride Height Range - Front -1.1 to -3.0
Ride Height Range - Rear -1.3 to -3.5
EDFC Compatible Yes
Vehicle Fitment
  • 2014 Subaru Forester AWD (SJG)
  • 2015 Subaru Forester AWD (SJG)
  • 2016 Subaru Forester AWD (SJG)
  • 2017 Subaru Forester AWD (SJG)
  • 2018 Subaru Forester AWD (SJG)
