| Year | Make | Model |
|---|---|---|
| 2014 - 2016 | Mazda | 3 i Grand Touring |
| 2014 - 2016 | Mazda | 3 I Sport |
| 2014 - 2015 | Mazda | 3 i SV |
| 2014 - 2016 | Mazda | 3 I Touring |
| 2017 - 2018 | Mazda | 3 Sport |
| 2017 - 2018 | Mazda | 3 Touring |
1
/
of
1

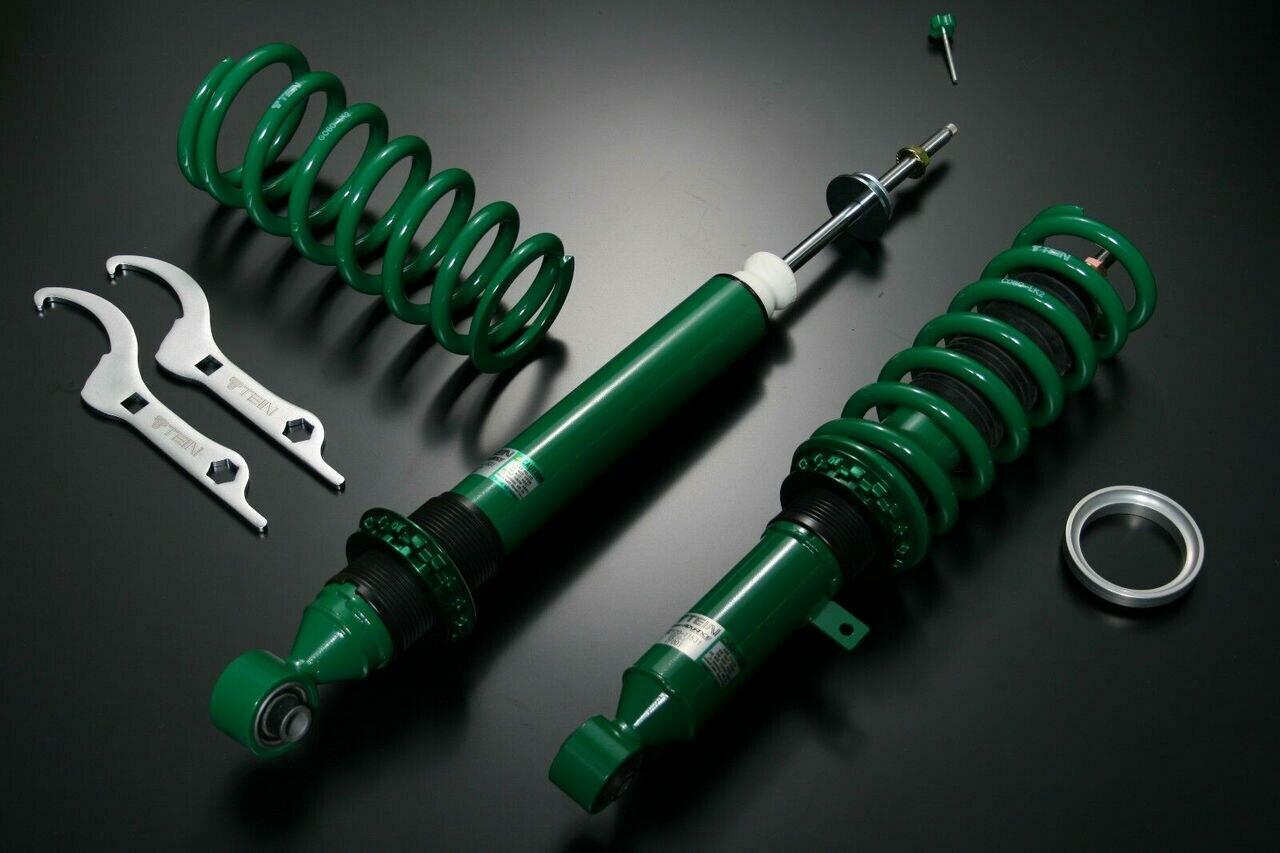

TEIN Street Advance Z Coilover Kit - 2014-2024 Mazda Axela Sport XD FWD (BM2FS)
TEIN Street Advance Z Coilover Kit - 2014-2024 Mazda Axela Sport XD FWD (BM2FS)
SKU:GSMA8-91AS3
In stock
Regular price
$844.80 USD
Regular price
$960.00 USD
Sale price
$844.80 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
TEIN Street Advance Z Coilovers for your 2014-2024 Mazda Axela Sport XD FWD (BM2FS) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.
Standard Features
- Steel Construction
- Twin Tube internal construction
- Larger piston diameter for strut type front and rear (22mm)
- 16-way Damping adjustment with over 200% increase in damping force change.*
- Ride Height adjustable via spring seat
- Powder coated damper body
- Non-welded ZT coated Adjustment Tube
- Full-Length Dust Boots
- 1-piece Aluminum Spring Seat with Delrin Thrust Washer
- Available for Overhaul
- 1-year Manufacturers Defect Warranty*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.
Contents of Damper Kit
- 4 TEIN Coilover Shocks
- 4 TEIN Coilover Springs (no sag version)**
- 4 Rubber Bump Stops
- 2 Hook Spanners
- 4 Spring Seats
- 4 Spring Locks
- 4 Dust Covers(some kits reuse stock dust covers)***
- 4 Delrin Thrust Washers
- 1 TEIN Sticker Sheet****
- 1 Instruction Manual**Some applications include helper springs***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
| Part Number | GSMA8-91AS3 |
| Part Name | Street Advance Z Coilovers |
| Vehicle | 2014-2024 Mazda Axela Sport XD FWD (BM2FS) |
| Chassis | BM2FS |
| Engine | 2200 |
| Damping Adjustment | 1-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Ride-Height Adjustable - Front | No |
| Ride-Height Adjustable - Rear | No |
| Upper Mounts - Front | OEM |
| Upper Mounts - Rear | Rubber Reinforced |
| Spring Rates - Front | 5 Kg/mm (279.99 lbs/in) |
| Spring Rates - Rear | 5 Kg/mm (279.99 lbs/in) |
| Ride Height Range - Front | -1.1 to -3.0 |
| Ride Height Range - Rear | -1.4 to -2.8 |
| EDFC Compatible | Yes |
Vehicle Fitment
- 2014 Mazda Axela Sport XD FWD (BM2FS)
- 2015 Mazda Axela Sport XD FWD (BM2FS)
- 2016 Mazda Axela Sport XD FWD (BM2FS)
- 2017 Mazda Axela Sport XD FWD (BM2FS)
- 2018 Mazda Axela Sport XD FWD (BM2FS)
- 2019 Mazda Axela Sport XD FWD (BM2FS)
- 2020 Mazda Axela Sport XD FWD (BM2FS)
- 2021 Mazda Axela Sport XD FWD (BM2FS)
- 2022 Mazda Axela Sport XD FWD (BM2FS)
- 2023 Mazda Axela Sport XD FWD (BM2FS)
- 2024 Mazda Axela Sport XD FWD (BM2FS)
